8968-0 Briggs and Stratton Portable Generator A2400, 2,250 Watt

Model: 8968-0

Back To Assemblies

Save Part Not Listed?
product name

Cradle

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
PANEL, End BS-73011
...
3
SEAL 1.181 ID 1.850 BS-7073008YP
...
5
(C) DECAL CHOKE BS-7073003YP
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, 20A,120V BS-68759GS
...
8
BREAKER, Circuit - 20 Amps BS-66819
...
9
BREAKER, Circuit - 10 d-c Amperes BS-66820
...
10
RECEPTACLE. Battery Charge - 12 Volts d-c, 10 Amps BS-6720730
...
12
VALVE, FUEL SHUT OFF BS-84010414
...
13
SCREW, Machine No. 10-32 x 1/2" BS-23964
...
14
COVER, Handle BS-66450
...
15
TANK, Fuel - 2.34 U.S. Gallons BS-69661
...
16
CAP, Fuel Tank Filler BS-69658
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, BTTRY CHARGE BS-71394GS
...
20
DECAL - Receptacle Panel BS-73007B
...
21
CRADLE, Engine End BS-72275
...
22
(C) SHIELD DRIVE OFZ BS-7072276YP
...
23
PLATE, Serial BS-67430E
...
24
RIVET, Serial Plate BS-25832
...
26
DECAL - Caution!/Hot! BS-66824
...
27
DECAL - Data BS-73036B
...
29
SCREW (Crimptite) - 1/4"-20 x 3/8" BS-58441
...
30
RIVET - Black (Anodized) BS-66831
...
31
DECAL - Spark Arrest Muffler BS-29084
...
32
FILTER, Fuel BS-70630
...
33
SHIELD, Fuel Tank Heat BS-74743
...
35
SCREW, Machine - M5-0.80 x 12mm BS-52749
...
36
ROD, Governor Control BS-593696
...
37
WASHER, #10 Ext. Shakeproof BS-23762GS
...
38
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
39
DECAL - Fuel Shutoff BS-73054
...
40
LIGHT, Indicator (LED) BS-71381
...
MANUAL-OPERATOR BS-73059GS

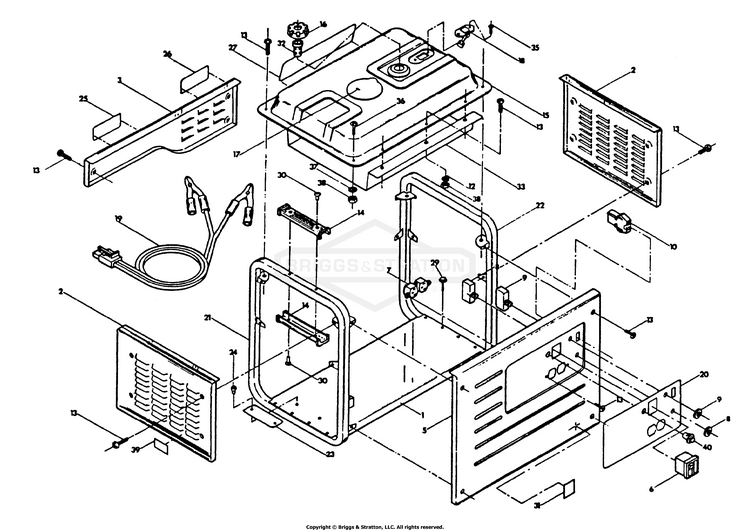

Schematic Image Zoomed
