8968-0 Briggs and Stratton Portable Generator A2400, 2,250 Watt

Model: 8968-0

Back To Assemblies

Save Part Not Listed?
product name

Generator

...
...
1
ENGINE - Briggs & Stratton 5 H.P. BS-71393
...
2
CLAMP, Fuel Line BS-48031C
...
3
BRACKET, Exhaust Muffler Support BS-73019
...
4
TAPTITE, M5-0.8 X 8 BS-66849BGS
...
5
MUFFLER, Exhaust - Spark Arrestor Type BS-72281
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Socket Head - 3/8"-16 x 1/2" BS-73032
...
8
CAPSCREW, Hex Head - M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel - 20" long BS-47662F
...
9B
HOSE, Fuel - 17" long BS-47662AN
...
9C
HOSE, Fuel - 3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
SCREW, Pan Head - 5/16"-18 x 1-3/4" BS-71752
...
12
HTSHLD, MFFLR BS-72292GS
...
13
GROMMET, RUBBER BS-67022GS
...
14
HOUSING, Engine Adapter BS-66365GS
...
15
CAPSCREW, Hex Head - 5/16"-18 x 3/4" BS-22336
...
16
FAN, Cooling BS-66389
...
17
ROTOR BS-72064
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
HHCS, 5/16-24 X 6 3/8 BS-36180GS
...
21
STATOR BS-72061
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator BS-66449B
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
WASHER, Lock - M10 BS-46526
...
30
DECAL, ProCut Z Text BS-5022241
...
31
HHCS, M5-0.8 X 20 BS-52619GS
...
32
WASHER, Serrated - M5 BS-67444
...
33
NUT, M5 x 0.8 BS-51716GS
...
34
NUT, Wing - M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat (Special) - M8 BS-67451
...
37
CAPSCREW, Socket Head - 1/4"-20 x 1/2" BS-39974
...
38
WASHER, Lock BS-22129GS
...
39
WASHER, Flat - M8 BS-49610
...
40
WASHER, M5 Lock BS-49226GS
...
41
FILTER, FUEL, 150 MICRN BS-68740GS
...
42
SCREW BS-66849AGS
...
43
WASHER, Rivet, 3/16 BS-1910531SM
...
44
SCREW BS-70644GS
...
45
NUT, Hex - 1/4"-20mm BS-22127
...
46
SCREW BS-43146GS
...
47
LINER, Port BS-60211
...
48
VALVE Fuel Shutoff BS-71384
...
49
FITTING, Barbed - 1/4" BS-28414

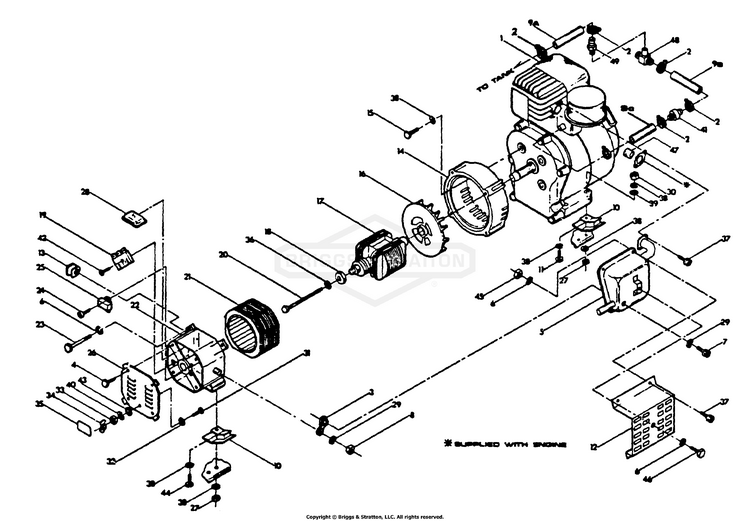

Schematic Image Zoomed
