8967-2 Briggs and Stratton Portable Generator A1400, 1,350 Watt

Model: 8967-2

Save Part Not Listed?
product name

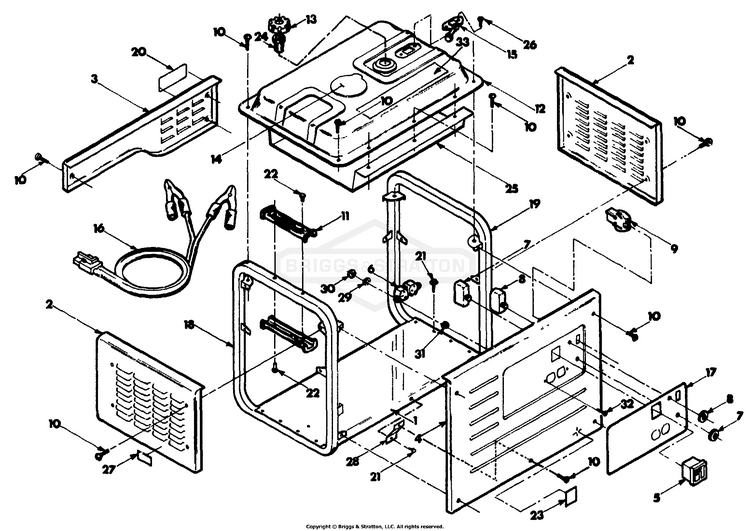

Cradle No. 75446

...
...
1
SWIVEL BRAKE BS-7073015YP
...
2
PANEL, End BS-73010
...
3
SEAL 1.181 ID 1.850 BS-7073008YP
...
4
(C) ROD CVT SHIFT BS-7073001YP
...
5
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
6
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
7
BREAKER, Circuit - 12 amps BS-66861
...
8
BREAKER, Circuit - 10 d-c amps BS-66820
...
9
RECEPTACLE - 12 volts d-c, 10A. BS-6720730
...
10
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
11
COVER, Handle BS-66450
...
12
TANK, Fuel - 2.34 U.S. Gallons BS-69661
...
13
CAP, Fuel Tank Filler BS-69658
...
14
CVR, ACC, SPARKPLUG BS-64680BGS
...
15
INDICATOR, Fuel Level BS-66391B
...
16
CABLE, BTTRY CHARGE BS-71394GS
...
17
DECAL - Receptacle Panel BS-73007A
...
18
CRADLE, Engine End BS-72273
...
19
CRADLE, Generator End BS-72274
...
20
DECAL - "Caution!-Hot!" BS-66824
...
21
SCREW - 1/4"-20 x 1/2" BS-58442
...
22
RIVET (Black Anodized) BS-66831
...
23
DECAL - Spark Arrest Muffler BS-29084
...
24
FILTER, Fuel BS-70630
...
25
SHIELD, Fuel Tank Heat BS-74743
...
26
SCREW - M5-0.80 x 12mm BS-52749
...
27
DECAL - Fuel Shutoff BS-73054
...
28
(TT) SEAL OIL 16220 BS-7073745YP
...
29
LOCKWASHER - No. 8 BS-22264
...
30
NUT, #8-32 BS-22471GS
...
31
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
32
SCREW BS-797483
...
33
DECAL - Portable Information BS-73036

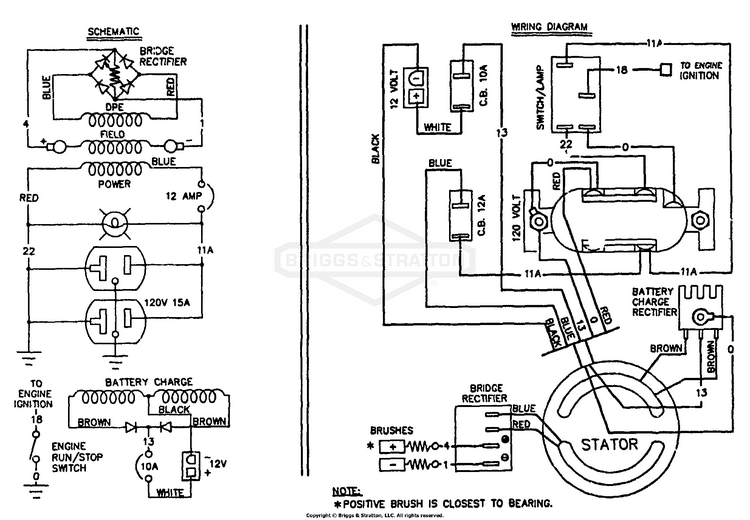

Electrical Schematic & Wiring Diagram No. 74112

...

No Parts Available for this Schematic

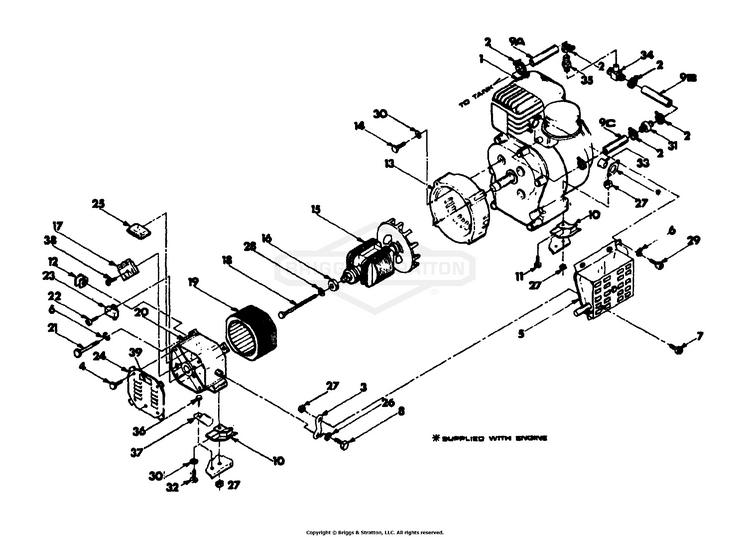

Generator No. 75447

...
...
1
(C) BRACE DRAWBAR BS-7072270YP
...
2
CLAMP, Fuel Line BS-48031C
...
3
HUB PULLEY TAPER LO BS-7074917YP
...
4
TAPTITE, M5-0.8 x 10 LG. BS-74908GS
...
5
MUFFLER, Spark Arrestor Type BS-72281
...
6
CAP BS-5022097SM
...
7
HHCS, M8 - 1.25 x 12 BS-51754GS
...
8
CAPSCREW, Hex Head M10-1.50 x 16mm BS-51755
...
9A
HOSE, Fuel - 17" long BS-47662AN
...
9B
HOSE, Fuel - 17" long BS-47662AN
...
9C
HOSE, Fuel - 3" long BS-47662B
...
10
MOUNT, Vibration 45°. BS-70642GS
...
11
HHCS, M8 - 1.25 x 35 BS-39414GS
...
12
GROMMET, RUBBER BS-67022GS
...
13
HSNG, ENG, FML BS-66365FGS
...
14
CAPSCREW, Hex Head 5/16"-18 x 3/4" BS-22336
...
15
ROTOR ASSY BS-74712
...
16
BEARING BS-65791GS
...
17
RECTIFIER, BATTERY CHARGE BS-65795GS
...
18
HHCS, 5/16-24 X 5 1/2 BS-75444GS
...
19
STIFFENER DECK 48 H BS-7074705YP
...
20
CARRIER, Rear Bearing BS-66825
...
21
BOLT, Stator - M6-1.00 x 60mm BS-66449H
...
22
HHCS, M5-0.8 X 16 BS-49815GS
...
23
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
24
COVER, Bearing Carrier BS-67025
...
25
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
26
LOCKWASHER - M10 BS-46526
...
27
NUT, Locking Hex M8 - 1.25 BS-52858GS
...
28
FLATWASHER (Special) - M8 BS-67451
...
29
CAPSCREW, Socket Head 1/4"-20 x 1/2" BS-39974
...
30
WASHER, Lock BS-22129GS
...
31
FILTER, FUEL, 150 MICRN BS-68740GS
...
32
SCREW BS-70644GS
...
33
LINER, Port BS-73049
...
34
VALVE, Fuel Shutoff BS-71384
...
35
FITTING, Barbed - 1/4" BS-28414
...
36
SCREW (Taptite) - No. 10 x 3/8" BS-24489
...
37
LUG, Grounding BS-25433
...
38
SCREW BS-66849AGS
...
39
DECAL, Neutral Ground BS-74728GS
