8954-0 Briggs and Stratton Portable Generator H4000, 4,000 Watt

Model: 8954-0

Save Part Not Listed?
product name

A-C Generator Model No. 8954-0

...
...
1
BOLT, Stator BS-44395H
...
2
HOUSING, Receptacle BS-22694GS
...
3
RECTIFIER, Bridge BS-28293
...
4
SCREW (Plastite)- No. 4 x 3/8" BS-59636
...
5
ROTOR ASSY BS-58885B
...
6
BRUSH & LUG ASSY (Red) BS-59606
...
BRUSH & LUG ASSY (Neutral) BS-59606A
...
7
BEARING, Rotor BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
FAN, Cooling BS-58888
...
10
ROTOR & FAN ASSY BS-71821
...
11
STATOR ASSY BS-71823
...
12
BUSHING, Snap- 0.87" diameter BS-23484D
...
13
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, Engine Adapter BS-60220F
...
16
CAP BS-5022097SM
...
17
TRIM, Rubber - 3-1/2" long BS-61876
...
18
SCREW (Taptite)- No. 10-32 x 1/2" BS-24413
...
19
WSHR, BRNG SEAL, FELT BS-60221GS
...
20
WHEEL AXLE BS-5045992SM
...
21
WASHER, #10 Ext. Shakeproof BS-23762GS

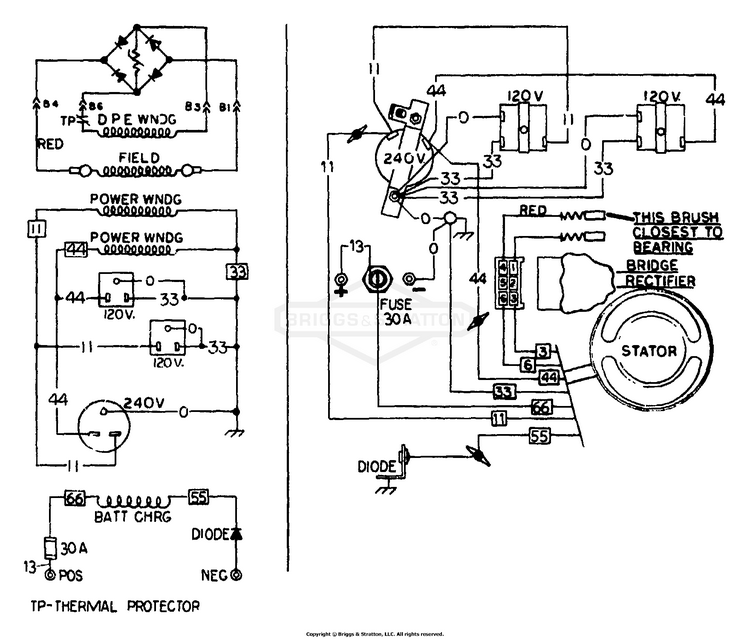

Electrical Schematic And Wiring Diagram Model No. 8954-0

...

No Parts Available for this Schematic

Sheet Metal Model No. 8954-0

...
...
1
ENGINE ASSY BS-69647
...
3
GSKT, EXHAUST BS-58894GS
...
4
CAPSCREW, Socket Head BS-36781
...
5
MUFFLER, Exhaust Include items 6 & 7 BS-58195
...
6
SCREW (Sheet metal)- No. 8-32 x 3/8" BS-22774
...
7
SCREEN, Spark Arrestor BS-59604
...
8
SPRING, Vibration BS-23594
...
9
SCREW (Taptite)- 5/16"-18 x 1/2" BS-24910
...
10
SCREW (Taptite)- 3/8"-16 x 3/4" BS-59637
...
11
BASE, Mounting BS-71814
...
12
WRAPPER, Lower Generator BS-58876A
...
13
PANEL, End BS-63112B
...
14
RECEPTACLE- 120 volts BS-58888
...
15
BAFFLE, Generator End (RH) BS-58887B
...
16
BAFFLE, Generator End (LH) BS-588870A
...
17
ADAPTER, Sheet Metal BS-60209
...
18
WRAPPER, Generator Upper BS-58875B
...
19
GUARD, Exhaust Muffler BS-58884
...
20
RECEPTACLE- 120/240 volts a-c BS-58889
...
21
SCREW (Plastite)-No.8 x 3/8" BS-59635
...
22
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
23
WHEEL, 12 X 8.5 BS-5023364YP
...
24
NUT, Hex - No. 6-32 BS-22188
...
26
FITTING 3/4-16 TO .5 PUSH-ON BS-5022389
...
27
TERMINAL, BTTRY CHG, RED BS-25367GS
...
28
TERMINAL, Battery Charge (Black) BS-25368
...
29
HARNESS MAIN LTH 16 BS-7026668YP
...
30
Holder, Fuse BS-191302GS
...
31
SCREW (Plastite)- 1/4" x 1" BS-59634
...
MANUAL-OPERATOR BS-71824GS
...
CABLE, Battery Charge BS-A25383
