8906-0 Briggs and Stratton Portable Generator L2400, 2,250 Watt

Model: 8906-0

Back To Assemblies

Save Part Not Listed?
product name

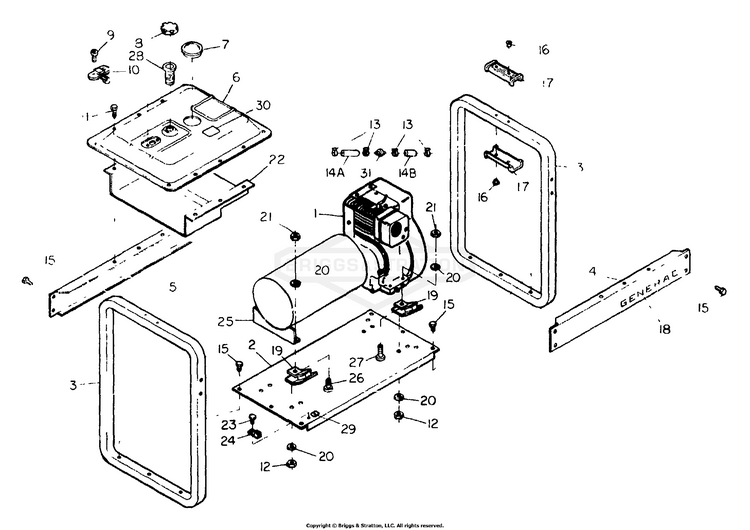

Mounting Base No. 70649

...
...
1
ENGINE- Briggs & Stratton 8 HP Manual Start BS-70632
...
2
BASE, Mounting BS-70635
...
3
LOOP, Cradle End BS-70637
...
4
SUPPORT, Fuel Tank - Right BS-70638A
...
5
SUPPORT, Fuel Tank - Left BS-70638
...
6
TANK, Fuel - 2.3 Gallons BS-69661
...
7
CVR, ACC, SPARKPLUG BS-64680BGS
...
8
CAP, Fuel Tank BS-69658
...
9
GAUGE, Fuel Level BS-66391B
...
10
SCREW - M5-0.80 x 12mm BS-52749
...
11
CRIMPTITE, 10-24 x 1/2 BS-56893GS
...
12
SKID PLATE BS-5045771B
...
13
CLAMP, Fuel Hose - 1/4" BS-48031C
...
14A
HOSE, Fuel - 7" long BS-47662BA
...
14B
HOSE, Fuel - 9" long BS-47662E
...
15
SCREW BS-58442
...
16
RIVET- 4mm BS-66831
...
17
HANDLE- Plastic BS-66450
...
18
DECAL- "GENERAC" Logo BS-48506
...
19
MOUNT, Vibration 45°. BS-70642GS
...
20
WASHER, Lock BS-22129GS
...
21
NUT, 5/16-18 HEX BS-5025032SM
...
22
SHIELD, Heat BS-66880
...
23
SCREW BS-24489
...
24
LUG, Grounding BS-25433
...
25
SUPPORT, Generator Rear BS-70634
...
26
SCREW, Pan Head - 5/16"-18 x 3/4" BS-64183
...
27
PPHMS, 5/16-18 X 1.50 BS-70653GS
...
28
STRAINER, Fuel BS-70630
...
29
DECAL, GRD LUG BS-67210AGS
...
30
DECAL- Fuel Caution BS-69674
...
31
FILTER, FUEL, 150 MICRN BS-68740GS
