8906-0 Briggs and Stratton Portable Generator L2400, 2,250 Watt

Model: 8906-0

Back To Assemblies

Save Part Not Listed?
product name

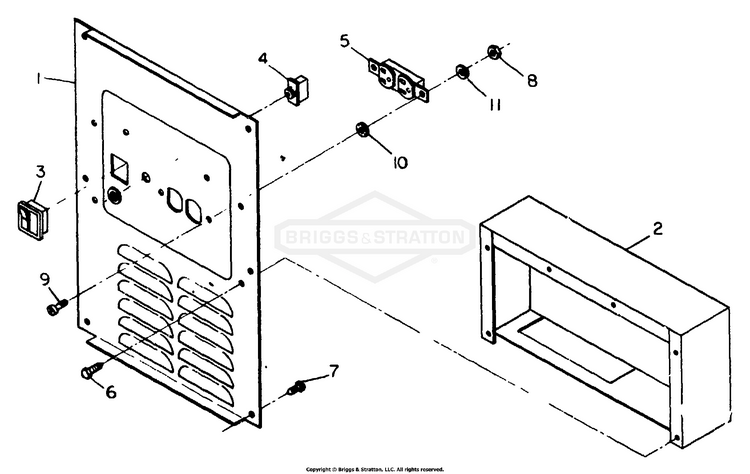

Receptacle Panel No. 70648

...
...
1
PANEL, Receptacle (Silkscreened) L2400 BS-70646
...
2
PANEL, Back BS-68746C
...
3
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
4
BREAKER, Circuit - 20 ampere BS-66819
...
5
OUTLET, 20A,120V BS-68759GS
...
6
CRIMPTITE, #8-18X1/4L BS-63036GS
...
7
SCREW (Crimptite) - 1/4"-20 x 1/2" BS-69254
...
8
NUT, #8-32 BS-22471GS
...
9
SCREW BS-797483
...
10
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
11
WASHER, Lock - No. 8 BS-22264
