8905-0 Briggs and Stratton Portable Generator S4002, 4,000 Watt

Model: 8905-0

Back To Assemblies

Save Part Not Listed?
product name

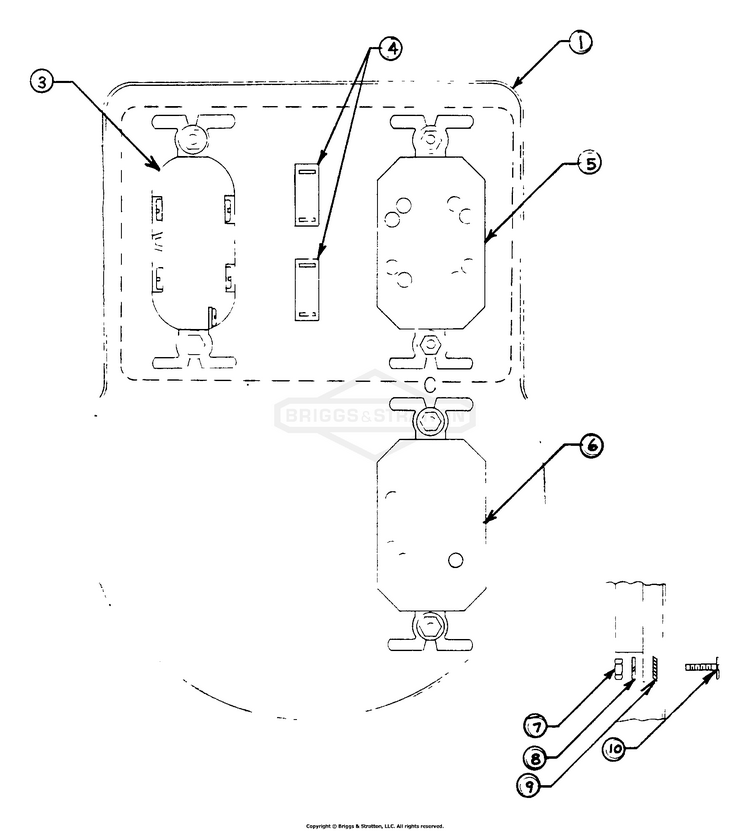

Receptacle Panel No. 69909

...
...
1
PANEL, Control (Silkscreened) BS-69901
...
3
OUTLET, 20A,120V BS-68759GS
...
4
BREAKER, Circuit- 120 Volts, 20 Ampere BS-66819
...
5
OUTLET, 120/240V Locking, 20A BS-68867GS
...
6
OUTLET-120V TL30A BS-705932
...
7
NUT, #8-32 BS-22471GS
...
8
WASHER, Lock- No.8 BS-22264
...
9
TIRE ASSM, 24X12.00-1 BS-5023365YP
...
10
SCREW BS-797483
...
PLUG, 250V, 30A (optional) - for use with item 5 BS-43438GS
...
PLUG, 125V 30A 3-Prong (optional) - for use with item 6 BS-100523GS
