8882-0 Briggs and Stratton Portable Generator S3000T, 3,000 Watt

Model: 8882-0

Back To Assemblies

Save Part Not Listed?
product name

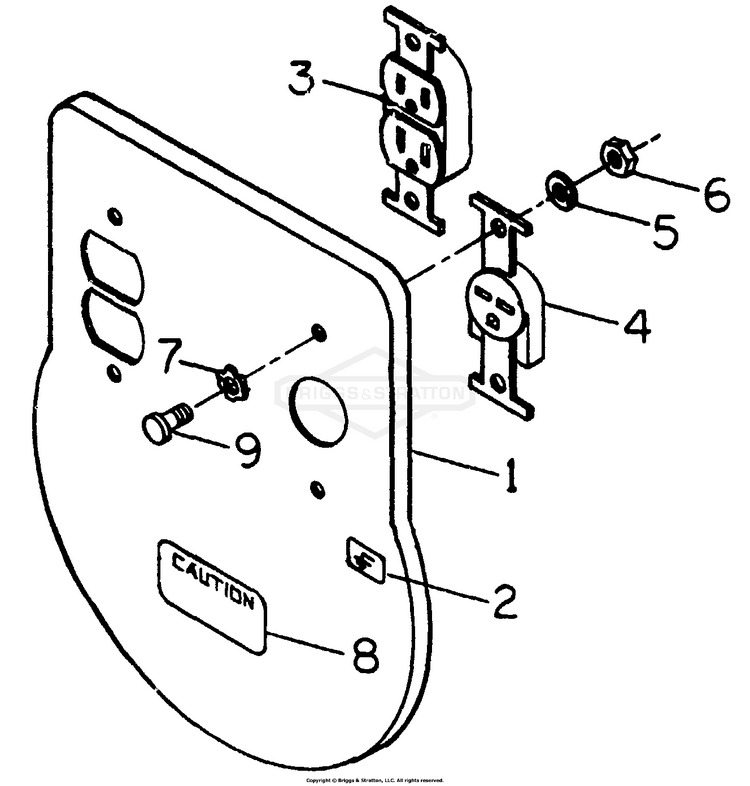

Control Panel No. 68721

...
...
1
PANEL, Receptacle BS-44328ZZ
...
2
DECAL, GRD BS-67210GS
...
3
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
4
RECEPTACLE - 240 volts a-c, 20 ampere BS-68735
...
5
WASHER, Lock - No. 8 BS-22264
...
6
NUT, #8-32 BS-22471GS
...
7
WASHER, Serrated - No. 8 BS-26579
...
8
DECAL - Caution! BS-39178
...
9
SCREW BS-797483
