8872-0 Briggs and Stratton Portable Generator S5000T, 5,000 Watt

Model: 8872-0

Save
 Part Not Listed?Part Not Listed?
product name

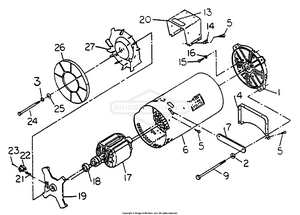

A-C Generator No. 68764

...
...
1
HOUSING, Engine Adapter BS-43873
...
2
CAP BS-5022097SM
...
3
WASHER, Lock BS-22129GS
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW BS-24489
...
6
STATOR BS-68730
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395B
...
13
DECAL - Data BS-68720B
...
14
LUG, Grounding BS-25433
...
15
WHEEL ASSEMBLY BS-84010756
...
16
LOCKWASHER, SPLIT 3/8 BS-703454
...
17
ROTOR BS-68794
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
NUT BS-5025254FS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN BS-44331

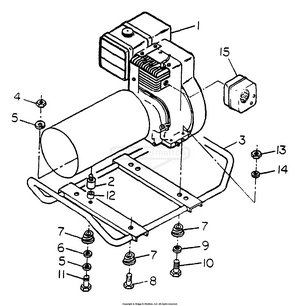

Cradle No. 68765

...
...
1
ENGINE- Briggs & Stratton 11 Horsepower BS-64895
...
2
DAMPENER, Vibration BS-40479
...
3
CRADLE BS-68395C
...
4
NUT, Hex - 1/4"-20 BS-22127
...
5
CAP BS-5022097SM
...
7
SPRING BS-23594
...
8
SCREW BS-24910
...
10
DECAL HYDROWALK (DD61) BS-5022531
...
11
Decal, UltraBelt, 36 BS-5022507
...
12
SPACER - 5/8" long BS-50396
...
13
NUT, 5/16 - 18 BS-22259GS
...
14
WASHER, Lock BS-22129GS
...
15
MUFFLER, Exhaust BS-65154

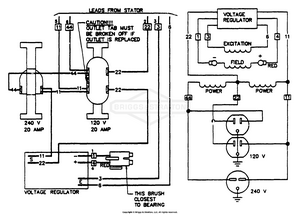

Electrical Schematic & Wiring Diagram No. 68761

...

No Parts Available for this Schematic

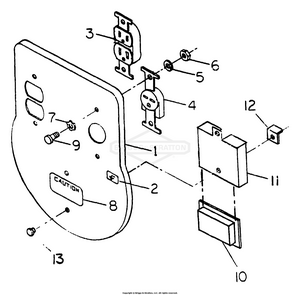

Receptacle Panel No. 68763

...
...
1
PANEL, Receptacle BS-68733A
...
2
DECAL, GRD BS-67210GS
...
3
OUTLET, 20A,120V BS-68759GS
...
4
RECEPTACLE - 240 volts, 20 ampere BS-68735
...
5
WASHER, Lock - No. 8 BS-22264
...
6
NUT, #8-32 BS-22471GS
...
7
WASHER, Serrated - No. 8 BS-26759
...
8
DECAL - Caution BS-39178
...
9
SCREW BS-797483
...
10
REGULATOR, VOLT BS-67107GS
...
11
BRACKET, Voltage Regulator BS-68795
...
12
HOLDDOWN, Voltage Regulator BS-68796
...
13
RIVET, Pop - 1/8" BS-36261
...
...
...
