8870-0 Briggs and Stratton Portable Generator 4,000 Watt

Model: 8870-0

Save Part Not Listed?

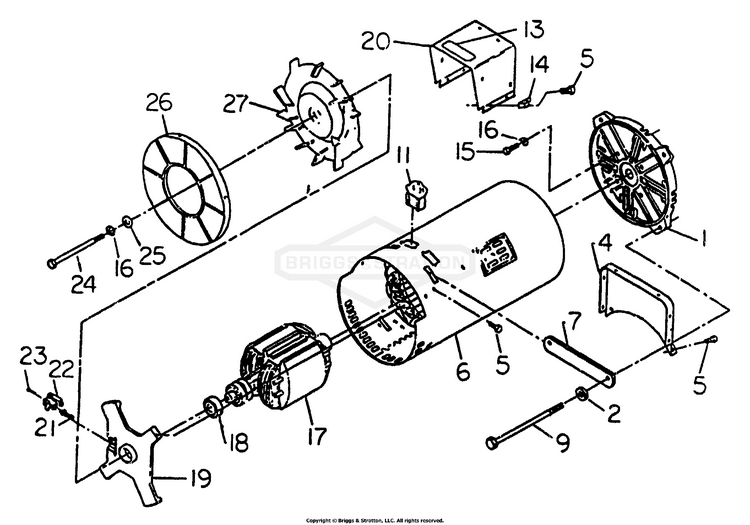

AC Generator

HOUSING, Engine Adapter BS-60220F

CAP BS-5022097SM

SCREW (Taptite) - No. 10-32 x 3/8" BS-24489

STATOR ASSEMBLY BS-68703

BAR, Stator Bolt BS-44338

BOLT, Stator BS-44395A

RECTIFIER, Bridge BS-28293

DECAL - Data BS-68720

LUG, Ground BS-25433

CAPSCREW, Hex Head- 5/16"-24 x 3/4" BS-22336

WASHER, Lock BS-22129GS

ROTOR ASSEMBLY BS-68397

BEARING, Rotor BS-24049

CARRIER, Bearing BS-44943

ASSY, BRUSH BS-A24044AGS

HLDR, BRUSH, UNIV BS-23877DGS

PRHMS, 6-32 x 1/4 SEMS BS-25105GS

SCREW BS-24421GS

Washer, .34 x 1 x 10 BS-50190GS

CVR, FAN, PLSTC BS-44357GS

FAN BS-44331

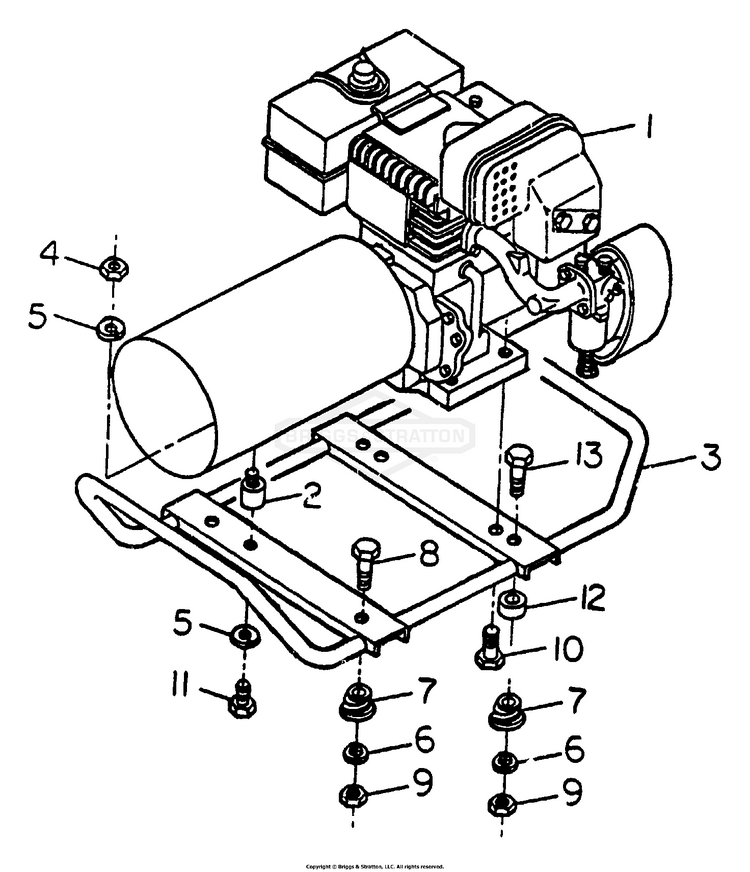

Cradle

ENGINE - Tecumseh 8 horsepower BS-69649

DAMPENER, Vibration BS-40479

CRADLE ASSEMBLY BS-68395B

NUT, Hex - 1/4"-20 BS-22127

CAP BS-5022097SM

WASHER, Lock BS-22129GS

SPRING- Plain BS-23594

MODULE BS-84009650

NUT, 5/16-18 HEX BS-5025032SM

SCREW (Taptite)- 3/16"-18 x 3/4" BS-59637

SCREW - 1/4"-20 x 3/8" BS-36949

SPACER - 1/2" long BS-22550J

CAPSCREW, Hex Head - 5/16"-18 x 1-1/4" BS-22128

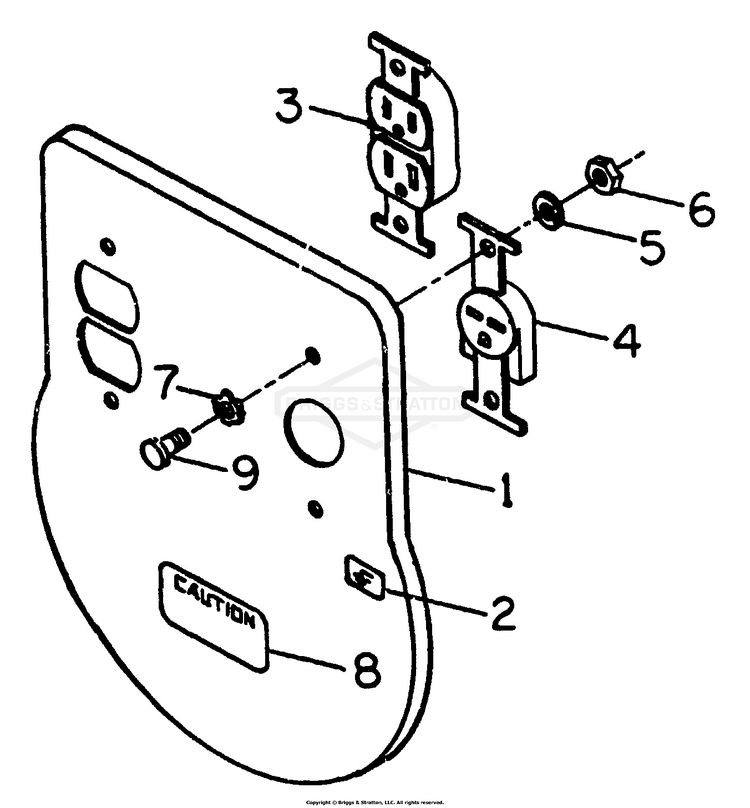

Panel

PANEL, Receptacle BS-44328ZZ

DECAL, GRD BS-67210GS

OUTLET, Duplex, 120 V, 15 A BS-63025GS

RECEPTACLE - 240 volts a-c, 15 ampere BS-58889

WASHER, Lock - No. 8 BS-22264

NUT, #8-32 BS-22471GS

WASHER, Serrated- No. 8 BS-26579

DECAL - Caution BS-39178

SCREW BS-797483

Wiring Diagram/Electrical Schematic

No Parts Available for this Schematic
