884256 Murray - CP450, 38cm Walk Behind Mower (2011)

Model: 884256

Back To Assemblies

Save Part Not Listed?
product name

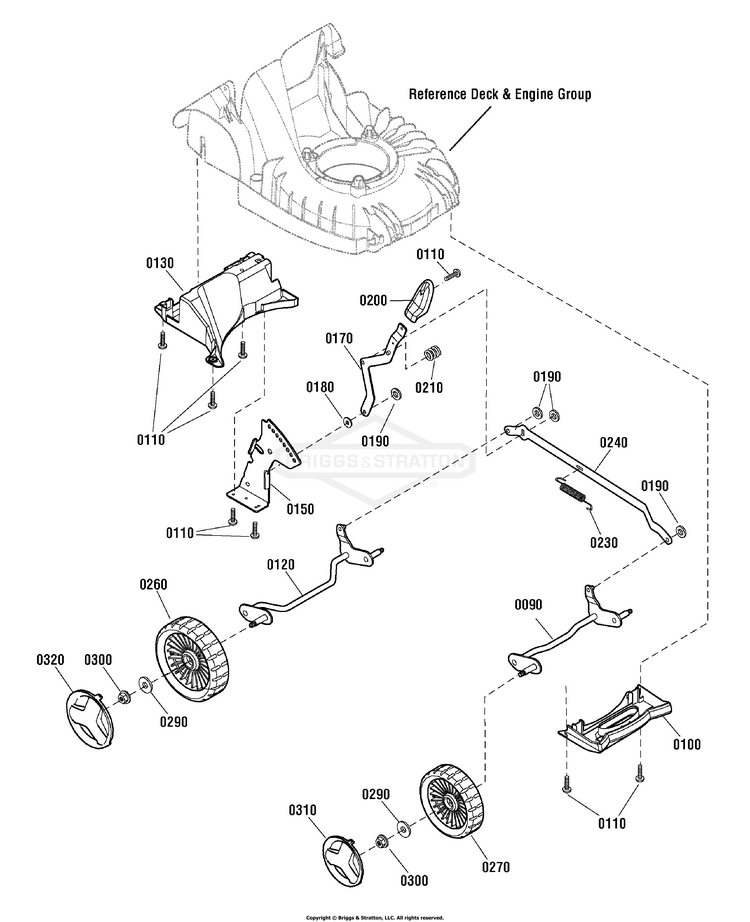

Wheels & Axles Group - Push (884256)

...
...
0090
AXLE, Front BS-884006YP
...
0100
BUMPER BS-884082YP
...
0110
SCREW, PT Thread Forming, Metric BS-884035YP
...
0120
AXLE, Rear BS-884007YP
...
0130
RAMP BS-884073YP
...
0150
INDEX PLATE BS-884009YP
...
0170
LEVER BS-884016YP
...
0180
WASHER, Flat, M8 x 16mm BS-884053YP
...
0190
WASHER, Star Lock, 8mm BS-884037YP
...
0200
LEVER CAP, Red BS-884263YP
...
0210
SPRING, Lever Cap BS-884014YP
...
0230
SPRING, Compensator BS-884015YP
...
0240
LIFTER LINK, Silver BS-884115YP
...
0260
WHEEL, Rear BS-884106YP
...
0270
WHEEL, Front BS-884107YP
...
0290
WASHER, Flat, M8 X 24mm BS-884121YP
...
0300
NUT, Nylock, M8-1-1/4 BS-49820YP
...
0310
TRIM, Wheel, Front, Yellow BS-884259YP
...
0320
TRIM, Wheel, Rear, Yellow BS-884258YP
