8840-1 Briggs and Stratton Portable Generator S2400, 2,250 Watt

Model: 8840-1

Save Part Not Listed?
product name

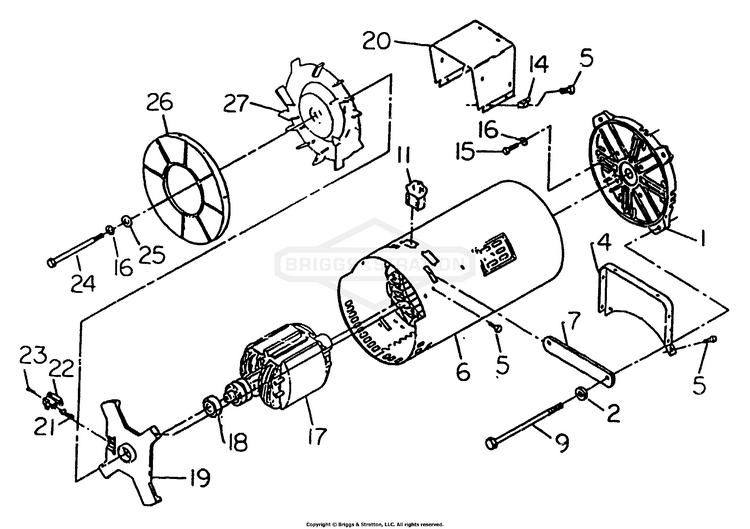

AC Generator

...
...
1
HOUSING, Engine Adapter BS-60220D
...
2
CAP BS-5022097SM
...
4
(C) WELD PIVOT ARM BS-7043874YP
...
5
SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
6
STATOR ASSEMBLY (S1500 Only) BS-68777
...
STATOR ASSEMBLY (S2400 Only) BS-68785
...
7
BAR, Stator Bolt BS-44338
...
9
BOLT, Stator BS-44395A
...
11
RECTIFIER ASSEMBLY, Bridge BS-28293
...
14
LUG, Grounding BS-25433
...
15
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
16
WASHER, Lock BS-22129GS
...
17
ROTOR ASSEMBLY (S1500 Only) BS-68776
...
ROTOR ASSEMBLY (S2400 Only) BS-68784
...
18
BEARING, Rotor BS-24049
...
19
CARRIER, Bearing BS-44943
...
20
(C) WELD SHAFT BRAK BS-7043875YP
...
21
ASSY, BRUSH BS-A24044AGS
...
22
HLDR, BRUSH, UNIV BS-23877DGS
...
23
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
24
SCREW BS-24421GS
...
25
Washer, .34 x 1 x 10 BS-50190GS
...
26
CVR, FAN, PLSTC BS-44357GS
...
27
FAN, Cooling BS-44331

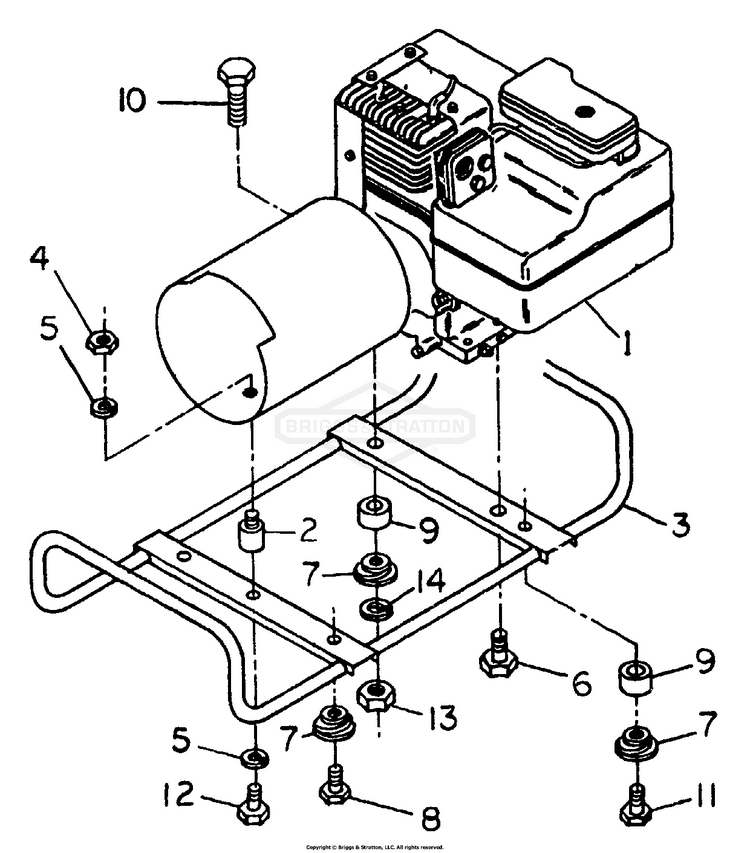

Cradle Assembly

...
...
1
ENGINE- Briggs & Stratton 3 HP (S1500 Only) BS-63190
...
ENGINE- Briggs & Stratton 5 HP (S2400 Only) BS-68770
...
2
DAMPENER, Vibration BS-40479
...
3
CRADLE BS-68395D
...
4
NUT, Hex - 1/4"-20 BS-22127
...
5
CAP BS-5022097SM
...
6
SCREW (Taptite) - 3/8"-16 x 3/4" BS-59637
...
7
SPRING (Plain) BS-23594
...
8
SCREW (Taptite) - 5/16"-18 x 1/2" BS-24910
...
9
SPACER- 1/2" long BS-22550J
...
10
SCREW - 5/16"-18 x 2-1/4" BS-23734
...
11
SCREW (Taptite) - 5/16"-18 x 1" BS-24490
...
12
SCREW- 1/4"-20 x 3/8" BS-36949
...
13
NUT, 5/16-18 HEX BS-5025032SM
...
14
WASHER, Lock BS-22129GS

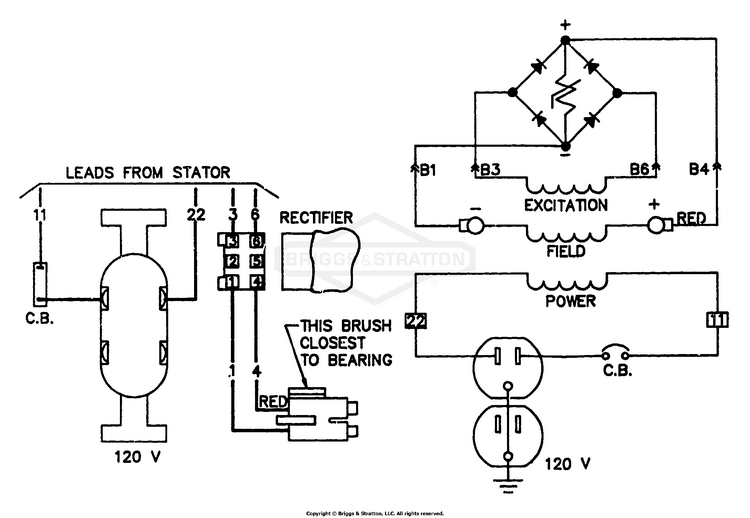

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

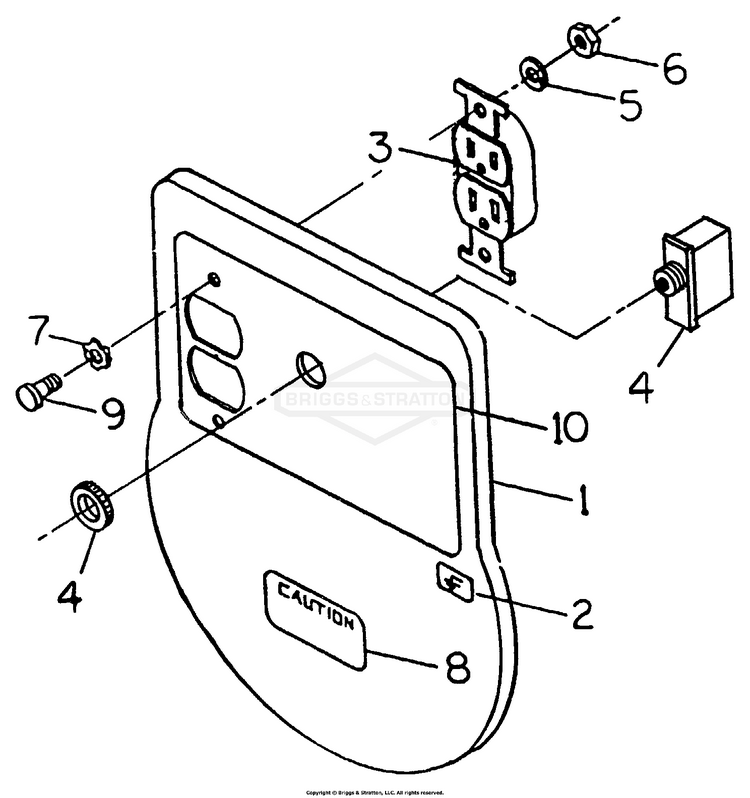

Receptacle Panel

...
...
1
PANEL, Receptacle BS-68733
...
2
DECAL, GRD LUG BS-67210AGS
...
3
OUTLET, Duplex, 120 V, 15 A BS-63025GS
...
OUTLET, 20A,120V BS-68759GS
...
4
BREAKER, Circuit- 12 amp (S1500 Only) BS-66861
...
BREAKER, Circuit- 20 amp (S2400 Only) BS-66819
...
5
WASHER, Lock - No. 8 BS-22264
...
6
NUT, #8-32 BS-22471GS
...
7
WASHER, Serrated - No. 8 BS-26759
...
8
DECAL - Caution! BS-39178
...
9
SCREW BS-797483
...
10
DECAL, Receptacle Panel (S1500 Only) BS-68773A
...
DECAL, Receptacle Panel (S2400 Only) BS-68773B
