8838-0 Briggs and Stratton Portable Generator S1000, 750 Watt

Model: 8838-0

Save Part Not Listed?
product name

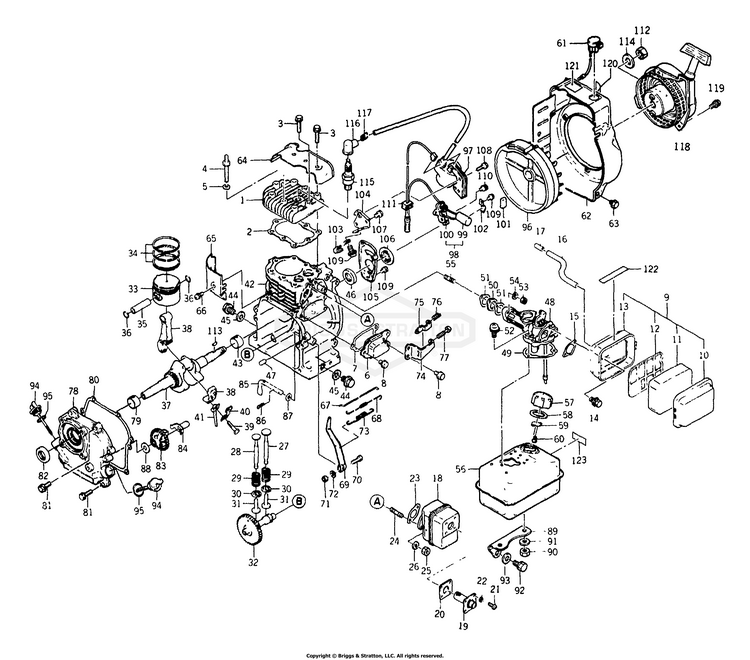

4-Cycle Engine Kawasaki Model Nbr. FA-76

...
...
1
HEAD, Cylinder Contact Generac for quantity required BS-10066898
...
2
GASKET, Cylinder Head Contact Generac for quantity required BS-10166898
...
3
BOLT-6 x 40 Contact Generac for quantity required BS-10266898
...
4
BOLT Contact Generac for quantity required BS-10366898
...
5
WASHER Contact Generac for quantity required BS-10466898
...
6
COVER, Valve Chamber Contact Generac for quantity required BS-10566898
...
7
GASKET Contact Generac for quantity required BS-10666898
...
8
BOLT-6 x 12 Contact Generac for quantity required BS-10766898
...
9
CLEANER ASSEMBLY, Air (Includes Items 10 thru 13); Contact Generac for quantity required BS-10866898
...
10
COVER, Air Cleaner Contact Generac for quantity required BS-10966898
...
11
ELEMENT Contact Generac for quantity required BS-11066898
...
12
PLATE, Air Cleaner Contact Generac for quantity required BS-11166898
...
13
CASE, Air Cleaner Contact Generac for quantity required BS-11266898
...
14
BOLT Contact Generac for quantity required BS-11366898
...
15
GASKET Contact Generac for quantity required BS-11466898
...
16
HOSE, Rubber Contact Generac for quantity required BS-11566898
...
17
PIPE Contact Generac for quantity required BS-11666898
...
18
MUFFLER, Exhaust (Includes Items 19 thru 21); Contact Generac for quantity required BS-11766898
...
19
ARRESTOR, Spark Contact Generac for quantity required BS-11866898
...
20
GASKET Contact Generac for quantity required BS-11966898
...
21
SCREW Contact Generac for quantity required BS-12066898
...
22
WASHER Contact Generac for quantity required BS-12166898
...
23
GASKET Contact Generac for quantity required BS-12266898
...
24
STUD Contact Generac for quantity required BS-12366898
...
25
NUT- 6mm Contact Generac for quantity required BS-12466898
...
26
WASHER Contact Generac for quantity required BS-10466898
...
27
VALVE, Intake Contact Generac for quantity required BS-12566898
...
28
VALVE, Exhaust Contact Generac for quantity required BS-12666898
...
29
SPRING, Valve Contact Generac for quantity required BS-12766898
...
30
SEAT, Valve Spring Contact Generac for quantity required BS-12866898
...
31
TAPPET Contact Generac for quantity required BS-12966898
...
32
GEAR, Cam Contact Generac for quantity required BS-13066898
...
33
PISTON-Standard Contact Generac for quantity required BS-13166898
...
PISTON-0.25mm OVERSIZE Contact Generac for quantity required BS-13266898
...
PISTON-0.50mm OVERSIZE Contact Generac for quantity required BS-13366898
...
34
RING SET, Piston-Standard Contact Generac for quantity required BS-13466898
...
RING SET, Piston-0.25mm OVERSIZE Contact Generac for quantity required BS-13566898
...
RING SET, Piston-0.50mm OVERSIZE Contact Generac for quantity required BS-13666898
...
35
PIN, Piston Contact Generac for quantity required BS-13766898
...
36
RING, Snap Contact Generac for quantity required BS-13866898
...
37
CRANKSHAFT Contact Generac for quantity required BS-13966898
...
38
ROD ASSEMBLY, Connecting Contact Generac for quantity required BS-14066898
...
39
BOLT, Connecting Rod Contact Generac for quantity required BS-14166898
...
40
WASHER, Lock Contact Generac for quantity required BS-14266898
...
41
ARM, Splash Contact Generac for quantity required BS-14366898
...
42
CRANKCASE Assembly (Includes Items 43, 44, 45); Contact Generac for quantity required BS-14466898
...
43
BEARING, Plain Contact Generac for quantity required BS-14566898
...
44
BOLT- 10 x 14 Contact Generac for quantity required BS-14666898
...
45
GASKET Contact Generac for quantity required BS-14766898
...
46
SEAL, Oil Contact Generac for quantity required BS-14866898
...
47
PIN, Dowel Contact Generac for quantity required BS-14966898
...
48
ASSY, CARB Contact Generac for quantity required BS-15066898GS
...
49
GASKET Contact Generac for quantity required BS-15166898
...
50
INSULATOR Contact Generac for quantity required BS-15266898
...
51
GASKET Contact Generac for quantity required BS-15366898
...
52
SCREW-5 x 25 Contact Generac for quantity required BS-12466898
...
53
NUT-6mm Contact Generac for quantity required BS-15566898
...
54
WASHER Contact Generac for quantity required BS-15666898
...
55
STUD Contact Generac for quantity required BS-15766898
...
56
TANK ASSEMBLY, Fuel Contact Generac for quantity required BS-15866898
...
57
CAP, Fuel Tank (Includes Items 58, 59, 60); Contact Generac for quantity required BS-15966898
...
58
GASKET Contact Generac for quantity required BS-16066898
...
59
SPRING Contact Generac for quantity required BS-16166898
...
60
SCREW Contact Generac for quantity required BS-16266898
...
61
SWITCH, Stop Contact Generac for quantity required BS-16366898
...
62
HOUSING, Fan Contact Generac for quantity required BS-16466898
...
63
BOLT- 6 x 10 Contact Generac for quantity required BS-16588989
...
64
SHROUD Contact Generac for quantity required BS-16666898
...
65
COVER, Cylinder Contact Generac for quantity required BS-16766898
...
66
SCREW- 5 x 10 Contact Generac for quantity required BS-16866898
...
67
LINK, Governor Contact Generac for quantity required BS-16966898
...
68
SPRING, Link Contact Generac for quantity required BS-17066898
...
69
ARM, Governor Contact Generac for quantity required BS-17166898
...
70
BOLT- 6 x 25 Contact Generac for quantity required BS-17266898
...
71
NUT- 6mm Contact Generac for quantity required BS-12466898
...
72
WASHER Contact Generac for quantity required BS-15666898
...
73
SPRING, Governor Contact Generac for quantity required BS-17466898
...
74
BRACKET Contact Generac for quantity required BS-17566898
...
75
HOOK Contact Generac for quantity required BS-17666898
...
76
SPRING Contact Generac for quantity required BS-17766898
...
77
SCREW- 4 x 25 Contact Generac for quantity required BS-17866898
...
78
BASE ASSEMBLY, Side Contact Generac for quantity required BS-17966898
...
79
BEARING, Plain Contact Generac for quantity required BS-18066898
...
80
GASKET Contact Generac for quantity required BS-18166898
...
81
BOLT- 6 x 22 Contact Generac for quantity required BS-18266898
...
82
SEAL, Oil Contact Generac for quantity required BS-18366898
...
83
GOVERNOR Assembly Contact Generac for quantity required BS-18466898
...
84
SLEEVE, Governor Contact Generac for quantity required BS-18566898
...
85
TIP, Governor Contact Generac for quantity required BS-18666898
...
86
PIN, Snap Contact Generac for quantity required BS-18766898
...
87
WASHER Contact Generac for quantity required BS-10466898
...
88
WASHER Contact Generac for quantity required BS-18866898
...
89
BRACKET, Tank Contact Generac for quantity required BS-18966898
...
90
NUT-8mm Contact Generac for quantity required BS-19066898
...
91
WASHER Contact Generac for quantity required BS-19166898
...
92
BOLT- 6 x 12 Contact Generac for quantity required BS-19266898
...
93
WASHER Contact Generac for quantity required BS-19366898
...
94
DIPSTICK, Oil Contact Generac for quantity required BS-19466898
...
95
O-RING Contact Generac for quantity required BS-19566898
...
96
FLYWHEEL Contact Generac for quantity required BS-19666898
...
97
COIL, Ignition Contact Generac for quantity required BS-19766898
...
98
BREAKER ASSEMBLY, Contact (Includes Items 99 and 100); Contact Generac for quantity required BS-19866898
...
99
CONDENSOR Contact Generac for quantity required BS-19966898
...
100
BREAKER, Contact Contact Generac for quantity required BS-20066898
...
101
BRUSH Contact Generac for quantity required BS-20166898
...
102
CLAMP Contact Generac for quantity required BS-20266898
...
103
CLAMP Contact Generac for quantity required BS-20366898
...
104
BRACKET Contact Generac for quantity required BS-20466898
...
105
COVER, Breaker Contact Generac for quantity required BS-20566898
...
106
RING Contact Generac for quantity required BS-20666898
...
107
BOLT- 5 x 10 Contact Generac for quantity required BS-20766898
...
108
BOLT- 5 x 20 Contact Generac for quantity required BS-20866898
...
109
SCREW- 4 x 8 Contact Generac for quantity required BS-20966898
...
110
SCREW- 4 x 10 Contact Generac for quantity required BS-21066898
...
111
GROMMET Contact Generac for quantity required BS-21166898
...
112
NUT- 12mm Contact Generac for quantity required BS-21266898
...
113
KEY Contact Generac for quantity required BS-21366898
...
114
WASHER Contact Generac for quantity required BS-21466898
...
115
PLUG, Spark (NGK BMR6A) Contact Generac for quantity required BS-21566898
...
116
CAP, Plug Contact Generac for quantity required BS-21666898
...
117
SPRING Contact Generac for quantity required BS-21766898
...
118

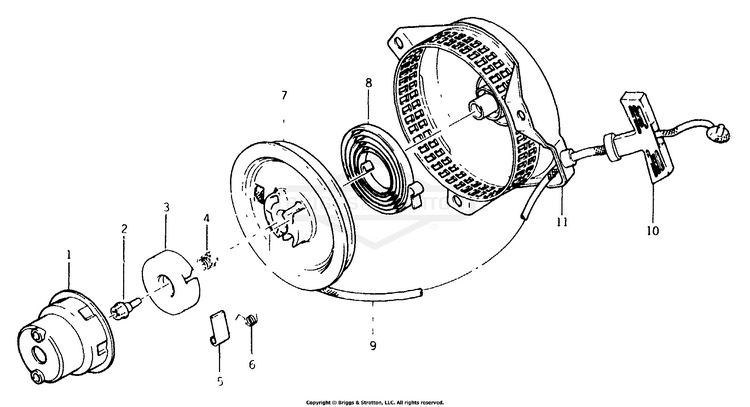

STARTER ASSEMBLY, Recoil Contact Generac for quantity required BS-21866898
...
119
BOLT- 6 x 10 Contact Generac for quantity required BS-21966898
...
120
DECAL Contact Generac for quantity required BS-22066898
...
121
DECAL Contact Generac for quantity required BS-22166898
...
122
DECAL Contact Generac for quantity required BS-22266898
...
123
DECAL Contact Generac for quantity required BS-22366898

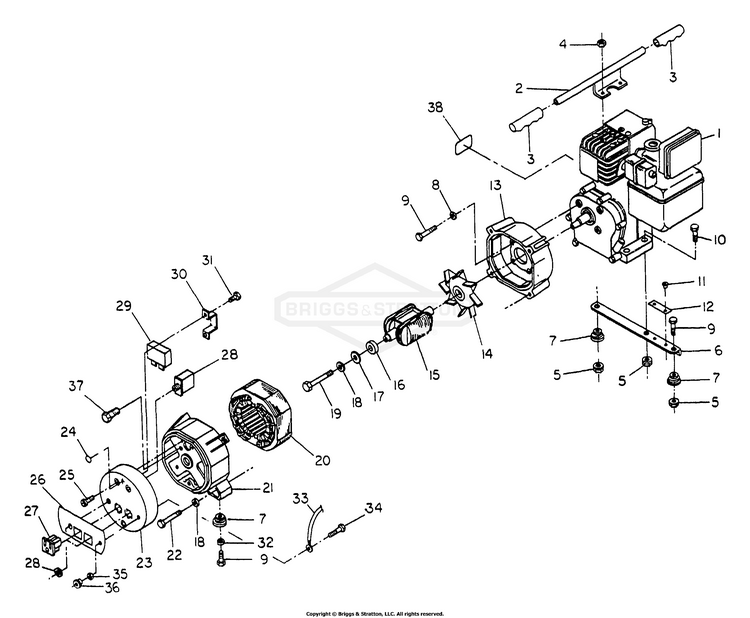

AC Generator No. 67409

...
...
1
ENGINE- Kawasaki FA 76 BS-66898
...
2
HANDLE, Carrying BS-66899
...
3
GRIP, Handle BS-66826
...
4
NUT, M6 BS-49813GS
...
5
NUT, Flanged Lock- M8-1.25 BS-66834
...
6
SUPPORT, Engine BS-67400
...
7
MOUNT, Vibration BS-67401
...
8
WASHER, Lock BS-22129GS
...
9
SCREW, Hex Head Machine- M8-1.25 x 20mm BS-66889
...
10
HHCS, M8 - 1.25 x 35 BS-39414GS
...
11
RIVET- (Aluminum)- 3mm BS-66829
...
12
PLATE, Data BS-67402
...
13
ADPTR, ENG, 150 L BS-65775GS
...
14
FAN, Cooling BS-67403
...
15
WINDING ASSEMBLY, Rotor BS-67404
...
16
BEARING BS-65791GS
...
17
WASHER, Flat (Special)- M6 BS-65793
...
18
CAP BS-5022097SM
...
19
BOLT, Rotor- M6-1.00 x 140 mm BS-65792A
...
20
ASSEMBLY, Stator BS-67406
...
21
CARRIER, Rear Bearing BS-66373
...
22
BOLT, Stator- M6-1.00 x 75mm BS-66449B
...
23
CUP, Control Panel BS-67112
...
24
DECAL- U.S.D.A. (Forestry) BS-66864
...
25
SCREW, Pan Head Machine- M6-1.00 x 55mm (Black Anodized) BS-67408
...
26
DECAL, Control Panel BS-67236
...
27
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
28
BREAKER, Circuit- 6.3 Amperes BS-66888
...
29
CAPACITOR, Excitation BS-66800
...
30
BRACKET, Excitation Capacitor BS-67113
...
31
SCREW- M4-0.70 x 8mm (Self-Threading for Plastic) BS-67114
...
32
(S) WELD BRACE MOUNT BS-7049810YP
...
33
WIRE, Ground (Green) BS-672305
...
34
HHCS, M5-0.8 X 16 BS-49815GS
...
35
NUT, LOCKING-M5 BS-52856GS
...
36
NUT, Wing- M5-0.80 BS-67435
...
37
HHCS, M5-0.8 X 16 BS-49815GS
...
38
DECAL, Data BS-67483A
...
MANUAL-OPERATOR BS-67413GS

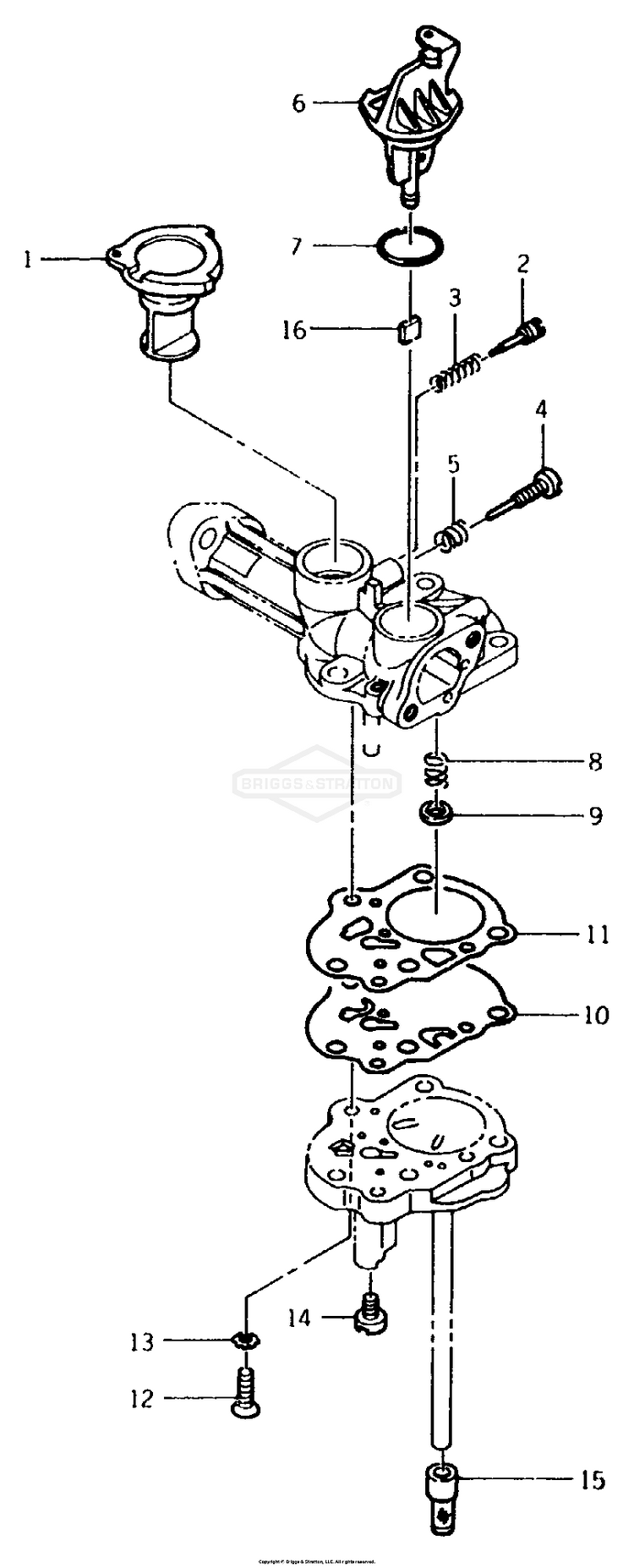

Carburetor

...
...
ASSY, CARB Consists of Items 1 thru 16; Contact Generac for quantity required BS-15066898GS
...
1
SHAFT, Throttle Contact Generac for quantity required BS-22466898
...
2
SCREW, Adjusting Contact Generac for quantity required BS-22566898
...
3
SPRING Contact Generac for quantity required BS-22666898
...
4
SCREW, Low Speed Stop Contact Generac for quantity required BS-22766898
...
5
SPRING Contact Generac for quantity required BS-22866898
...
6
SHAFT, Choke Contact Generac for quantity required BS-22966898
...
7
O-RING Contact Generac for quantity required BS-23066898
...
8
SPRING Contact Generac for quantity required BS-23166898
...
9
CAP, Spring Contact Generac for quantity required BS-23266898
...
10
DIAPHRAGM Contact Generac for quantity required BS-23366898
...
11
GASKET Contact Generac for quantity required BS-23466898
...
12
SCREW- 4 x 12 Contact Generac for quantity required BS-23566898
...
13
WASHER Contact Generac for quantity required BS-23666898
...
14
JET, Main- No. 54 Contact Generac for quantity required BS-23766898
...
15
STRAINER Contact Generac for quantity required BS-23866898
...
16
SPACER Contact Generac for quantity required BS-23966898

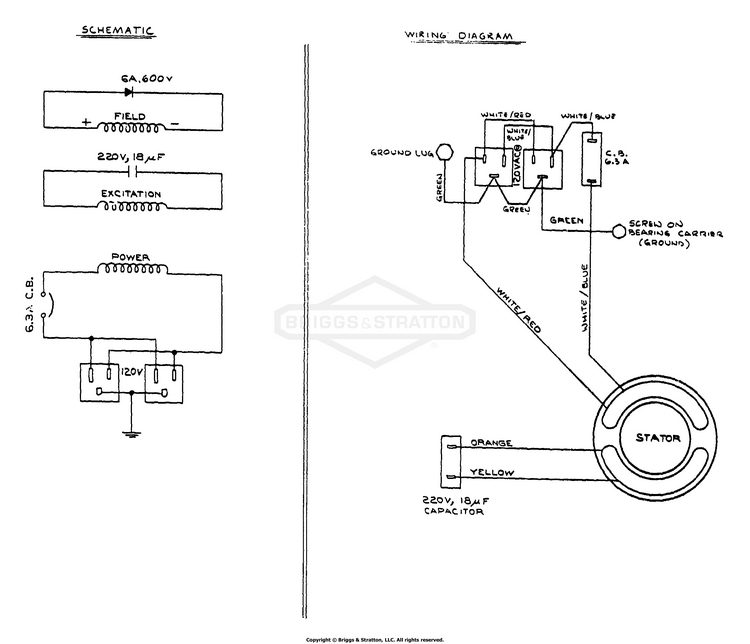

Electrical Schematic & Wiring Diagram No. 67234

...

No Parts Available for this Schematic

Recoil Starter

...
...
STARTER ASSEMBLY, Recoil Includes Items 1 thru 11; Contact Generac for quantity required BS-20465188
...
1
PULLEY Contact Generac for quantity required BS-22865188
...
2
BOLT Contact Generac for quantity required BS-22965188
...
3
RETAINER Contact Generac for quantity required BS-23065188
...
4
SPRING Contact Generac for quantity required BS-23165188
...
5
PAWL, Recoil Contact Generac for quantity required BS-23265188
...
6
SPRING, Return Contact Generac for quantity required BS-23365188
...
7
REEL, Recoil Contact Generac for quantity required BS-23465188
...
8
SPRING, Recoil Contact Generac for quantity required BS-23565188
...
9
ROPE (4.5 x 1550mm) Contact Generac for quantity required BS-23665188
...
10
HANDLE, Recoil Starter Contact Generac for quantity required BS-23765188
...
11
CASE, Recoil Starter Contact Generac for quantity required BS-23865188
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
