8836-0 Briggs and Stratton Portable Generator G2600, 2,400 Watt

Model: 8836-0

Save Part Not Listed?
product name

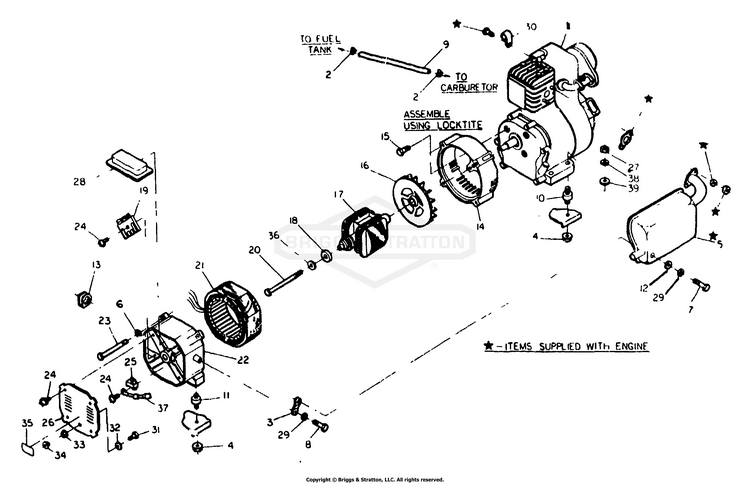

AC Generator No. 65798-A

...
...
1
ENGINE- 5 Horsepower Kawasaki- FA210 BS-65188
...
2
CLAMP, Fuel Line BS-66836
...
3
BRACKET, Muffler Support BS-66462
...
4
NUT, Flanged Lock- M8-1.25 BS-66834
...
5
WASHER BS-691607
...
6
CAP BS-5022097SM
...
7
CAPSCREW, Hex Head- M10-1.50 x 60mm BS-52243
...
8
CAPSCREW, Hex Head- M10-1.50 x 16mm BS-51755
...
9
HOSE, Fuel- 300mm long BS-66837
...
10
MOUNT, Vibration- Engine BS-66443A
...
11
MNT, VIBR, GEN 1.25OD BS-66443BGS
...
12
WASHER, Flat- M10 BS-49809
...
13
GROMMET, RUBBER BS-67022GS
...
14
HOUSING, Engine Adapter BS-66365GS
...
15
CAPSCREW M8-1.25X16 BS-703988
...
16
FAN, Cooling BS-66389
...
17
ROTOR ASSEMBLY BS-65785
...
18
BEARING BS-65791GS
...
19
RECTIFIER, BATTERY CHARGE BS-65795GS
...
20
BOLT, Rotor- M8-1.25 x 190mm BS-66448B
...
21
ASSY, STATOR, 2400, ENCL BS-66454GS
...
22
CARRIER, Rear Bearing BS-66825
...
23
BOLT, Stator- M6-1.00 x 90mm BS-66449B
...
24
HHCS, M5-0.8 X 16 BS-49815GS
...
25
ASSEMBLY, BRUSH HOLDER BS-66386GS
...
26
COVER, Bearing Carrier BS-67025
...
27
SKID PLATE BS-5045771B
...
28
ASSY, RECTIFIER, BRIDGE BS-66850GS
...
29
WASHER, Lock- M10 BS-46526
...
30
ROPE, Starter BS-695002
...
31
HHCS, M5-0.8 X 16 BS-49815GS
...
32
WASHER, Serrated- M5 BS-67444
...
33
NUT, LOCKING-M5 BS-52856GS
...
34
NUT, Wing- M5-0.80 BS-67435
...
35
DECAL, GRD BS-67210GS
...
36
WASHER, Flat (Special)- M8 BS-67451
...
37
ASSY, DIODE, FIELD BOOST BS-67462GS
...
38
WASHER, Lock BS-22129GS
...
39
(S) WELD BRACE MOUNT BS-7049810YP

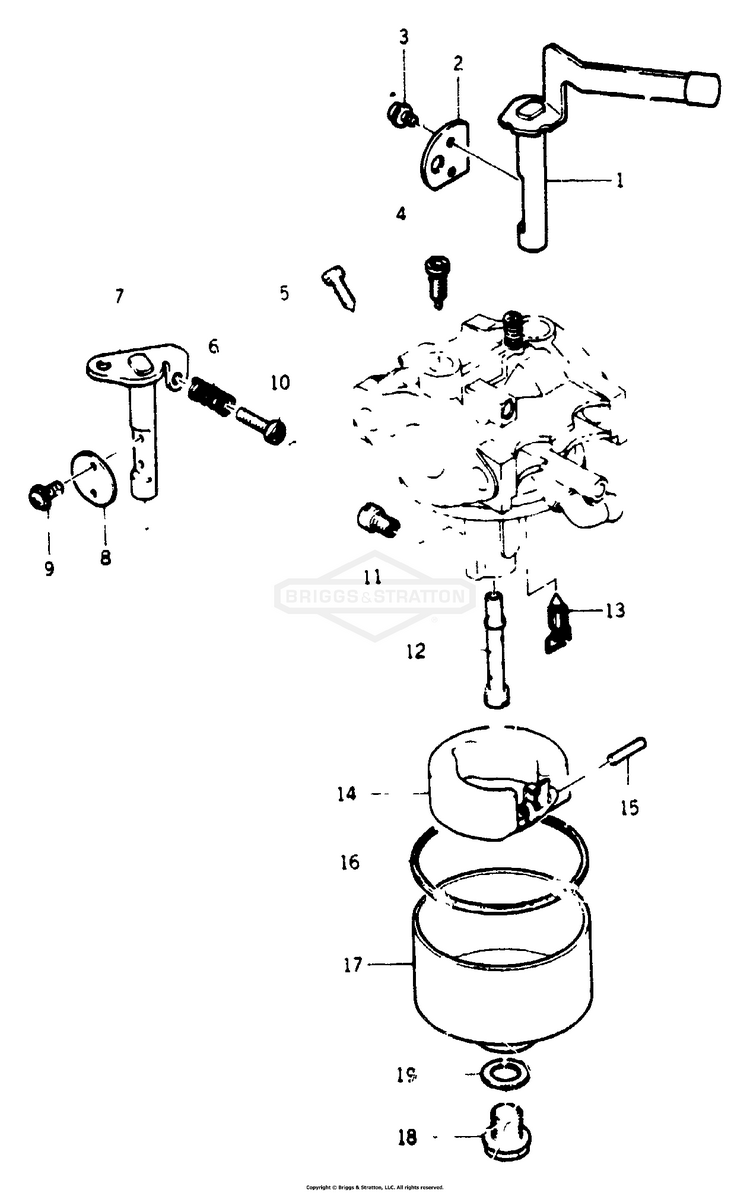

Carburetor

...
...
CARBURETOR ASSEMBLY Contact Generac for quantity required BS-14865188
...
1
SHAFT, Choke Contact Generac for quantity required BS-20965188
...
2
VALVE, Choke Contact Generac for quantity required BS-21065188
...
3
SCREW Contact Generac for quantity required BS-21165188
...
4
JET, Pilot (#37.5) Contact Generac for quantity required BS-21265188
...
5
SCREW, Pilot Contact Generac for quantity required BS-21365188
...
6
SPRING Contact Generac for quantity required BS-21465188
...
7
SHAFT Throttle Contact Generac for quantity required BS-21565188
...
8
VALVE Throttle Contact Generac for quantity required BS-21665188
...
9
SCREW Contact Generac for quantity required BS-21765188
...
10
SCREW, Stop Contact Generac for quantity required BS-21865188
...
11
JET, Main (#77.5) Contact Generac for quantity required BS-21965188
...
12
NOZZLE, Main (#5A) Contact Generac for quantity required BS-22065188
...
13
VALVE, Needle Contact Generac for quantity required BS-22165188
...
14
FLOAT Contact Generac for quantity required BS-22265188
...
15
PIN, FLOAT Contact Generac for quantity required BS-22365188GS
...
16
GASKET Contact Generac for quantity required BS-22465188
...
17
CHAMBER, Float Contact Generac for quantity required BS-22565188
...
18
BOLT Contact Generac for quantity required BS-22665188
...
19
GASKET Contact Generac for quantity required BS-22765188

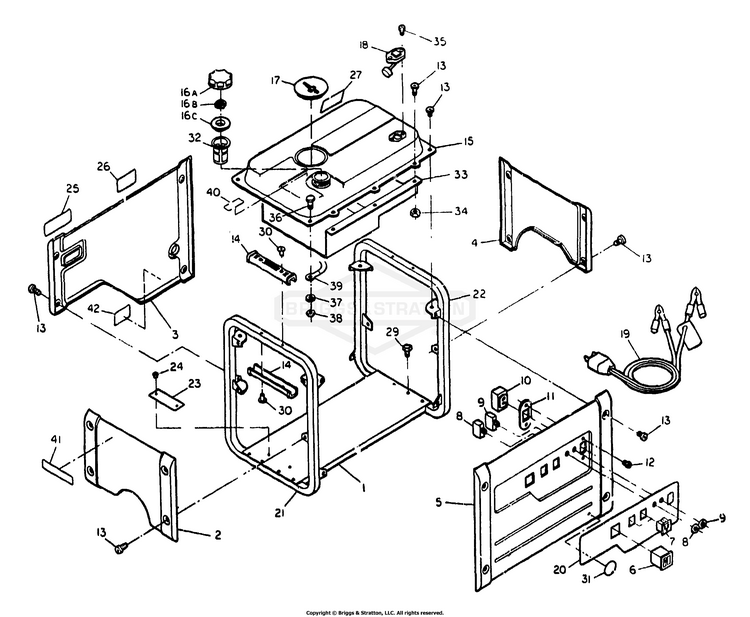

Cradle - 2400 Watt Generators No. 67446

...
...
1
BASE, Engine Cradle BS-66394
...
2
PANEL- Engine End BS-66456
...
3
PANEL, Muffler BS-66457
...
4
PANEL, Generator End BS-66453
...
5
PANEL, Receptacle and Control BS-66455
...
6
SWITCH, ENG, CTRL, ILUM BS-66817GS
...
7
OUTLET, 120 V AC, 15 A Duplex BS-66818GS
...
8
BREAKER, Circuit- 20 a-c Amperes BS-66819
...
9
BREAKER, Circuit- 10 d-c Amperes BS-66820
...
10
OUTLET, 12 V DC BS-66821GS
...
11
OUTLET, 12Volt DC (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.) BS-66822GS
...
12
SCREW, Machine- M3-0.50 x 5mm BS-66828
...
13
SCREW, Machine - M5-0.80 x 12mm (with Lock Washer) BS-66827
...
14
COVER, Handle BS-66450
...
15
TANK, Fuel- 2.34 U.S. Gallons BS-66368
...
16A
CAP, Fuel Tank BS-66802A
...
16B
BREATHER, Fuel Tank BS-66802B
...
16C
GSKT, FUEL CAP BS-66802CGS
...
17
CVR, ACC, SPARKPLUG BS-64680BGS
...
18
INDICATOR, Fuel Level BS-66391B
...
19
CABLE, Battery Charge BS-65787
...
20
DECAL, Receptacle and Control Panel BS-67433
...
21
CRADLE, Engine End BS-66392
...
22
CRADLE, Generator End BS-66393
...
23
PLATE, Data BS-67430B
...
24
RIVET- 3mm BS-66829
...
25
DECAL, Choke BS-66823
...
26
DECAL- Hot Caution BS-66824
...
27
DECAL- Starting Data BS-67441C
...
29
SCREW (Crimptite) BS-67459
...
30
RIVET, Black Anodized- 4mm BS-66831
...
31
DECAL- U.S.D.A. BS-66864
...
32
FILTER, Fuel BS-66838
...
33
SHIELD, Fuel Tank Heat BS-66880
...
34
NUT, Hex Lock- M5-0.80 BS-66839
...
35
SCREW, Machine- M5-0.80 x 12 mm BS-52749
...
36
HHCS, M5-0.8 X 20 BS-52619GS
...
37
WASHER, Serrated- M5 BS-67444
...
38
NUT, M5 x 0.8 BS-51716GS
...
39
WIRE, Ground (Green) BS-6639521
...
MANUAL-OPERATOR BS-67445GS

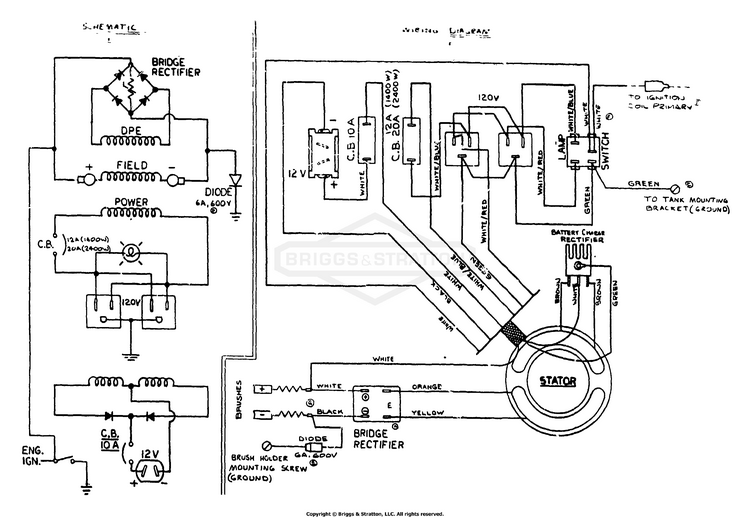

Electrical Schematic/Wiring Diagram No. 66801

...

No Parts Available for this Schematic

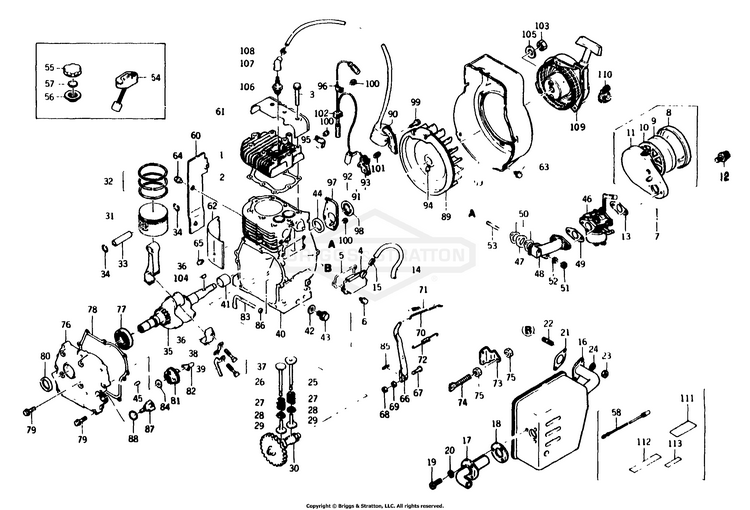

Kawasaki 5 Horsepower Engine

...
...
1
HEAD, Cylinder Contact Generac for quantity required BS-10065188
...
2
GASKET, Cylinder Head Contact Generac for quantity required BS-10165188
...
3
BOLT (8 x 55) Contact Generac for quantity required BS-10265188
...
4
COVER, Valve Chamber Contact Generac for quantity required BS-10365188
...
5
GASKET Contact Generac for quantity required BS-10465188
...
6
BOLT (6 x 12) Contact Generac for quantity required BS-10565188
...
7
CLEANER ASSEMBLY, Air Contact Generac for quantity required BS-10665188
...
8
COVER, Air Cleaner Contact Generac for quantity required BS-10765188
...
9
ELEMENT Contact Generac for quantity required BS-10865188
...
10
PLATE, Air Cleaner Contact Generac for quantity required BS-10965188
...
11
CASE, Air Cleaner Contact Generac for quantity required BS-11065188
...
12
BOLT (6 x 80) Contact Generac for quantity required BS-11165188
...
13
GASKET Contact Generac for quantity required BS-11265188
...
14
TUBE, Rubber Contact Generac for quantity required BS-11365188
...
15
PIPE Contact Generac for quantity required BS-11465188
...
16
WASHER Contact Generac for quantity required BS-691607
...
17
ARRESTER, Spark Contact Generac for quantity required BS-11565188
...
18
GASKET Contact Generac for quantity required BS-11665188
...
19
SCREW Contact Generac for quantity required BS-11765188
...
20
WASHER Contact Generac for quantity required BS-11865188
...
21
GSKT Contact Generac for quantity required BS-11965188GS
...
22
STUD Contact Generac for quantity required BS-12065188GS
...
23
NUT (8mm) Contact Generac for quantity required BS-12165188
...
24
WASHER Contact Generac for quantity required BS-12265188
...
25
VALVE, Intake Contact Generac for quantity required BS-12365188
...
26
VALVE, Exhaust Contact Generac for quantity required BS-12465188
...
27
SPRING, Valve Contact Generac for quantity required BS-12565188
...
28
SEAT, Valve Spring Contact Generac for quantity required BS-12665188
...
29
TAPPET Contact Generac for quantity required BS-12765188
...
30
CAMSHAFT Contact Generac for quantity required BS-12865188
...
31
PISTON (Standard) Contact Generac for quantity required BS-12965188
...
PISTON (0.25mm OS) Contact Generac for quantity required BS-13065188
...
PISTON (0.50mm OS) Contact Generac for quantity required BS-13165188
...
32
SET, Piston Ring (Standard) Contact Generac for quantity required BS-13265188
...
SET, Piston Ring (0.25mm OS) Contact Generac for quantity required BS-13365188
...
SET, Piston Ring (0.50mm OS) Contact Generac for quantity required BS-13465188
...
33
PIN, Piston Contact Generac for quantity required BS-13565188
...
34
RING, Snap Contact Generac for quantity required BS-13665188
...
35
CRANKSHAFT Contact Generac for quantity required BS-13765188
...
36
ROD ASSEMBLY, Connecting Contact Generac for quantity required BS-13865188
...
37
BOLT, Connecting Rod Contact Generac for quantity required BS-13965188
...
38
WASHER, Lock Contact Generac for quantity required BS-14065188
...
39
ARM, Splasher Contact Generac for quantity required BS-14165188
...
40
CASE ASSEMBLY, Connecting Contact Generac for quantity required BS-14265188
...
41
BEARING, Plain Contact Generac for quantity required BS-14365188
...
42
GASKET Contact Generac for quantity required BS-14465188
...
43
BOLT (10 x 14) Contact Generac for quantity required BS-14565188
...
44
SEAL, Oil Contact Generac for quantity required BS-14665188
...
45
PIN, Dowel Contact Generac for quantity required BS-14765188
...
46
CARBURETOR Contact Generac for quantity required BS-14865188
...
47
INSULATOR Contact Generac for quantity required BS-14965188
...
48
PIPE, Inlet Contact Generac for quantity required BS-15065188
...
49
GASKET Contact Generac for quantity required BS-15165188
...
50
GASKET Contact Generac for quantity required BS-15265188
...
51
NUT (6mm) Contact Generac for quantity required BS-15365188
...
52
WSHR Contact Generac for quantity required BS-15465188GS
...
53
STUD Contact Generac for quantity required BS-15565188
...
54
GAUGE, Fuel Level Contact Generac for quantity required BS-66391B
...
55
CAP, Fuel Tank Contact Generac for quantity required BS-66802A
...
56
GSKT, FUEL CAP Contact Generac for quantity required BS-66802CGS
...
57
BREATHER Contact Generac for quantity required BS-66802B
...
58
WIRE. Contact Generac for quantity required BS-15665188
...
59
HOUSING, Fan Contact Generac for quantity required BS-15765188
...
60
CASE, Spiral Contact Generac for quantity required BS-15865188
...
61
COVER Cylinder Head Contact Generac for quantity required BS-15965188
...
62
COVER, Cylinder Contact Generac for quantity required BS-16065188
...
63
BOLT (6 x 10) Contact Generac for quantity required BS-16165188
...
64
BOLT (6 x 12) Contact Generac for quantity required BS-10565188
...
65
SCREW (5 x 10) Contact Generac for quantity required BS-16265188
...
66
ARM, Governor Contact Generac for quantity required BS-16365188
...
67
BOLT (6 x 25) Contact Generac for quantity required BS-16465188
...
68
NUT (6mm) Contact Generac for quantity required BS-15354188
...
69
WSHR Contact Generac for quantity required BS-15465188GS
...
70
ROD, Governor Contact Generac for quantity required BS-16565188
...
71
SPRING, Link Contact Generac for quantity required BS-16665188
...
72
SPRING, GVRNR Contact Generac for quantity required BS-16765188GS
...
73
BRACKET Contact Generac for quantity required BS-16865188
...
74
SPRING, ADJUSTOR Contact Generac for quantity required BS-16965188GS
...
75
NUT Contact Generac for quantity required BS-17065188GS
...
76
BASE, Side Contact Generac for quantity required BS-17165188
...
77
BEARING, Ball (6205) Contact Generac for quantity required BS-17265188
...
78
GASKET Contact Generac for quantity required BS-17365188
...
79
BOLT (6 x 30) Contact Generac for quantity required BS-17465188
...
80
SEAL, OIL Contact Generac for quantity required BS-17565188GS
...
81
GOVERNOR Contact Generac for quantity required BS-17665188
...
82
SLEEVE Governor Contact Generac for quantity required BS-17765188
...
83
TIP, Governor Contact Generac for quantity required BS-17865188
...
84
WASHER Contact Generac for quantity required BS-17965188
...
85
PIN, SNAP Contact Generac for quantity required BS-18065188GS
...
86
WASHER Contact Generac for quantity required BS-18165188
...
87
GAUGE, Oil Level Contact Generac for quantity required BS-18265188
...
88
O, RING Contact Generac for quantity required BS-18365188
...
89
FLYWHEEL Contact Generac for quantity required BS-18465188
...
90
COIL, Ignition Contact Generac for quantity required BS-18565188
...
91
BREAKER ASS'Y Contact Contact Generac for quantity required BS-18665188
...
92
CONDENSER Contact Generac for quantity required BS-18765188
...
93
BREAKER, Contact Contact Generac for quantity required BS-18865188
...
94
BRUSH Contact Generac for quantity required BS-18965188
...
95
CLAMP Contact Generac for quantity required BS-19065188
...
96
CLAMP Contact Generac for quantity required BS-19165188
...
97
COVER Contact Generac for quantity required BS-19265188
...
98
RING Contact Generac for quantity required BS-19365188
...
99
BOLT (5 x 20) Contact Generac for quantity required BS-19465188
...
100
SCREW (4 x 8) Contact Generac for quantity required BS-19565188
...
101
SCREW (4 x 20) Contact Generac for quantity required BS-19665188
...
102
GROMMET Contact Generac for quantity required BS-19765188
...
103
NUT (14mm) Contact Generac for quantity required BS-19865188
...
104
KEY Contact Generac for quantity required BS-19965188
...
105
WASHER Contact Generac for quantity required BS-20065188
...
106
SPARK PLUG Contact Generac for quantity required BS-20165188
...
107
CAP, Plug Contact Generac for quantity required BS-20265188
...
108
SPRING Contact Generac for quantity required BS-20365188
...
109
STARTER ASSEMBLY, Recoil Contact Generac for quantity required BS-20465188
...
110
BOLT (6 x 10) Contact Generac for quantity required BS-20565188
...
111
DECAL Contact Generac for quantity required BS-20665188
...
112
DECAL Contact Generac for quantity required BS-20765188
...
113
DECAL Contact Generac for quantity required BS-20865188

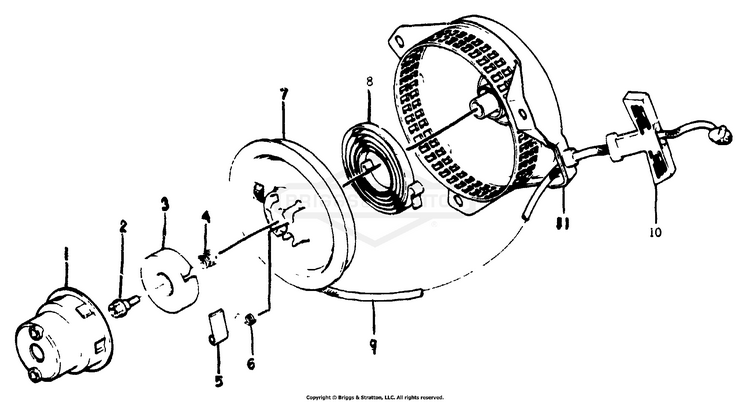

Recoil Starter

...
...
STARTER ASSEMBLY, Recoil Contact Generac for quantity required BS-20465188
...
1
PULLEY Contact Generac for quantity required BS-22865188
...
2
BOLT Contact Generac for quantity required BS-22965188
...
3
RETAINER Contact Generac for quantity required BS-23065188
...
4
SPRING Contact Generac for quantity required BS-23165188
...
5
PAWL,Recoil Contact Generac for quantity required BS-23265188
...
6
SPRING,Return Contact Generac for quantity required BS-23365188
...
7
REEL,Recoil Contact Generac for quantity required BS-23465188
...
8
SPRING,Recoil Contact Generac for quantity required BS-23565188
...
9
ROPE (4.5 x 1550) Contact Generac for quantity required BS-23665188
...
10
HANDLE,Recoil Starter Contact Generac for quantity required BS-23765188
...
11
CASE, Recoil Starter Contact Generac for quantity required BS-23865188
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
