883010-A Murray - Murray 26cc Straight Shaft String Trimmer (2012)

Model: 883010-A

Save
 Part Not Listed?Part Not Listed?
product name

Engine Group - 26cc 2 Stroke (TR00415G)

...
...
3
KIT, HARDWARE (Includes Ref. Nos. 1 & 2) BS-706293
...
6
CLUTCH & SPRING ASSEM (Includes Ref. Nos. 3, 4 & 5) BS-706295
...
12
MUFFLER ASSEMBLY (Includes Ref. Nos. 7, 8, 9, 10 & 11) BS-706296
...
13
CARBURETOR BS-706298
...
18
INLET MANIFOLD ASSEM (Includes Ref. Nos. 14, 15, 16 & 17) BS-706297
...
33
KIT,HARDWARE,FLYWHEEL (Includes Ref. Nos. 30, 31 & 32) BS-706294
...
38
PIN ASSEMBLY (Includes Ref. Nos. 34, 35, 36 & 37) BS-706290
...
39
CUP, STARTER PULLEY BS-706291
...
42
SHORT ENGINE ASSEM (Includes Ref. Nos. 19, 20, 21, 22, 23, 24, 25, 26, 27, 28, 29, 33, 38, 40, 41, 44, 73, 78 & 79) BS-706292
...
43
IGNITION UNIT (Includes Ref. No. 41) BS-706302
...
44
MAGNETO FLYWHEEL BS-706305
...
48
CAP, FUEL BS-706304
...
59
KIT, BALL BEARING (Includes Ref. No. 28) BS-706300
...
60
KIT, FUEL LINE (Includes Ref. Nos. 63, 64, 65, 66 & 67) BS-706299
...
62
FILTER, AIR BS-706310
...
64
FILTER, FUEL BS-706303
...
69
KIT, FUEL TANK (Includes Ref. Nos. 45, 46 & 47) BS-706312
...
71
ENGINE COVER, BLACK (Includes Ref. Nos. 7, 56 & 70) BS-706444
...
74
STARTER, RED (Includes Ref. Nos. 7, 49, 50, 51, 58, 61 & 80) BS-706314
...
75
THROTTLE PLATE, RED (Includes Ref. Nos. 52, 53, 54, 72 & 77) BS-706309
...
76
AIR FILTER, BLACK (Includes Ref. Nos. 55, 62 & 81) BS-706308
...
79
CYLINDER BS-706307
...
82
KIT, GASKET (Includes Ref. Nos. 10, 15, 21, 23, 26 & 73) BS-706306

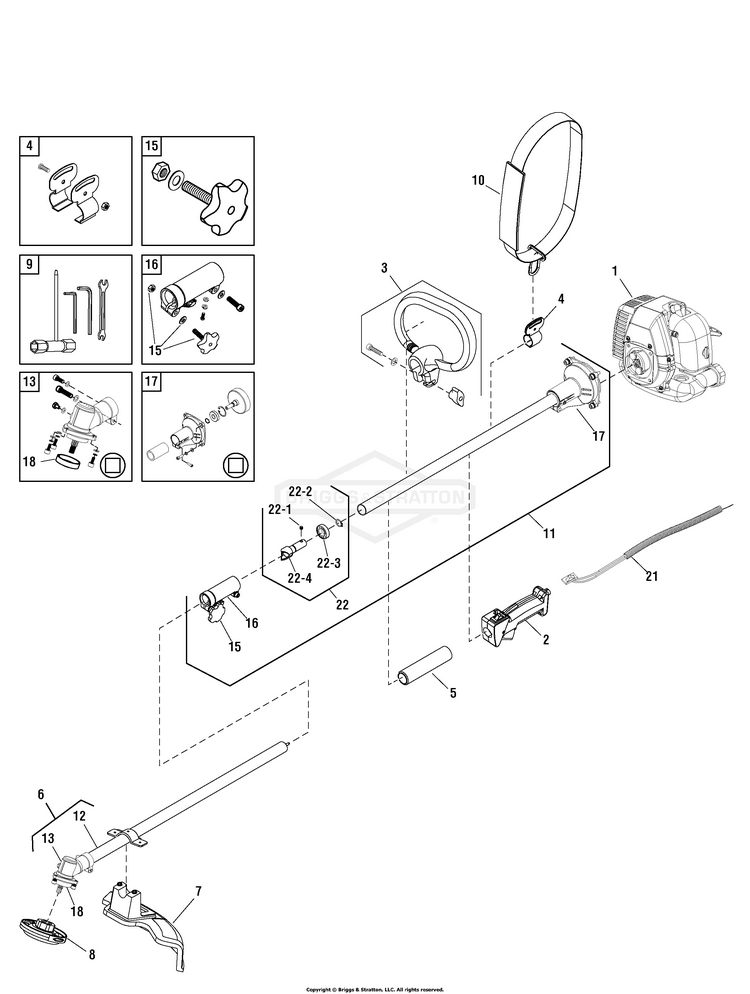

Shaft Group (883010)

...
...
2
TRIGGER HOUSING,RED BS-706271
...
3
HANDLE ASSY (Includes all items shown in box.) BS-706272
...
4
STRAP LATCH (Includes all items shown in box.) BS-706273
...
5
SHAFT PAD GRIP BS-706275
...
6
LOWER STRAIGHT SHAFT (Includes Ref. Nos. 12 & 13) BS-706434
...
7
STRAIGHT SHAFT GUARD BS-706435
...
8
STRAIGHT SHAFT CAST H BS-706436
...
9
TOOL KIT, TRIMMER (Includes all items shown in box.) BS-706277
...
10
HARNESS, SHOULDER BS-706279
...
11
SHAFT ASSEM, UPPER (Includes Ref. Nos. 15, 16, 17 & 22) BS-706281
...
13
HOUSING, Gearbox, Flex Straight Shaft, Square Drive (Includes all items shown in box.) BS-TR00090A
...
15
KNOB ASSEMBLY (Includes all items shown in box.) BS-706288
...
16
KIT, Remote Chute Rotation (Includes all items shown in box.) BS-1687864
...
17
CLUTCH & HSG ASSEMBLY (Includes all items shown in box.) BS-706286
...
18
WASHER, Mount, Straight Shaft BS-TR00032A
...
21
SWITCH BS-707753
...
22-4
DRIVE SOCKET BS-706283
...
...
...
