881403 Murray - BT19550FC, 19" 5.5GT Brute Walk Behind Mower (2011)

Model: 881403

Save Part Not Listed?
product name

Popular Parts

Popular Parts

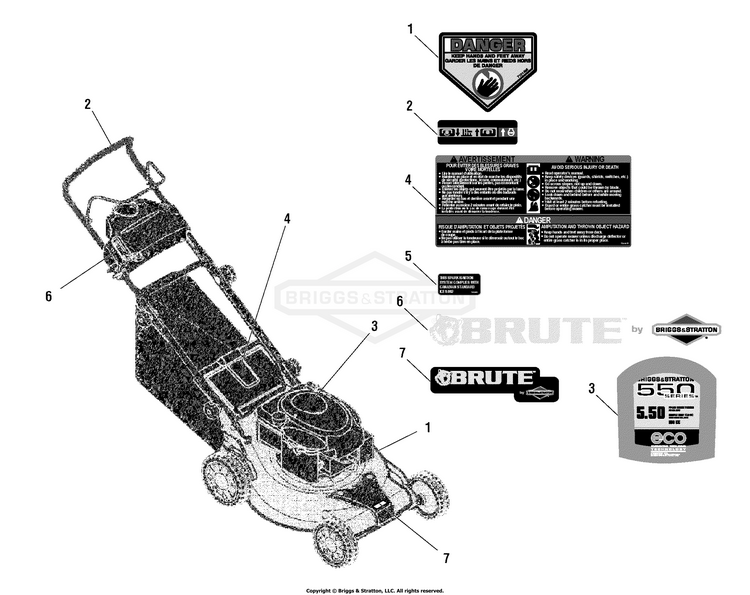

Decal Group

...
...
1
DECAL, CPSC, Danger, French / English BS-7101495YP
...
2
DECAL, Instruction, Engine Lever BS-880545YP
...
3
DECAL, Engine 550 XAQ BS-881449YP
...
4
DECAL, French / English, Safety BS-7101671YP
...
5
DECAL, Compliance, ICES BS-7102996YP
...
6
DECAL, Brute Logo, 12" BS-1742322YP
...
7
DECAL, Brute Logo BS-881438YP

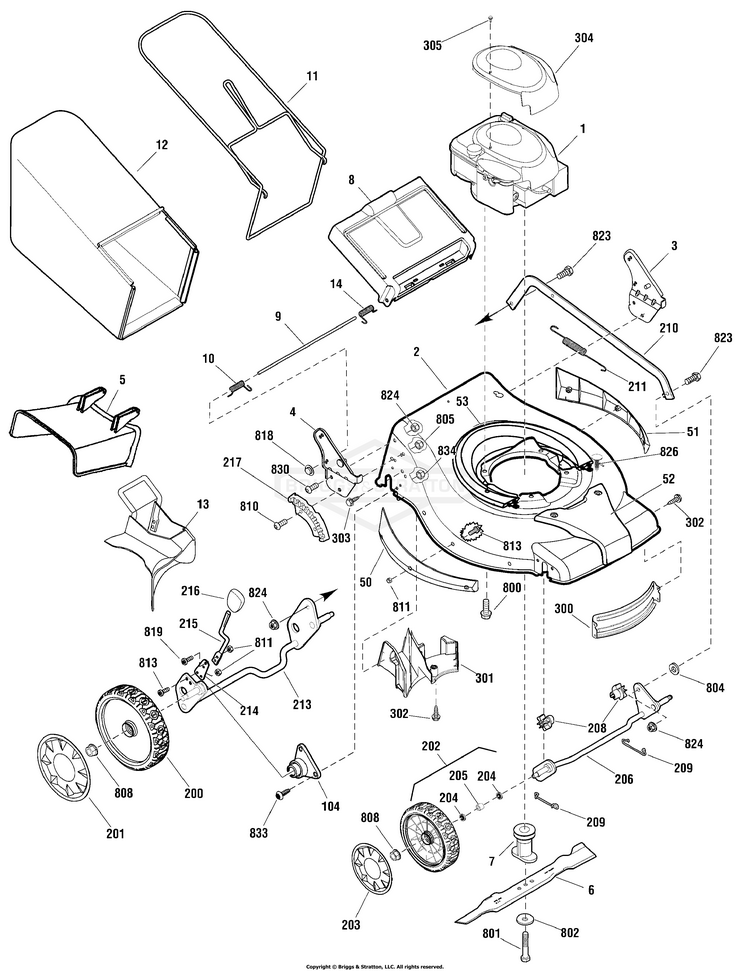

Deck & Engine Group

...
...
1
* ENGINE, B&S, 550 Series, 10L802-0115-F1 BS-10L802-0115-F1
...
2
HOUSING ASSY, 19" SD BS-881252BJYP
...
3
BRACKET ASSEMBLY, Left Handle BS-880951AYP
...
4
BRACKET ASSEMBLY, Right Handle BS-880950AYP
...
5
DEFLECTOR, Chute BS-880579YP
...
6
BLADE, 19 BS-880638BZYP
...
7
BLADE ADAPTER - PUSH BS-880009YP
...
8
DOOR, Rear BS-880671YP
...
9
ROD, REAR DOOR 19 BS-880214YP
...
10
SPRING, Torsion Rear Door, Right BS-880942YP
...
11
BAG FRAME WELDMENT BS-880941BMYP
...
12
BAG ASSEMBLY BS-880938YP
...
13
MULCH PLUG BS-880909YP
...
14
SPRING, Torsion Rear Door, Left BS-880943YP
...
50
SIDE GUARD, Right BS-881112YP
...
51
SIDE GUARD, Left BS-881109YP
...
52
HOUSING COVER, Front BS-881235YP
...
53
HOUSING COVER, Rear BS-881234YP
...
104
SLEEVE ASSEMBLY, Rear Axle BS-880786YP
...
200
WHEEL, Rear BS-880709YP
...
201
HUBCAP, Rear BS-880657YP
...
202
WHEEL, Front, Complete (Incl. Ref. Nos. 204 & 205) BS-880718YP
...
203
HUBCAP, Front BS-880656YP
...
204
WHEEL, Front, Complete (Included with Ref. No. 202) BS-880718YP
...
205
SPACER (Included with Ref. No. 202) BS-880176YP
...
206
FRONT CROSSBAR ASSY BS-880053YP
...
208
BUSHING -FRONT - SLA BS-880050YP
...
209
SPRING, CLIP CROSSBAR BS-881163YP
...
210
LINK, Single Lever BS-880791BJYP
...
211
HGT ADJ SPRING BS-880052YP
...
213
CROSSBAR ASSEMBLY, Rear BS-881233YP
...
214
SPRING, Adjuster BS-880642YP
...
215
HEIGHT ADJ LEVER BS-880540YP
...
216
KNOB, Adjuster BS-880325YP
...
217
BRACKET, Height Adjuster BS-880960YP
...
300
BAFFLE, Front BS-880784BJYP
...
301
BAFFLE, Rear BS-880785YP
...
302
SCREW, PAN HEAD BS-880664YP
...
303
SCREW, 1/4-15 x 5/8 BS-880804YP
...
304
SHROUD, With Label BS-793814
...
305
SCREW, Machine Hex Washer Head BS-95225
...
800
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
801
BOLT - CRANK MOUNTING BS-880034YP
...
802
WASHER, Belleville 7/16 ID BS-880035YP
...
804
WASHER BS-880607YP
...
805
LOCKNUT BS-880020YP
...
808
NUT, Flange Lock 3/8-16 BS-880067YP
...
810
BOLT, Hex Key Head BS-880323YP
...
811
NUT M5, NYLON INS BS-880428YP
...
813
SCREW BS-880339YP
...
818
PUSHNUT, CAP, 1/4 BS-704005
...
819
SCREW BS-880577YP
...
823
BOLT SHOULDER BS-880651YP
...
824
NUT, 5/16-18, Flange Lock, BZ BS-880759YP
...
826
SCREW, Truss Head Torx, 1/4-20 x 7/8 BS-880456YP
...
830
SCREW, 5/16-18 x 1.1, Hex Washer BS-880748YP
...
833
SCREW, Torx, 1/4-20 x 5/8 BS-880845YP
...
834
NUT, Flange Lock, 1/4-20 BS-880859YP

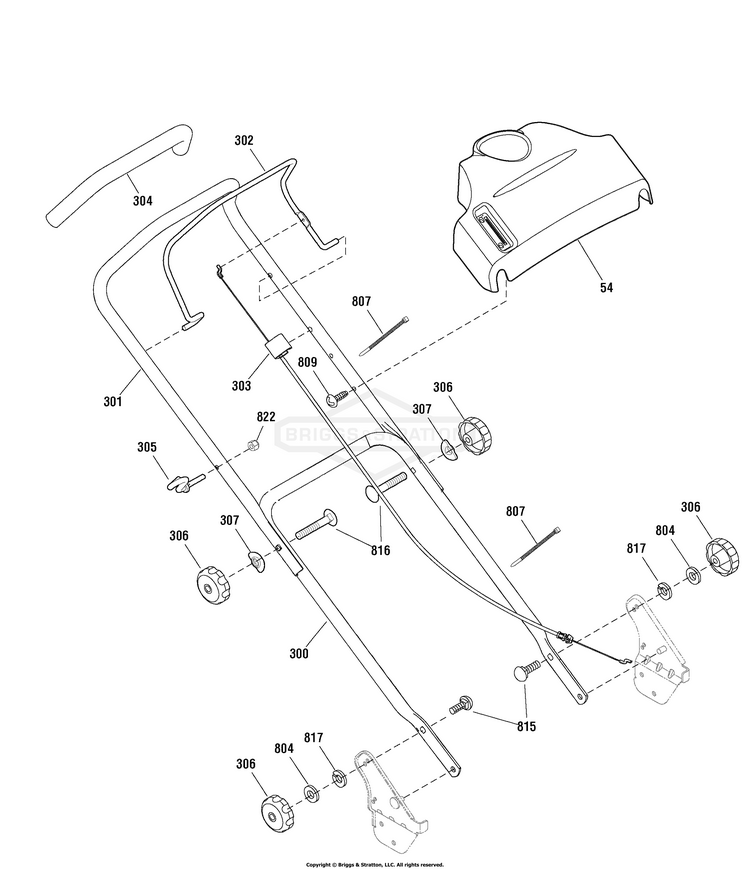

Handle Assembly

...
...
54
CONTROL PANEL BS-880635YP
...
300
HANDLE LOWER BS-880571AYP
...
301
HANDLE, Upper BS-880673AYP
...
302
LEVER ASSY, ENGINE 19 BS-881855YP
...
303
CABLE ENGINE STOP BS-880279YP
...
304
TUBING FOAM BS-880591YP
...
305
GUIDE, Rope BS-880562YP
...
306
KNOB,HANDLE,5 PRONG BS-7105085YP
...
307
WASHER BS-880615YP
...
804
WASHER BS-880607YP
...
807
TIE, SELF LOCKING BS-703586
...
809
SCREW-#10X.5 B W/WAS BS-26X245MA
...
815
BOLT CARRIGE BS-880576YP
...
816
BOLT, Carriage, 5/16-18 x 2 BS-880594YP
...
817
Washer, Lock BS-22129GS
...
822
NUT, Hex, 1/4-20 BS-880561YP
