881272 Murray - MXMH55, 5.5TP 19" High Wheel Self-Propelled Mower, CE (2011)

Model: 881272

Back To Assemblies

Save Part Not Listed?
product name

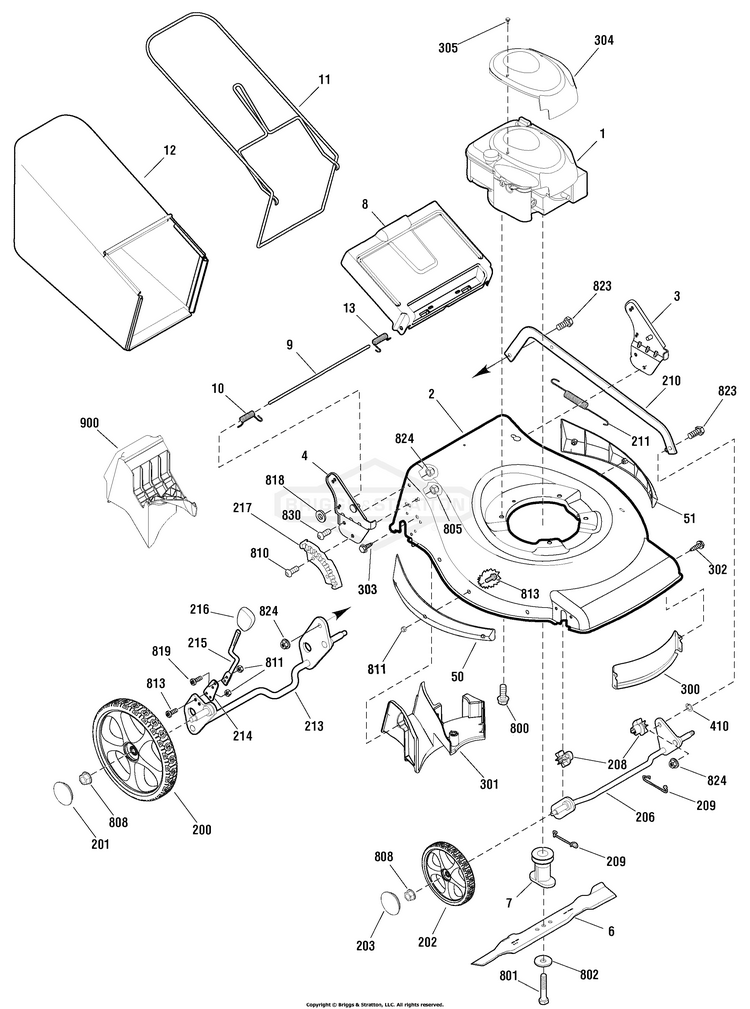

Deck & Engine Group

...
...
1
* ENGINE, 5.5GT Briggs & Stratton (Engine Model: 10T802-0161-B1) BS-10T802-0161-B1
...
2
MOWER HOUSING (Includes Ref. Nos. 300 & 302) BS-881116BIYP
...
3
BRACKET ASSEMBLY, Left Handle BS-880951AYP
...
4
BRACKET ASSEMBLY, Right Handle BS-880950AYP
...
6
BLADE, 19 BS-880638BZYP
...
7
BLADE ADAPTER ASSY BS-880567YP
...
8
DOOR, Rear BS-880671YP
...
9
ROD, REAR DOOR 19 BS-880214YP
...
10
SPRING, Torsion Rear Door, Right BS-880942YP
...
11
BAG FRAME WELDMENT (Red) BS-880941BMYP
...
11
BAG FRAME WELDMENT (Black) BS-880941BMYP
...
12
BAG ASSEMBLY BS-880938YP
...
13
SPRING, Torsion Rear Door, Right BS-880943YP
...
50
SIDE GUARD, Right BS-881108YP
...
51
SIDE GUARD, Left BS-881111YP
...
200
WHEEL ASSY BS-880695YP
...
201
HUBCAP, REAR - 305MM BS-880700YP
...
202
WHEEL ASSY BS-880707YP
...
203
HUBCAP, 5 SPOKE, SILVER BS-880701YP
...
206
FRONT CROSSBAR ASSY BS-880550YP
...
208
BUSHING -FRONT - SLA BS-880050YP
...
209
SPRING, CLIP CROSSBAR BS-881163YP
...
210
LIFTER LINK, 19 HW BS-881174BMYP
...
211
HGT ADJ SPRING BS-880052YP
...
213
REAR CROSSBAR BS-880855YP
...
214
SPRING, Adjuster BS-880642YP
...
215
HEIGHT ADJ LEVER BS-880540YP
...
216
KNOB, Adjuster BS-881059YP
...
217
BRACKET, Height Adjuster BS-880959YP
...
300
BAFFLE, Front, 19 BS-880784BIYP
...
301
BAFFLE, Rear, 19 BS-880785YP
...
302
SCREW, PAN HEAD BS-880664YP
...
303
SCREW, Pan Head, Taptite, 1/4-15 x 5/8 BS-880804YP
...
304
SHROUD/LABEL BS-795171YP
...
305
SCREW, Hex Washer Head BS-694046
...
410
WASHER, Wave BS-7026257MA
...
800
SCREW, Hex Head, 3/8-16 x 1 BS-0025X6MA
...
801
BOLT - CRANK MOUNTING BS-880034YP
...
802
WASHER, Belleville BS-1101989MA
...
805
LOCKNUT BS-880020YP
...
808
NUT, CNTR LCK, 3/8-16 BS-703893
...
810
BOLT, Hex Key Head BS-880323YP
...
811
NUT M5, NYLON INS BS-880428YP
...
813
SCREW BS-880339YP
...
818
PUSHNUT, CAP, 1/4 BS-704005
...
819
SCREW BS-880577YP
...
823
BOLT SHOULDER BS-880651YP
...
824
NUT, HEX FLNG,5/16-18 BS-704067
...
830
SCREW , 5/16-18 x 3/4 BS-48901MA
...
900
PLUG, Mulch (Model 881272 Only) BS-880909YP
...
1000
DECAL KIT BS-700273YP
