product name

881020 Murray - MP450, 4.5TP 16" Walk Behind, CE (2010)

Model: 881020

Back To Assemblies

Save Part Not Listed?
product name

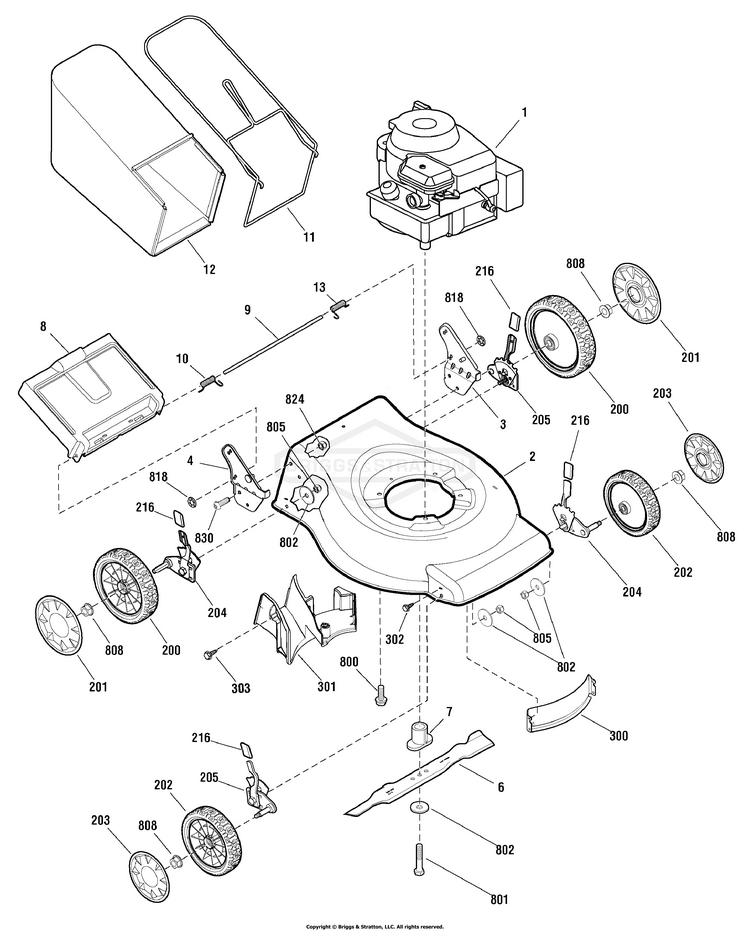

Deck & Engine Group

...
...
1
* ENGINE, 4.5GT Briggs & Stratton (Engine Model: 09T502-0130-B1) BS-09T502-0130-B1
...
2
MOWER HOUSING (Includes Ref. Nos. 300 & 302) BS-881119BIYP
...
3
BRACKET ASSEMBLY, Left Handle BS-880951AYP
...
4
BRACKET ASSEMBLY, Right Handle BS-880950AYP
...
6
BLADE, 16 BS-881076BZYP
...
7
BLADE ADAPTER - PUSH BS-880009YP
...
8
DOOR, Rear BS-880661YP
...
9
ROD, REAR DOOR 16 BS-880213YP
...
10
SPRING, Torsion Rear Door, Right BS-880942YP
...
11
FRAME ASSEMBLY (Red) BS-880944BNYP
...
11
FRAME ASSEMBLY (Black) BS-880944ZYP
...
12
BAG ASSEMBLY BS-880947YP
...
13
SPRING, Torsion Rear Door, Left BS-880943YP
...
200
WHEEL FRONT BS-880703YP
...
201
HUBCAP FRONT BS-880698YP
...
202
WHEEL FRONT BS-880702YP
...
203
HUBCAP FRONT - 150MM BS-880697YP
...
204
HEIGHT ADJ ASSY - LH BS-880106YP
...
205
HEIGHT ADJ ASSY - RH BS-880115YP
...
216
GRIP, Height Adjustment BS-880542YP
...
300
BAFFLE, Front, 16 BS-880794BIYP
...
301
BAFFLE, Rear, 16 BS-880793YP
...
302
SCREW, PAN HEAD BS-880664YP
...
303
SCREW, Pan Head, Taptite, 1/4-15 x 5/8 BS-880804YP
...
800
SCREW, Hex Head, 3/8-16 x 1 BS-0025X6MA
...
801
BOLT - CRANK MOUNTING BS-880034YP
...
802
WASHER, Belleville BS-1101989MA
...
805
LOCKNUT BS-880020YP
...
808
NUT, CNTR LCK, 3/8-16 BS-703893
...
809
SCREW-#10X.5 B W/WAS BS-26X245MA
...
818
PUSHNUT, CAP, 1/4 BS-704005
...
824
NUT, HEX FLNG,5/16-18 BS-704067
...
830
SCREW, 5/16-18 x 3/4 BS-48901MA
...
1000
DECAL KIT BS-700267YP
