880891X51N Murray - Murray Walk-Behind Mower, SP, Mulch, CE(2009)

Model: 880891X51N

Save Part Not Listed?
product name

Popular Parts

Popular Parts

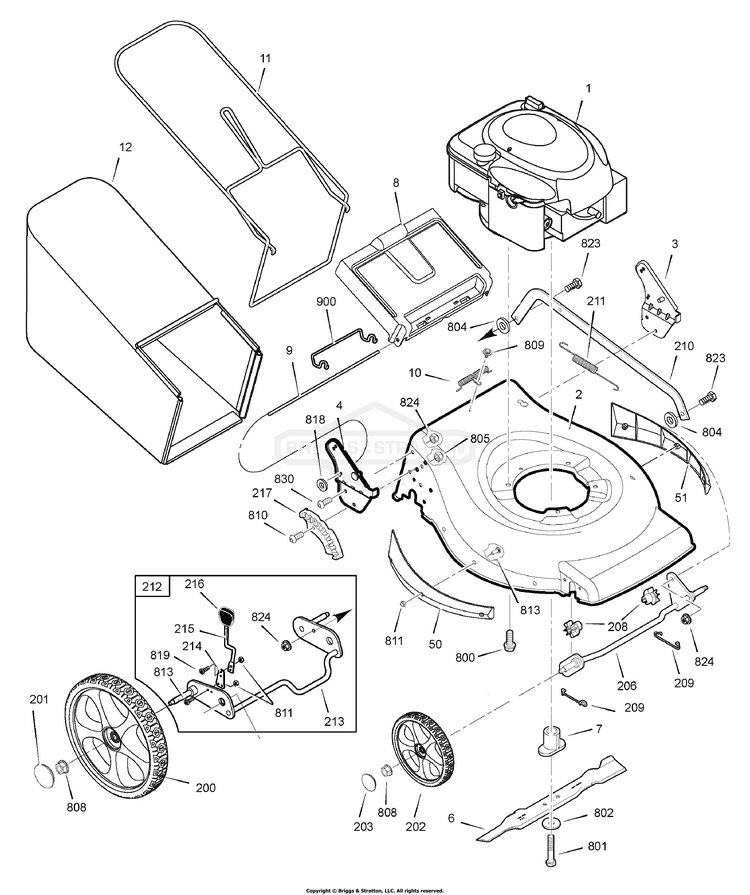

Deck & Engine Group

...
...
1
* ENGINE (Engine Model: 122T02-1795-B1) BS-122T02-1795-B1
...
2
MOWER HOUSING BS-880864YP
...
3
BRACKET ASSEMBLY, Left Handle BS-700141
...
4
BRACKET ASSEMBLY, Right Handle BS-700142
...
6
BLADE, 19 BS-880638BZYP
...
7
BLADE ADAPTER ASSY BS-880567YP
...
8
DOOR REAR 19 EU BL BS-700099YP
...
9
ROD, REAR DOOR 19 BS-880214YP
...
10
REAR DOOR - TORSION S BS-700001YP
...
11
FRAME ASSEMBLY BS-700208
...
12
BAG ASSEMBLY BS-700100
...
50
SIDE GUARD, Right BS-700226
...
51
SIDE GUARD, Left BS-700227
...
200
WHEEL ASSY BS-880695YP
...
201
HUBCAP, REAR - 305MM BS-880700YP
...
202
WHEEL ASSY BS-880707YP
...
203
HUBCAP, 5 SPOKE, SILVER BS-880701YP
...
206
FRONT CROSSBAR ASSY BS-880550YP
...
208
BUSHING -FRONT - SLA BS-880050YP
...
209
SPRING, CLIP CROSSBAR BS-881163YP
...
210
LIFTER LINK BS-881174AYP
...
211
HGT ADJ SPRING BS-880052YP
...
212
CROSSBAR ASSEMBLY, Rear BS-880854YP
...
213
REAR CROSSBAR BS-880855YP
...
214
SPRING, Adjuster BS-880642YP
...
215
HEIGHT ADJ LEVER BS-880540YP
...
216
KNOB, Adjuster BS-700172
...
217
BRACKET HEIGHT ADJUST BS-700224YP
...
800
SCREW, Hex Head, 3/8-16 x 1 BS-0025X6MA
...
801
BOLT - CRANK MOUNTING BS-880034YP
...
802
WASHER, Belleville BS-1101989MA
...
804
WASHER BS-880607YP
...
805
LOCKNUT BS-880020YP
...
808
NUT, CNTR LCK, 3/8-16 BS-703893
...
809
SCREW-#10X.5 B W/WAS BS-26X245MA
...
810
BOLT, Hex Key Head BS-880323YP
...
811
NUT M5, NYLON INS BS-880428YP
...
813
SCREW BS-880339YP
...
818
PUSHNUT, CAP, 1/4 BS-704005
...
819
SCREW BS-880577YP
...
823
BOLT SHOULDER BS-880651YP
...
824
NUT, HEX FLNG,5/16-18 BS-704067
...
830
SCREW , 5/16-18 x 3/4 BS-48901MA
...
900
SPRING CLIP, Rear Door BS-880910YP
...
1000
KIT-GROUND WIRE BS-700302
...
1001
MANUAL KIT BS-880904YP

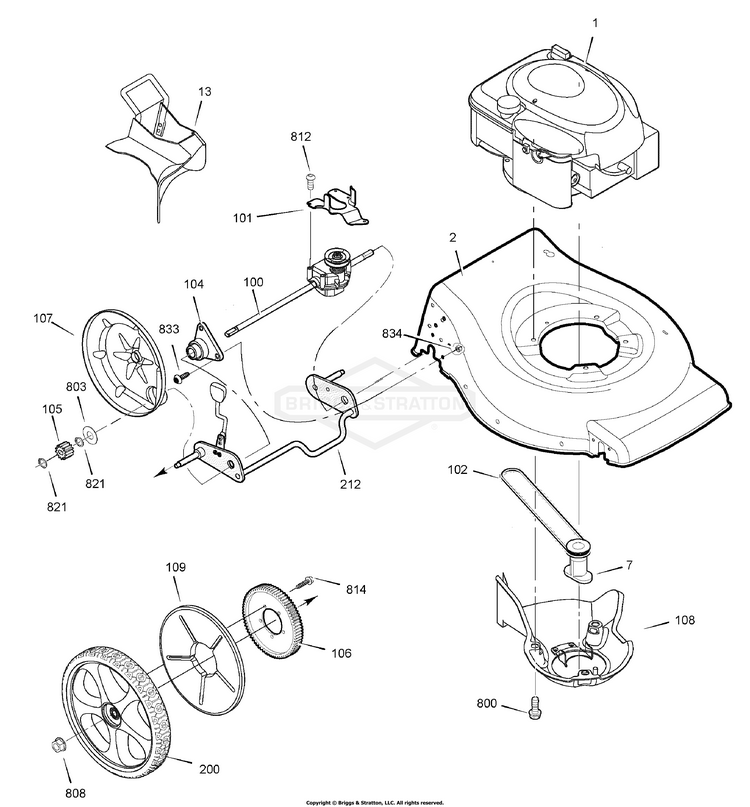

Drive Group

...
...
1
* ENGINE (Engine Model: 122T02-1795-B1) BS-122T02-1795-B1
...
2
MOWER HOUSING BS-880864YP
...
7
BLADE ADAPTER ASSY BS-880567YP
...
13
MULCHING PLUG - 19 S BS-700129YP
...
100
TRANSMISSION BS-880604YP
...
101
BELT GUIDE TRANS BS-880282YP
...
102
BELT - DRIVE BS-880268YP
...
104
SLEEVE ASSEMBLY, Rear Axle BS-880787YP
...
105
GEAR PINION BS-880527YP
...
106
GEAR DRIVE BS-880526YP
...
107
DUST COVER BS-880528YP
...
108
BELT COVER ASSY BS-700234YP
...
109
COVER HI-WHEEL BS-880539YP
...
200
WHEEL ASSY BS-880695YP
...
212
CROSSBAR ASSEMBLY, Rear BS-880854YP
...
800
SCREW, Hex Head, 3/8-16 x 1 BS-0025X6MA
...
803
WASHER, THRUST LG BS-880324YP
...
808
NUT, CNTR LCK, 3/8-16 BS-703893
...
812
SCREW, #10 x 1 BS-880760YP
...
814
SCREW, 1/4-15 x 3/4 BS-26X296MA
...
821
RING EXT RETAINING BS-880269YP
...
833
SCREW, Torx, 1/4-20 x 5/8 BS-880845YP
...
834
NUT, Flange Lock, 1/4-20 BS-880859YP

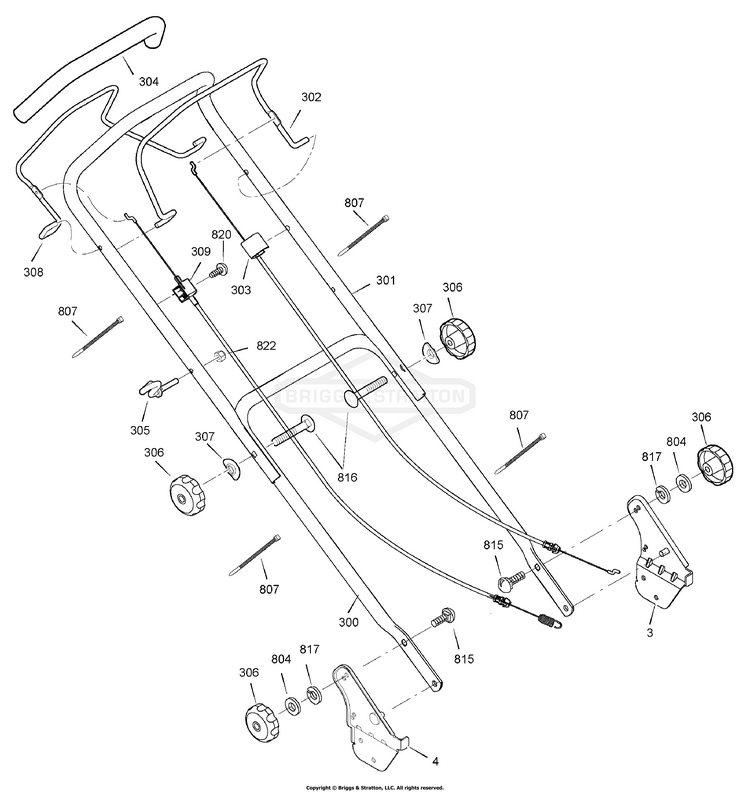

Handle Assembly

...
...
3
BRACKET ASSEMBLY, Left Handle BS-700141
...
4
BRACKET ASSEMBLY, Right Handle BS-700142
...
300
HANDLE LOWER BS-880571AYP
...
301
HANDLE UPPER 19 BS-880210AYP
...
302
LEVER, Engine Stop BS-700186
...
303
CABLE ENGINE STOP BS-880639YP
...
304
TUBING FOAM BS-880591YP
...
305
GUIDE, Rope BS-672510MA
...
306
KNOB, 5/16-18 BS-700145
...
307
WASHER BS-880615YP
...
308
LEVER, Drive BS-700192
...
309
CABLE, DRIVE, 19 BS-880297YP
...
804
WASHER BS-880607YP
...
807
TIES - CABLE BS-880029YP
...
815
BOLT CARRIGE BS-880576YP
...
816
BOLT, Carriage, 5/16-18 x 2 BS-002X77MA
...
817
WASHER, Lock BS-22129GS
...
820
SCREW, Tap, #10 x 1-1/4 BS-26X256MA
...
822
NUT, 1/4-20, NYLOCK BS-703232
