880418X51N Murray - Murray Walk-Behind Mower, CE (2009)

Model: 880418X51N

Save Part Not Listed?
product name

Popular Parts

Popular Parts

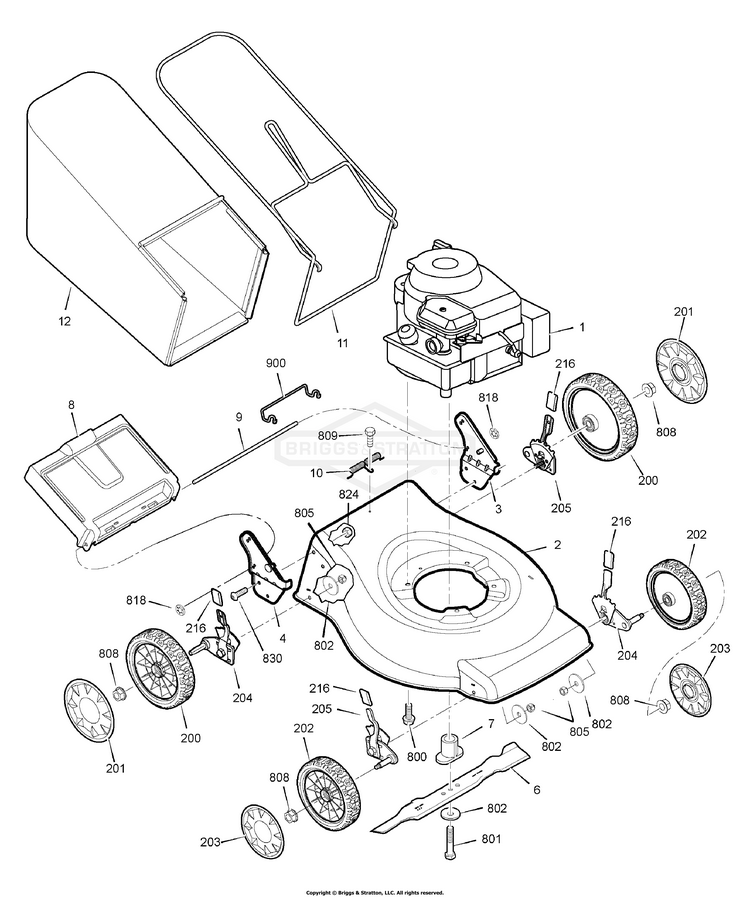

Deck & Engine Group

...
...
1
* ENGINE (Engine Model: 09T502-0130-B1) BS-09T502-0130-B1
...
2
HOUSING ASSEMBLY BS-700140
...
3
BRACKET ASSEMBLY, Left Handle BS-700141
...
4
BRACKET ASSEMBLY, Right Handle BS-700142
...
6
BLADE, 16 BS-881076BZYP
...
7
BLADE ADAPTER - PUSH BS-880009YP
...
8
DOOR REAR 16 EU BL BS-700089YP
...
9
ROD, REAR DOOR 16 BS-880213YP
...
10
REAR DOOR - TORSION S BS-700001YP
...
11
FRAME ASSEMBLY BS-700159
...
12
GRASS CATCHER ASSY - BS-700041YP
...
200
WHEEL FRONT BS-880703YP
...
201
HUBCAP FRONT BS-880698YP
...
202
WHEEL FRONT BS-880702YP
...
203
HUBCAP FRONT - 150MM BS-880697YP
...
204
HEIGHT ADJ ASSY - LH BS-880106YP
...
205
HEIGHT ADJ ASSY - RH BS-880115YP
...
216
GRIP, Height Adjustment BS-880542YP
...
800
SCREW, Hex Head, 3/8-16 x 1 BS-0025X6MA
...
801
BOLT - CRANK MOUNTING BS-880034YP
...
802
WASHER, Belleville BS-1101989MA
...
805
LOCKNUT BS-880020YP
...
808
NUT, CNTR LCK, 3/8-16 BS-703893
...
809
SCREW-#10X.5 B W/WAS BS-26X245MA
...
818
PUSHNUT, CAP, 1/4 BS-704005
...
824
NUT, HEX FLNG,5/16-18 BS-704067
...
830
SCREW , 5/16-18 x 3/4 BS-48901MA
...
900
SPRING CLIP, Rear Door BS-880910YP
...
1000
DECAL KIT BS-700267
...
1001
MANUAL KIT BS-880900YP

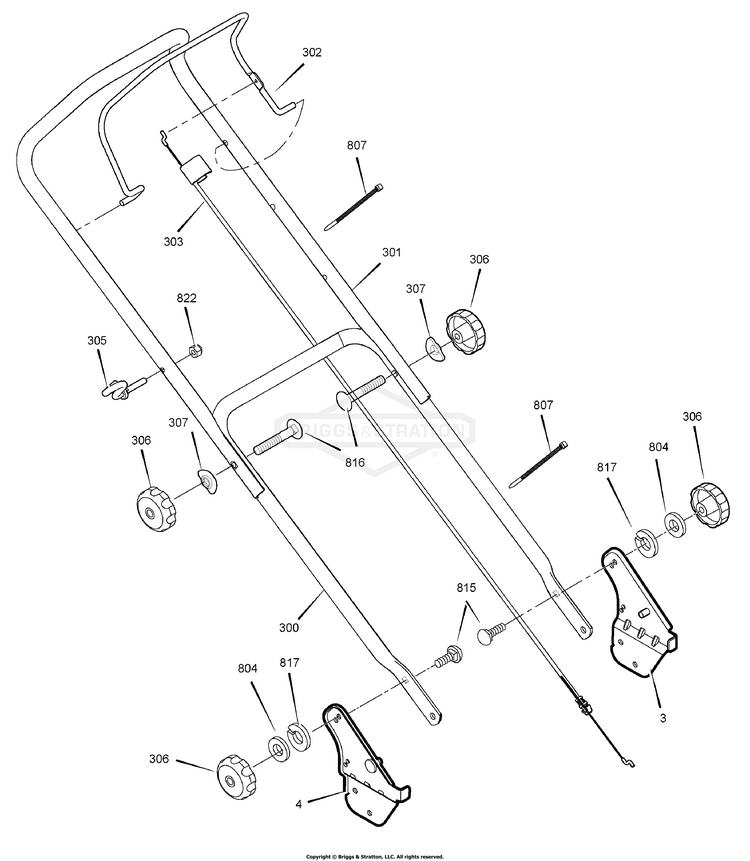

Handle Assembly

...
...
300
HANDLE LOWER BS-880608AYP
...
301
HANDLE UPPER BS-880470AYP
...
302
LEVER, Engine Stop BS-700157
...
303
CABLE ENGINE STOP BS-880279YP
...
305
GUIDE, Rope, 1/4-20 BS-672510MA
...
307
WASHER, Formed BS-700418
...
306
KNOB, 5/16-18 BS-700145
...
804
WASHER BS-880607YP
...
807
TIES - CABLE BS-880029YP
...
815
BOLT CARRIGE BS-880576YP
...
816
BOLT, Carriage, 5/16-18 x 2 BS-002X77MA
...
817
WASHER, Lock BS-22129GS
...
822
NUT, 1/4-20, NYLOCK BS-703232
