product name

8779-0 Briggs and Stratton Portable Generator DPG850, 750 Watt Domestic

Model: 8779-0

Save Part Not Listed?
product name

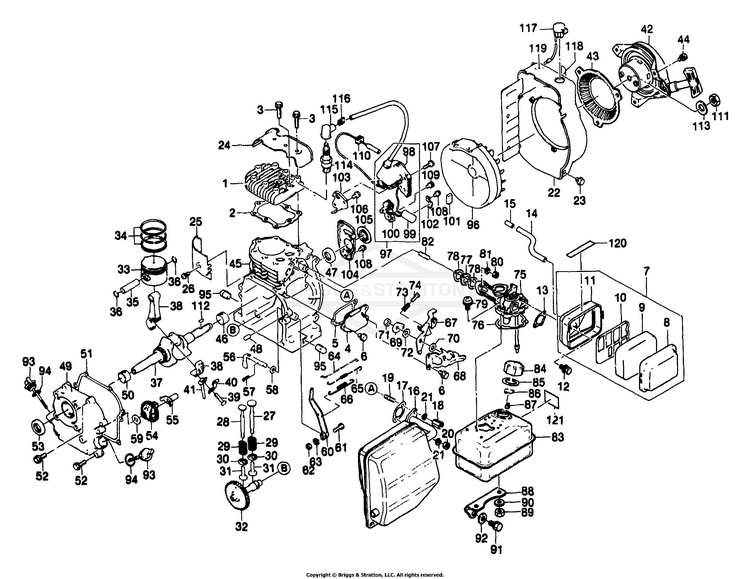

4-Cycle Kawasaki Engine Model Nbr. FA76D-3MP

...
...
1
HEAD, Cylinder Contact Generac for quantity required BS-00710161892
...
2
GASKET, Cylinder Head Contact Generac for quantity required BS-00710161892
...
3
BOLT - 6 x 40 mm Contact Generac for quantity required BS-00710361892
...
4
COVER, Inspection Contact Generac for quantity required BS-00710461892
...
5
GASKET Contact Generac for quantity required BS-00710561892
...
6
BOLT 6 x 12 mm Contact Generac for quantity required BS-00710661892
...
7
ASSEMBLY, Air Cleaner (Consists of Items 8-11) - Contact Generac for quantity required BS-00710761892
...
8
COVER, Air Cleaner Contact Generac for quantity required BS-00710861892
...
9
ELEMENT, Air Cleaner Contact Generac for quantity required BS-00710961892
...
10
PLATE, Air Cleaner Contact Generac for quantity required BS-00711061892
...
11
CASE, Air Cleaner Contact Generac for quantity required BS-00711161892
...
12
BOLT Contact Generac for quantity required BS-00711261892
...
13
GASKET Contact Generac for quantity required BS-00711361892
...
14
TUBE, Rubber Contact Generac for quantity required BS-00711461892
...
15
PIPE Contact Generac for quantity required BS-00711561892
...
16
MUFFLER, Exhaust Contact Generac for quantity required BS-00761893
...
17
GASKET, Exhaust Contact Generac for quantity required BS-00763042
...
18
NUT Contact Generac for quantity required BS-00711861892
...
19
STUD Contact Generac for quantity required BS-00711961892
...
20
NUT - 6 mm Contact Generac for quantity required BS-00712061892
...
21
WASHER Contact Generac for quantity required BS-00712161892
...
22
CASE, Spiral Contact Generac for quantity required BS-00712261892
...
23
BOLT - 6 x 10 mm Contact Generac for quantity required BS-00712361892
...
24
COVER, Cylinder Head Contact Generac for quantity required BS-00712461892
...
25
COVER, Cylinder Contact Generac for quantity required BS-00712561892
...
26
SCREW - 5 x 10 mm Contact Generac for quantity required BS-00712661892
...
27
VALVE, Intake Contact Generac for quantity required BS-00712761892
...
28
VALVE, Exhaust Contact Generac for quantity required BS-00712861892
...
29
SPRING, Valve Contact Generac for quantity required BS-00712961892
...
30
SEAT, Valve Spring Contact Generac for quantity required BS-00713061892
...
31
TAPPET Contact Generac for quantity required BS-00713161892
...
32
GEAR, Cam Contact Generac for quantity required BS-00713261892
...
33
PISTON Contact Generac for quantity required BS-00713361892
...
34
SET, Piston Ring Contact Generac for quantity required BS-00713461892
...
35
PIN, Piston Contact Generac for quantity required BS-00713561892
...
36
RING, Snap Contact Generac for quantity required BS-00713661892
...
37
CRANKSHAFT Contact Generac for quantity required BS-00713761892
...
38
ROD ASSEMBLY, Connecting (Includes Item 39) - Contact Generac for quantity required BS-00713861892
...
39
BOLT, Connecting Rod Contact Generac for quantity required BS-00713961892
...
40
WASHER, Lock Contact Generac for quantity required BS-00714061892
...
41
ARM, Splash Contact Generac for quantity required BS-00714161892
...
42

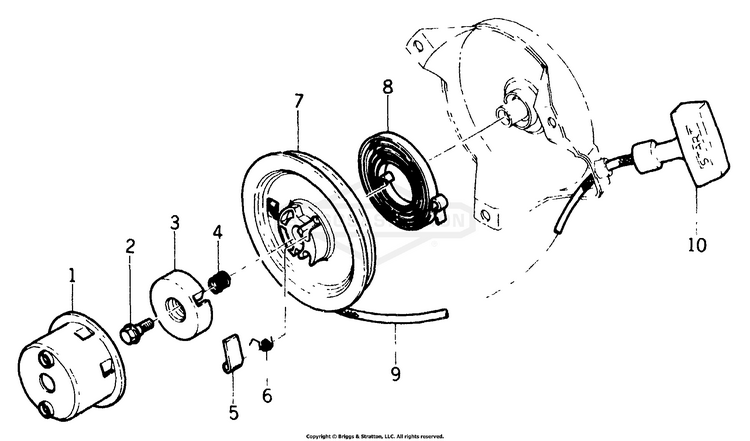

STARTER ASSEMBLY, Recoil Contact Generac for quantity required BS-00714261892
...
43
SCREEN Contact Generac for quantity required BS-00714361892
...
44
BOLT - 6 x 10 mm Contact Generac for quantity required BS-00714461892
...
45
ASSEMBLY, Crankcase (Includes Item 46) - Contact Generac for quantity required BS-00714561892
...
46
BEARING, Plain Contact Generac for quantity required BS-00714661892
...
47
SEAL, Oil Contact Generac for quantity required BS-00714761892
...
48
PIN, Dowel Contact Generac for quantity required BS-00714861892
...
49
ASSEMBLY, Side Base (Includes Item 50) - Contact Generac for quantity required BS-00714961892
...
50
BEARING, Plain Contact Generac for quantity required BS-00714661892
...
51
GASKET Contact Generac for quantity required BS-00715061892
...
52
BOLT - 6 x 22 mm Contact Generac for quantity required BS-00715161892
...
53
SEAL, Oil Contact Generac for quantity required BS-00714761892
...
54
ASSEMBLY, Governor Contact Generac for quantity required BS-00715261892
...
55
SLEEVE, Governor Contact Generac for quantity required BS-00715361892
...
56
TIP, Governor Contact Generac for quantity required BS-00715461892
...
57
PIN, Snap Contact Generac for quantity required BS-00715581892
...
58
WASHER Contact Generac for quantity required BS-00712161892
...
59
WASHER Contact Generac for quantity required BS-00715661892
...
60
ARM, Governor (Includes Items 61, 62, 63) - Contact Generac for quantity required BS-00715761892
...
61
BOLT - 6 x 25 mm Contact Generac for quantity required BS-00715861892
...
62
NUT - 6 mm Contact Generac for quantity required BS-00712061892
...
63
WASHER Contact Generac for quantity required BS-00715961892
...
64
LINK, Governor Contact Generac for quantity required BS-00716061892
...
65
SPRING, Link Contact Generac for quantity required BS-00716161892
...
66
SPRING, Governor Contact Generac for quantity required BS-00716261892
...
67
LEVER, Control Contact Generac for quantity required BS-00716361892
...
68
BRACKET Contact Generac for quantity required BS-00716461892
...
69
PLATE Contact Generac for quantity required BS-00716561892
...
70
WASHER Contact Generac for quantity required BS-00716661892
...
71
NUT Contact Generac for quantity required BS-00716761892
...
72
SPRING Contact Generac for quantity required BS-00716861892
...
73
SPRING Contact Generac for quantity required BS-00716961892
...
74
SCREW - 4 x 20 mm Contact Generac for quantity required BS-00717061892
...
75
ASSEMBLY, Carburetor Contact Generac for quantity required BS-00717161892
...
76
GASKET Contact Generac for quantity required BS-00717261892
...
77
INSULATOR Contact Generac for quantity required BS-00717361892
...
78
GASKET Contact Generac for quantity required BS-00717461892
...
79
SCREW - 5 x 25 mm Contact Generac for quantity required BS-00717561892
...
80
NUT - 6 mm Contact Generac for quantity required BS-00712061892
...
81
WASHER Contact Generac for quantity required BS-00715961892
...
82
STUD Contact Generac for quantity required BS-00717661892
...
83
ASSEMBLY, Fuel Tank (Includes Items 84-87) - Contact Generac for quantity required BS-00717761892
...
84
CAP, Fuel Tank Contact Generac for quantity required BS-00717861892
...
85
GASKET Contact Generac for quantity required BS-00717961892
...
86
SPRING Contact Generac for quantity required BS-00718061892
...
87
SCREW Contact Generac for quantity required BS-00718161892
...
88
BRACKET, Fuel Tank Contact Generac for quantity required BS-00718261892
...
89
NUT - 8 mm Contact Generac for quantity required BS-00718361892
...
90
WASHER Contact Generac for quantity required BS-00718461892
...
91
BOLT - 6 x 12 mm Contact Generac for quantity required BS-00718561892
...
92
WASHER Contact Generac for quantity required BS-00718661892
...
93
DIPSTICK, Oil Contact Generac for quantity required BS-00718761892
...
94
O-Ring Contact Generac for quantity required BS-00718861892
...
95
PLUG, Drain Contact Generac for quantity required BS-00718961892
...
96
FLYWHEEL Contact Generac for quantity required BS-00719061892
...
97
COIL ASSEMBLY, Ignition (Includes Items 98-100) - Contact Generac for quantity required BS-00719161892
...
98
COIL, Ignition Contact Generac for quantity required BS-00719261892
...
99
CONDENSOR Contact Generac for quantity required BS-00719361892
...
100
BREAKER, Contact Contact Generac for quantity required BS-00719461892
...
101
BRUSH Contact Generac for quantity required BS-00719561892
...
102
CLAMP Contact Generac for quantity required BS-00719661892
...
103
BRACKET Contact Generac for quantity required BS-00719761892
...
104
COVER, Breaker Contact Generac for quantity required BS-00719861892
...
105
RING Contact Generac for quantity required BS-00719961892
...
106
BOLT - 5 x 10 mm Contact Generac for quantity required BS-00720061892
...
107
BOLT - 5 x 20 mm Contact Generac for quantity required BS-00720161892
...
108
SCREW - 4 x 8 mm Contact Generac for quantity required BS-00720261892
...
109
SCREW - 4 x 10 mm Contact Generac for quantity required BS-00720361892
...
110
GROMMET Contact Generac for quantity required BS-00720461892
...
111
NUT - 12 mm Contact Generac for quantity required BS-00720561892
...
112
KEY Contact Generac for quantity required BS-00720661892
...
113
WASHER Contact Generac for quantity required BS-00720761892
...
114
SPARK PLUG Contact Generac for quantity required BS-00720861892
...
115
CAP, Plug Contact Generac for quantity required BS-00720961892
...
116
SPRING Contact Generac for quantity required BS-00721061892
...
117
SWITCH, On-Off Contact Generac for quantity required BS-00721161892
...
118
DECAL Contact Generac for quantity required BS-00721261892
...
119
DECAL Contact Generac for quantity required BS-00721361892
...
120
DECAL Contact Generac for quantity required BS-00721461892
...
121
DECAL Contact Generac for quantity required BS-00721561892

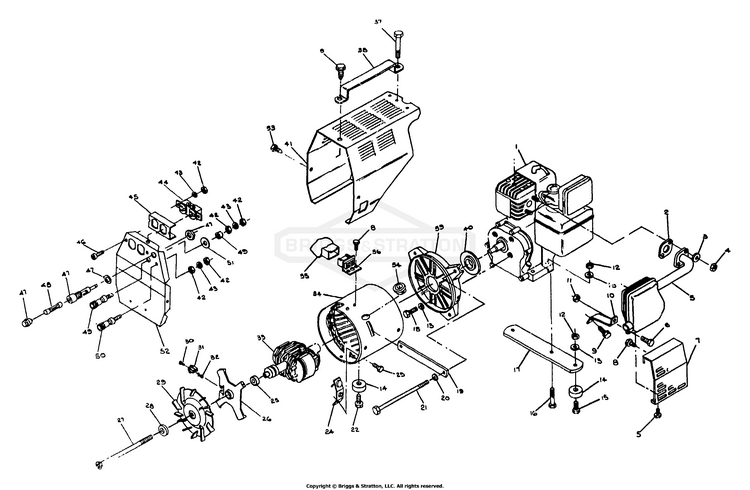

AC Generator

...
...
1
ENGINE ASSEMBLY BS-00761892
...
2
GASKET, Exhaust BS-00763042
...
3
WASHER, Flat - M6 BS-00722473
...
4
NUT, Hex - M6-1.00 BS-00749813
...
5
MUFFLER, Exhaust BS-00761893
...
6
CAPSCREW, Hex Head - M6-1.00 x 12 mm BS-00743116
...
7
SHIELD, Heat BS-00763027
...
8
SCREW (Crimptite) - No. 10-24 x 3/8" BS-00756892
...
9
SCREW (Crimptite) - 1/4"-20 BS-00758442
...
10
SUPPORT, Exhaust Muffler BS-00783018
...
11
NUT, Flanged - M6-1.00 BS-00752857
...
12
NUT, Hex - 5/16"-18 BS-00722259
...
13
WASHER, Lock - 5/16" BS-00722129
...
14
MOUNT, Vibration BS-00763015
...
15
CAPSCREW, Hex Head - 5/16"-18 x 3/4" BS-00722142
...
16
CAPSCREW, Hex Head - 5/16"-18 x 1 1/2" BS-00722283
...
17
SUPPORT, Engine BS-00763012
...
18
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-00722336
...
19
BAR, Stator Bolt BS-00744338
...
20
WASHER, Lock - 1/4" BS-00722097
...
21
CAPSCREW, Hex Head - 1/4"-20 x 5" BS-00744395J
...
22
SCREW (Taptite) - 1/4"-20 x 1/2" BS-00729026
...
23
SCREW (Taptite) - No. 10-32 x 3/8" BS-00724489
...
24
DIODE ASSEMBLY BS-00744722
...
25
BEARING, Ball BS-00724049
...
26
PLATE, Bearing Carrier BS-00744943
...
27
BOLT, Rotor BS-00763010
...
28
WASHER - Special BS-00763011
...
29
FAN BS-00744331
...
30
SCREW (Sims) - No. 6-32 x 1/4" BS-00725105
...
31
HOLDER, Brush BS-00723877D
...
32
BRUSH BS-007A24044A
...
33
ROTOR ASSEMBLY BS-00763016
...
34
STATOR ASSEMBLY BS-00763017
...
35
RECTIFIER ASSEMBLY, Bridge BS-00728293
...
36
SUPPORT, Bridge Rectifier BS-00751721
...
37
SCREW, Hex Head Machine - M6-1.00 x 45 mm (Grade 5) BS-00751767
...
38
HANDLE, Carrying BS-00763013
...
39
HOUSING, Adapter BS-00762257
...
40
RING, Adapter BS-00762258
...
41
WRAPPER, Generator BS-00763803
...
42
NUT, Hex - No. 8-32 BS-00722471
...
43
WASHER, Lock - No. 8 BS-00722264
...
44
RECEPTACLE - "Duplex" 120 VAC BS-00763025
...
45
INSULATOR BS-00763024
...
46
SCREW, Pan Head Machine - No. 8-32 x 3/8" BS-00728985
...
47
HOLDER, Fuse BS-00732300
...
48
FUSE, Battery Charging - 30 Ampere BS-00722668
...
49
POST, Battery Charge Terminal - Red BS-00725367
...
50
POST, Battery Charge Terminal - Black BS-00725368
...
51
WASHER, Fiber BS-00730798
...
52
PANEL, End BS-00763602
...
53
SCREW (Crimptite) - No. 8-18 x 3/8" BS-00763036
...
54
BUSHING BS-00723484D
...
MANUAL, Instructions and Parts BS-00763806
...
CABLE, Battery Charging BS-007A25383

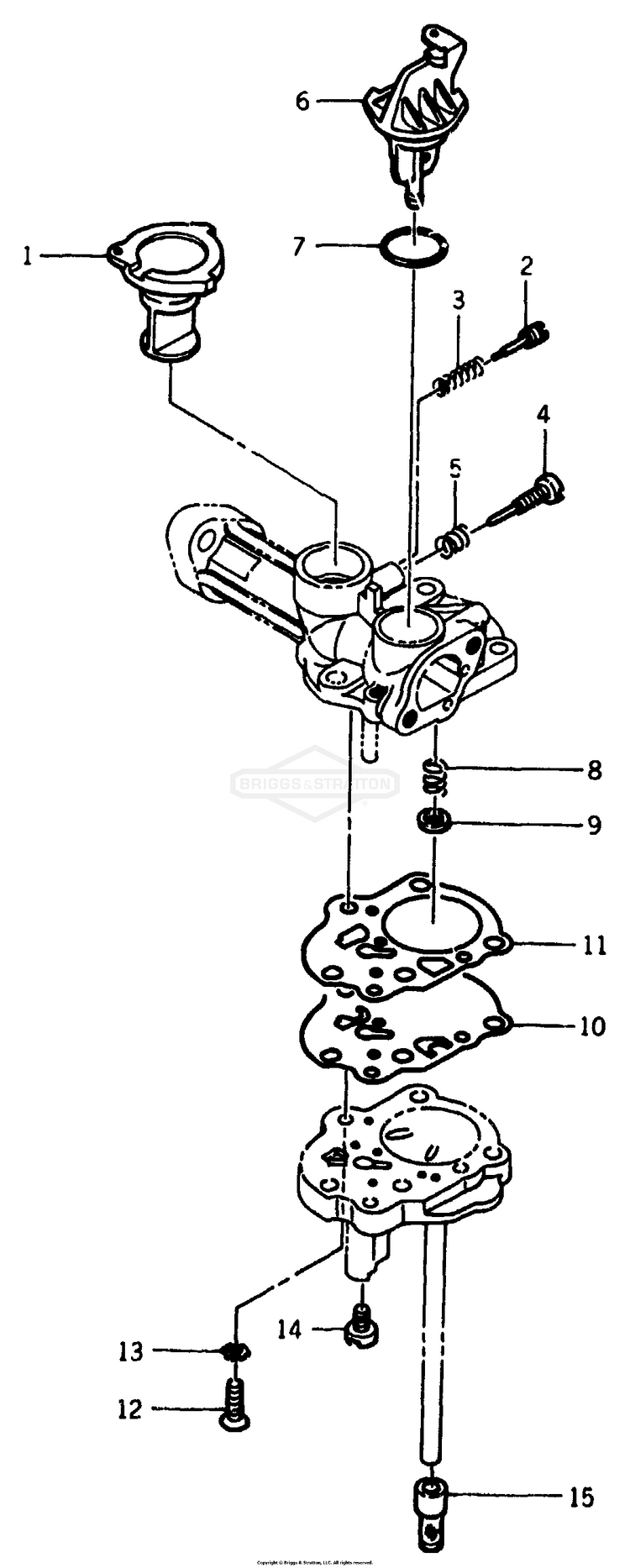

Carburetor For 1.6 Horsepower Kawasaki Engine

...
...
CARBURETOR ASSEMBLY (Included Items 1 thru 15) - Contact Generac for quantity required BS-00717161892
...
1
SHAFT, Throttle Contact Generac for quantity required BS-00721661892
...
2
SCREW, Adjustment Contact Generac for quantity required BS-00721761892
...
3
SPRING Contact Generac for quantity required BS-00721861892
...
4
SCREW, Idle Speed Stop Contact Generac for quantity required BS-00721961892
...
5
SPRING Contact Generac for quantity required BS-00722061892
...
6
SHAFT, Choke Contact Generac for quantity required BS-00722161892
...
7
O-RING Contact Generac for quantity required BS-00722261892
...
8
SPRING Contact Generac for quantity required BS-00722361892
...
9
CAP, Spring Contact Generac for quantity required BS-00722461892
...
10
DIAPHRAGM Contact Generac for quantity required BS-00722561892
...
11
GASKET Contact Generac for quantity required BS-00722661892
...
12
SCREW Contact Generac for quantity required BS-00722761892
...
13
WASHER Contact Generac for quantity required BS-00722861892
...
14
JET, Main - No. 54 Contact Generac for quantity required BS-00722961892
...
15
STRAINER Contact Generac for quantity required BS-00723061892

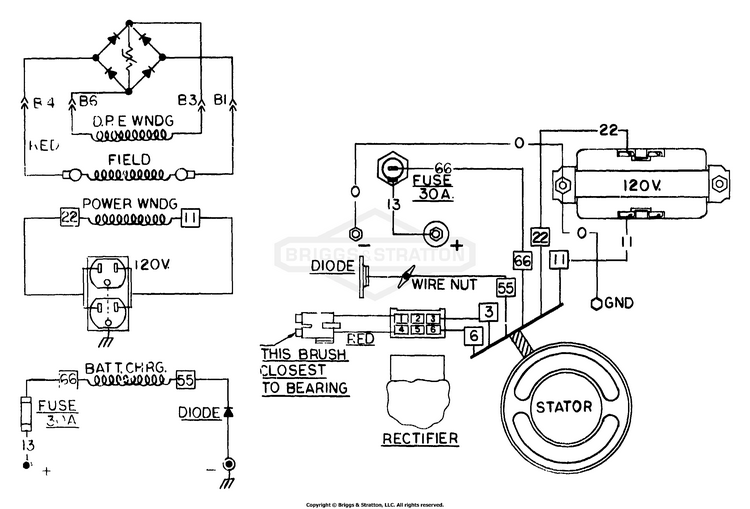

Electrical Schematic/Wiring Diagram

...

No Parts Available for this Schematic

Recoil Starter

...
...
ASSEMBLY, Recoil Starter (Includes Items 1-10) - Contact Generac for quantity required BS-00714261892
...
1
PULLEY Contact Generac for quantity required BS-00723161892
...
2
BOLT Contact Generac for quantity required BS-00723261892
...
3
RETAINER Contact Generac for quantity required BS-00723361892
...
4
SPRING Contact Generac for quantity required BS-00723461892
...
5
PAWL, Recoil Contact Generac for quantity required BS-00723561892
...
6
SPRING, Return Contact Generac for quantity required BS-00723661892
...
7
REEL, Recoil Contact Generac for quantity required BS-00723761892
...
8
SPRING, Recoil Contact Generac for quantity required BS-00723861892
...
9
ROPE - 4 x 1120 mm Contact Generac for quantity required BS-00723961892
...
10
HANDLE, Recoil Starter Contact Generac for quantity required BS-00724061892
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
Shopper Approved
USA Today Champions 2025
BBB Accredited
Newsweek Best Online Shops 2025
Google Reviews
Processing
