8753-0 Briggs and Stratton Portable Generator GE5550XR, 5,000 Watt

Model: 8753-0

Save Part Not Listed?
product name

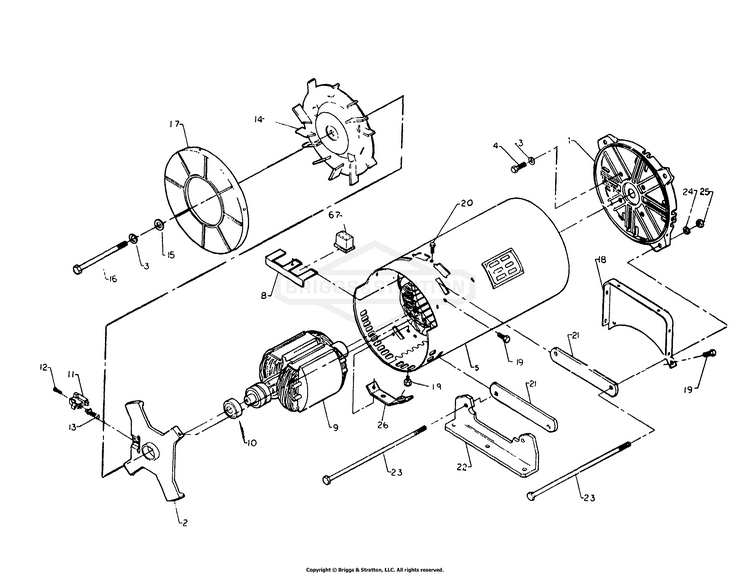

Alternator

...
...
1
HOUSING, Engine Adapter BS-43873
...
2
CARRIER, Rear Bearing BS-44943
...
3
WASHER, Lock BS-22129GS
...
4
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-22336
...
5
Stator 5000 Watt Units Only BS-44961L
...
6
HOUSING, Receptacle BS-22694GS
...
7
HOUSING, Receptacle (Red) BS-43994
...
8
RETAINER, Receptacle Housing BS-46079
...
9
ROTOR - 5000 Watt Units Only BS-44391E
...
10
BEARING, Rotor BS-24049
...
11
HLDR, BRUSH, UNIV BS-23877DGS
...
12
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
13
ASSY, BRUSH BS-A24044AGS
...
14
FAN, Generator Cooling BS-44331
...
15
Washer, .34 x 1 x 10 BS-50190GS
...
16
NUT BS-5025254FS
...
17
CVR, FAN, PLSTC BS-44357GS
...
18
(C) WELD PIVOT ARM BS-7043874YP
...
19
SCREW - No. 10-32 x 3/8" BS-24489
...
20
SCREW - No. 10-32 x 1/2" BS-21413
...
21
BAR, Stator Retaining Bolt BS-44338
...
22
SUPPORT, Rear Alternator BS-44392B
...
23
BOLT, Stator Retaining - 11.87" long BS-44395B
...
24
CAP BS-5022097SM
...
25
NUT, Hex - 1/4"-20 BS-22127
...
26
PLATE, Diode BS-44722

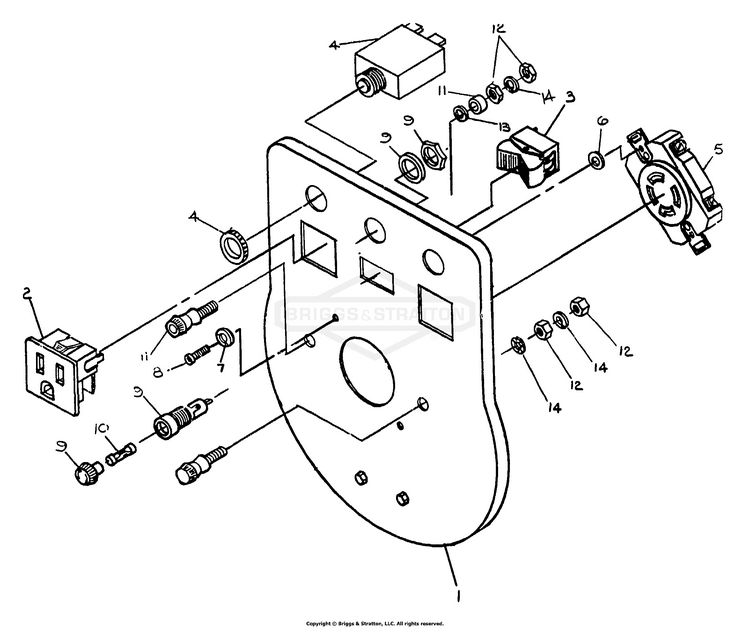

Control Panel

...
...
1
PANEL (Silkscreened)-Model 8709 BS-45084DC
...
2
SWITCH, PTO, DPDT BS-7022693YP
...
3
SWITCH, Start/Stop - Model 8709 Not used on this model BS-33874
...
SWITCH, ROCKER, SPST Not used on this model BS-33868GS
...
4
BREAKER, Circuit - 15 Ampere BS-56286
...
5
PLUG-120/240V TL20A BS-100522GS
...
6
WASHER, Nylon BS-45805
...
7
PULLEY, PUMP DRIVE BS-5022155SM
...
8
SCREW, Phillips Pan Head Machine No. 6-32 x 3/8" long BS-36901
...
9
HOLDER, Fuse BS-22669
...
10
FUSE - 30 Ampere BS-22668
...
11
BOLT, 5/8-11 x 5 BS-5025361
...
12
NUT, #8-32 BS-22471GS
...
13
WASHER, Fiber BS-30768
...
14
WASHER, Lock - No. 8 BS-26579
...
15
POST, Terminal - Negative Battery Charge BS-25368
...
CABLE, Battery Charging BS-A25383
...
PLUG-120/240V TL20A BS-100522GS

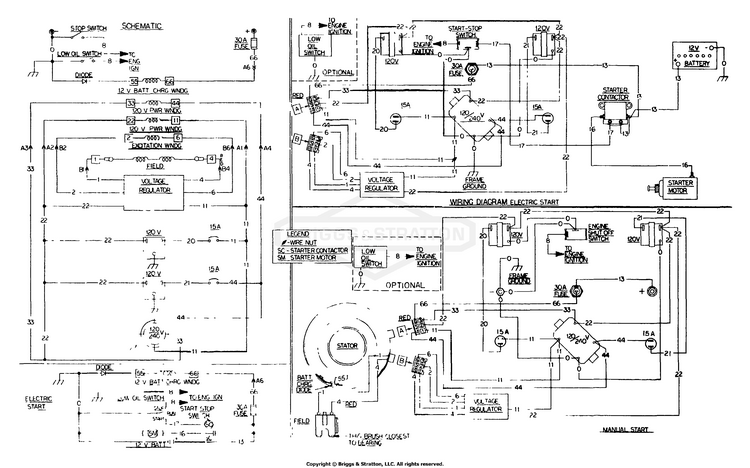

Electrical Schematic And Wiring Diagram

...

No Parts Available for this Schematic

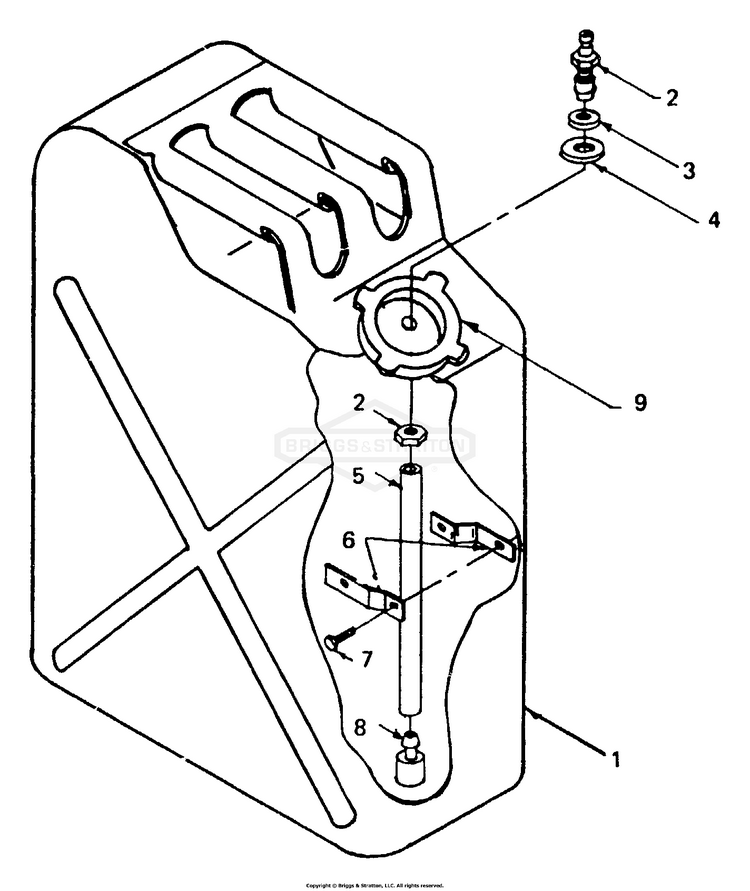

Fuel Tank

...
...
1
5 Gallon Fuel Tank (without item 2 thru 9) BS-43413
...
5 Gallon Fuel Tank (complete with fittings) BS-50543
...
2
Quick Disconnect, Male BS-50541
...
3
WASHER, 3/8 SAE BS-43441
...
4
Stroke Arm BS-5043442B
...
5
HOSE, Fuel BS-47662Y
...
6
RETAINER, Fuel Line BS-50540
...
7
SCREW, No. 10-32 Taptite BS-46852
...
8
PICK-UP-FUEL BS-43434
...
9
CAP, Filler BS-50542

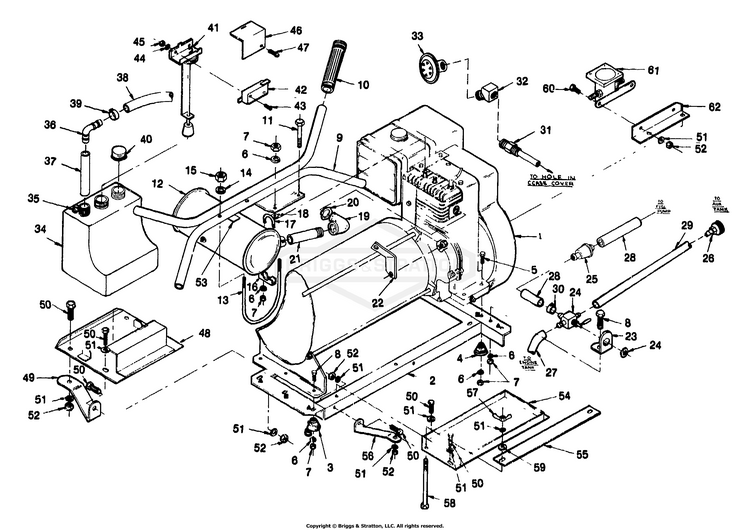

Mounting Base

...
...
1
ENGINE - 11 Horse power, Manual Start BS-50954
...
ENGINE - 11 Horse power, Electric Start BS-50956
...
2
BASE, Mounting BS-51967
...
3
DEFLECTOR 26-30 (with Loop) BS-7025047YP
...
4
SPRING, Mounting (without Loop) BS-23594
...
5
BOLT, 5/16-18 X 1-3/4 BS-5025011X14SM
...
6
WASHER, Lock BS-22129GS
...
7
NUT, 5/16-18 HEX BS-5025032SM
...
8
CAPSCREW, Hex Head - 5/16"-18 x 1" BS-22125
...
9
Brake Lever Weldment (10, 11 Horse power engines only) BS-5043985
...
10
NUT BS-5025094YP
...
11
CAPSCREW, Hex Head - 5/16"-18 x 2-3/4" (Used with 10, 11 Horse power engines only) BS-24246
...
12
MUFFLER, Exhaust BS-43951
...
13
(C) FITTING 90 DEG W BS-7027110YP
...
14
LOCKWASHER, SPLIT 3/8 BS-703454
...
15
DECAL, ProCut Z Text BS-5022241
...
16
PLATE LWR PULLEY BS-7028237YP
...
17
U-BOLT, Muffler Clamp BS-28238
...
19
ELBOW, 90 degree - 1" NPT (For 10, 11 Horse power engines only) BS-25765
...
20
NUT, PIPE, 1 IN, LOCK (For 10, 11 Horse power engines only) BS-26772GS
...
21
NIPPLE, Pipe - 1" NPT x 6" long (For 10, 11 Horse power engines only) BS-25435
...
22
(C) DECAL PRO CRUISE (For 10, 11 Horse power engines only) BS-7045122YP
...
23
DECK LIFT ROD-RH BS-5047498B
...
24
VALVE, Dual Fuel Selector BS-47797
...
25
FILTER, Fuel BS-47294
...
26
DISCONNECT, Quick BS-30288
...
27
HOSE, Fuel - 18" long (For 10, 11 Horse power engines only) BS-47662Y
...
28
HOSE, Fuel - 14" long (For 10, 11 Horse power engines only) BS-47662AA
...
29
HOSE, 1/4 X 24 IN, SRV (For 10, 11 Horse power engines only) BS-47662GS
...
30
CLAMP, Hose BS-48031C
...
31
PROBE, Oil Makeup (For 10, 11 Horse power engines only) BS-50962
...
32
ELBOW, 45 degrees - 1/4" NPT BS-50961
...
33
PUMP, Oil Makeup BS-46509
...
34
Safety handle - left BS-5048084
...
35
CLAMP, Hose BS-35472
...
36
ELBOW, Barbed 90 degree - 3/8" x 3/8" BS-49099
...
38
HOSE, Oil - 15" long BS-47662AD
...
39
CLAMP, Hose BS-48031E
...
40
CAP, Oil Makeup Tank BS-31449
...
41
HOUSING, Low Oil Level Switch BS-48714
...
42
MICRO-SWITCH, Low Oil Level BS-30283
...
43
SCREW, Round Head Machine - No. 4-40 x 5/8" BS-27770
...
44
WASHER, Lock - No. 4 BS-27772
...
45
NUT, Hex - No. 4-40 BS-27771
...
46
ENGINE MOUNT-RH BS-5046908
...
47
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
48
BASE, Oil Makeup Tank BS-49344
...
49
SUPPORT, Oil Tank BS-48827
...
50
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
51
CAP BS-5022097SM
...
52
NUT, Hex - 1/4"-20 BS-22127
...
53
SHIELD, Heat BS-37893
...
54
ROD, Brake Actuator BS-5044949
...
55
CONTROL, Hydro, Right BS-5044951B
...
56
CONTROL, Hydro, Left BS-5044952B
...
57
NUT, Wing - 1/4"-20 BS-25870
...
58
HHCS, 1/4-20 X 7 BS-45000GS
...
60
Decal, UltraBelt, 36 BS-5022507
...
61
CONTACTOR, Starter BS-24492
...
62
SUPPORT, Starter Contactor BS-45001

Panel Sheet Metal

...
...
1

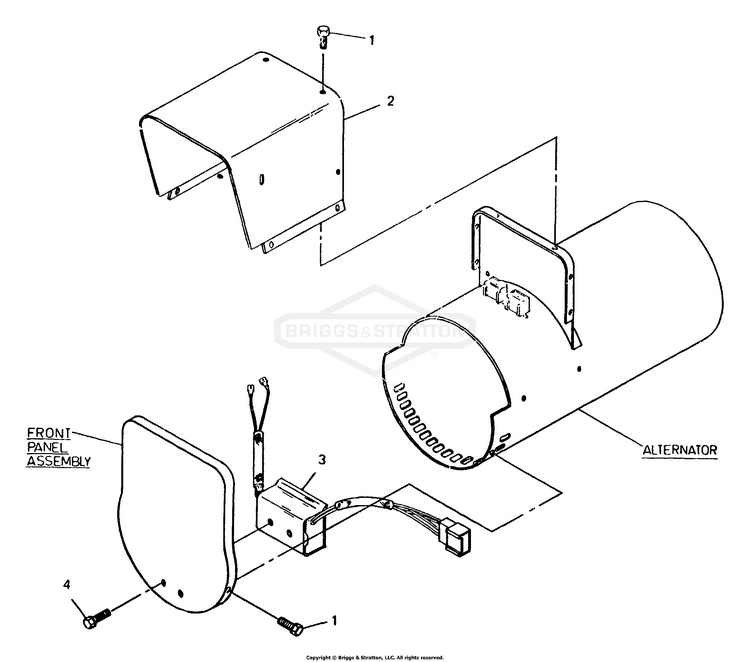

SCREW (Taptite) - No. 10-32 x 3/8" BS-24489
...
2
(C) WELD SHAFT BRAK BS-7043875YP
...
3
ASSY, RGLTR, VOLT, PORTABLE BS-53440GS
...
4
SCREW (Taptite) - No. 10-32 x 1/4" BS-46852
Schematic Image Zoomed
Scroll to zoom • Drag to pan • Click to close
Press Esc or click background to close Pinch to zoom • Tap to close
