8752-2 Briggs and Stratton Portable Generator G4050, 4,000 Watt

Model: 8752-2

Back To Assemblies

Save Part Not Listed?
product name

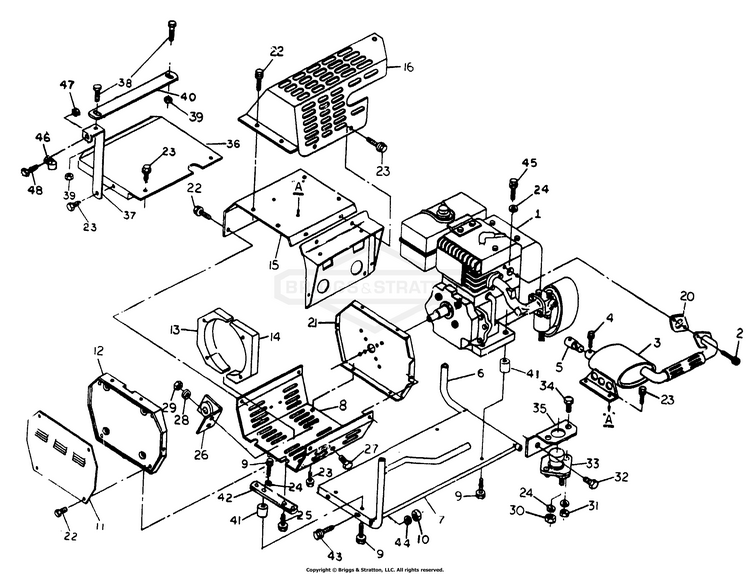

Sheet Metal No. 68373 - Electric Start

...
...
1
ENGINE- 8 HP, Electric Start (Model 8752-2) BS-69648
...
2
CAPSCREW, Socket Head- 5/16"-18 x 3/4" BS-60706
...
3
MUFFLER, Exhaust (Includes Spark Arrestor) BS-58196
...
4
SCREW, Sheet Metal- No. 8 x 3/8" BS-22774
...
5
SCREEN, Spark Arrestor BS-59604
...
6
CRADLE BS-65115
...
7
PAN, Base BS-65389
...
8
WRAPPER, Lower Generator BS-58876B
...
9
HUB - 4 BOLT BS-5022165SM
...
10
NUT, Hex- 1/4"-20 BS-22127
...
11
PANEL, End BS-61771
...
12
PANEL, End BS-61762
...
13
BAFFLE, Generator Air (Left) BS-58887B
...
14
BAFFLE, Generator Air (Right) BS-58887C
...
15
WRAPPER, Upper Generator BS-61763B
...
16
COVER, Muffler and Head BS-58884
...
17
Washer, .34 x 1 x 10 BS-50190GS
...
20
GSKT, EXHAUST BS-58894GS
...
21
ADAPTER, Sheet Metal BS-60209
...
22
SCREW- No. 8 x 3/8" BS-59635
...
23
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
24
WASHER, Lock BS-22129GS
...
25
SCREW- 1/4" x 1" BS-59634
...
26
WHEEL AXLE BS-5045992SM
...
27
SCREW- No. 10-32 x 3/8" BS-36933
...
28
VALVE, FUEL SHUT OFF BS-84010414
...
29
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
30
NUT, 5/16-18 HEX BS-5025032SM
...
31
NUT, Hex - 1/4"-20 BS-22127
...
32
SCREW (Crimptite)- 1/4"-20 x 1/2" BS-58442
...
33
CONTACTOR, START, PUSH BS-53030GS
...
34
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
35
BRACKET, Starter Contactor BS-65121
...
36
TRAY, Battery BS-63055
...
37
BRACKET BS-65391
...
38
HHCS, 1/4-20 X 1-1/4 BS-22203GS
...
40
CONTROL, Hydro, Right BS-5044951B
...
41
MOUNT, Vibration BS-44624
...
42
SUPPORT, Rear BS-65164
...
43
BOLT, 1/4-20 BS-5025010X12SM
...
44
CAP BS-5022097SM
...
45
HHCS, 5/16-18 X 1-1/2 BS-22283GS
...
46
CLAMP BS-40158
...
47
NUT, Lock- 1/4"-20 BS-50993
...
48
Decal, UltraBelt, 36 BS-5022507
