8750-2 Briggs and Stratton Portable Generator H2450, 2,250 Watt

Model: 8750-2

Back To Assemblies

Save Part Not Listed?
product name

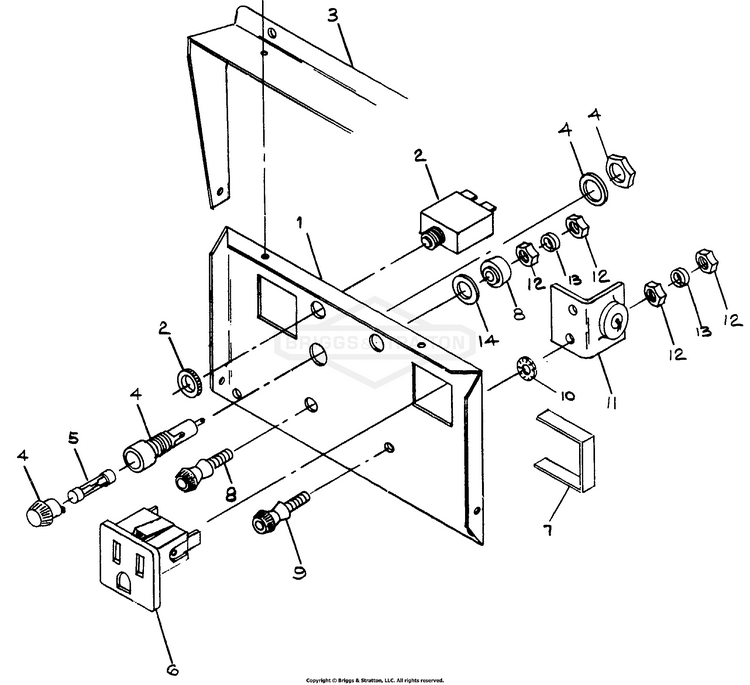

Control Panel No. 61795

...
...
1
PANEL, Control (without Circuit Breakers) BS-61484A
...
PANEL, Control (with Circuit Breakers) BS-61484C
...
2
BREAKER, Circuit BS-56286
...
3
HOOD, Drip BS-61485A
...
4
HOLDER, Fuse BS-22669
...
5
FUSE - 30 Ampere BS-22668
...
6
SWITCH, PTO, DPDT BS-7022693YP
...
7
RETAINER, 120 Volts Receptacle BS-27272
...
8
TERMINAL, BTTRY CHG, RED BS-25367GS
...
9
POST, Battery Charge Terminal (Black) BS-25368
...
10
WASHER, Shakeproof BS-26579
...
11
WHEEL AXLE BS-5045992SM
...
12
NUT, #8-32 BS-22471GS
...
13
WASHER, Lock - No. 8 BS-22264
...
14
WASHER, Fiber BS-30798
...
CABLE, Battery Charging BS-A25383
