8733-0 Briggs and Stratton Portable Generator 3,000 Watt

Model: 8733-0

Save Part Not Listed?
product name

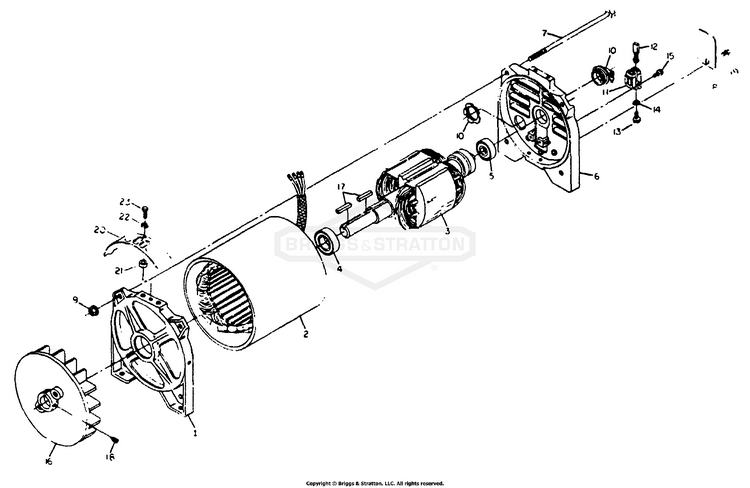

AC Generator No. 62043

...
...
1
CARRIER, Front Bearing BS-55630A
...
2
STATOR BS-62039
...
3
ROTOR BS-62038
...
4
BEARING, Pulley End BS-31971
...
5
BEARING, Slip Ring End BS-22701
...
6
CARRIER, Rear Bearing BS-55632
...
7
BOLT - 1/4"-20 x 9" BS-44395D
...
8
COVER, Brush Inspection BS-55652
...
9
NUT, Lock - 1/4"-20 BS-50993
...
10
CONNECTOR BS-34616
...
11
HLDR, BRUSH, UNIV BS-23877DGS
...
12
ASSY, BRUSH BS-A24044AGS
...
13
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
14
WHEEL, 12 X 8.5 BS-5023364YP
...
15
SCREW, Self-Tapping - No. 8-32 x 5/8" BS-32111
...
16
FAN BS-60224
...
17
KEY - 3/16" square x 1" long BS-23139
...
18
SCREW, Cup Point Allen Head 1/4"-20 x 5/16" BS-26615
...
19
SCREW, Self-Tapping - No. 8-32 x 1/4" BS-26902
...
20
GUARD, Fan BS-62054
...
21
SPACER BS-38198
...
22
CAP BS-5022097SM
...
23
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM

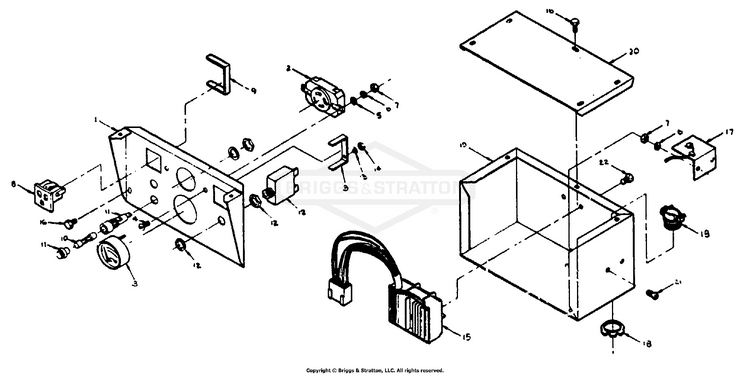

Control Panel No. 62044

...
...
1
PANEL (Silkscreened) BS-61861
...
2
PLUG-120/240V TL20A BS-100522GS
...
3
VOLTMETER - 120 VAC BS-45049
...
4
SCREW, Phillips Pan Head Machine No. 10-32 x 1/2" BS-36701
...
5
WASHER, Rivet, 3/16 BS-1910531SM
...
6
VALVE, FUEL SHUT OFF BS-84010414
...
7
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
8
SWITCH, PTO, DPDT BS-7022693YP
...
9
RETAINER, Receptacle BS-27272
...
10
FUSE - 30 Ampere BS-22668
...
11
Holder, Fuse BS-191302GS
...
12
BREAKER, Circuit BS-56286
...
13
WHEEL, 12 X 8.5 BS-5023364YP
...
14
NUT, Hex - No. 6-32 BS-22188
...
15
ASSY, RGLTR, VOLT, PORTABLE BS-53440GS
...
16
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
17
WHEEL AXLE BS-5045992SM
...
18
CONNECTOR, Electrical BS-34616
...
19
BOX, Control BS-55665
...
20
COVER, Control Box BS-55666
...
21
SCREW, Phillips Pan Head Machine No. 10-32 x 3/8" BS-36933
...
22
SCREW (Whiz) - No. 10-32 x 3/8" BS-38045

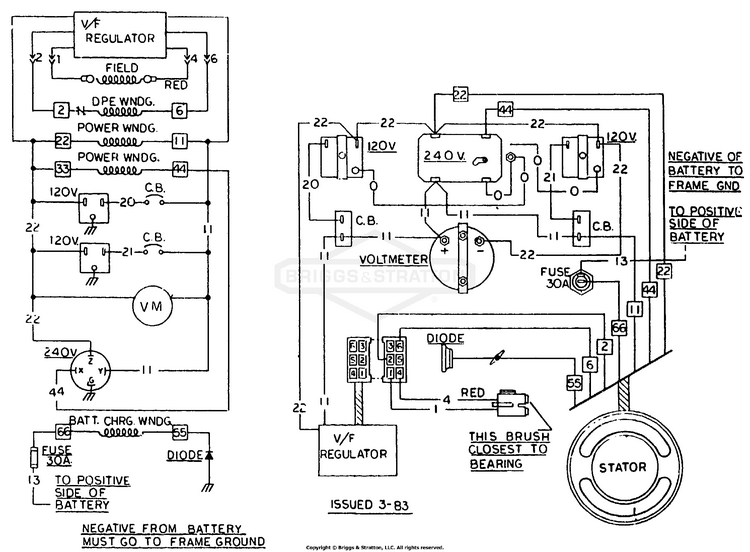

Electrical Schematic/Wiring Diagram No. 62045

...

No Parts Available for this Schematic
