8720-1 Briggs and Stratton Portable Generator DPG3750, 3,750 Watt Domestic

Model: 8720-1

Save Part Not Listed?

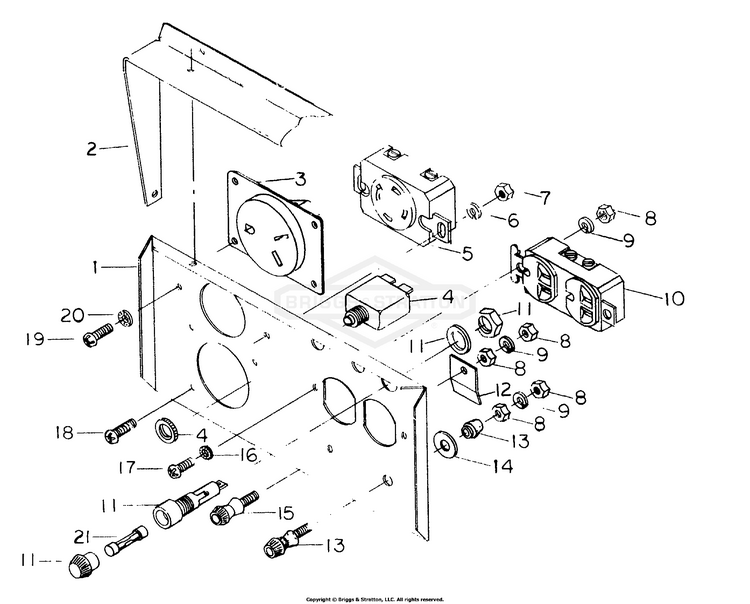

Panel No. 63099

PANEL - Silkscreened BS-00763094

HOOD, Panel BS-00761485B

RECEPTACLE - 120 Volts (Recreational Vehicle Type) BS-00763096

BREAKER, Circuit - 15 Ampere BS-00756286

RECEPTACLE - 240 Volts (Twist-Lok) BS-00743482

WASHER, Lock - No. 10 BS-00722152

NUT, Hex No. 10-32 BS-00722158

NUT, Hex No. 8-32 BS-00722471

WASHER, Lock - No. 8 BS-00722264

RECEPTACLE - 120 Volts (Duplex special) BS-00763807

HOLDER, Fuse BS-00722669

RETAINER BS-00763097

POST, Battery Charging - RED BS-00725367

WASHER, Fiber BS-00730798

POST, Battery Charging - BLACK BS-00725368

WASHER, Lock (Shakeproof) - No. 8 BS-00723365

SCREW, Pan Head Machine - No. 8-32 x 1/2" BS-00728985

SCREW, Round Head(Sems)-No.6-32 x 1/4" BS-00725105

SCREW, Pan Head Machine-No.10 x 32 x 5/8" BS-00736701

WASHER, Lock (Shakeproof) - No. 10 BS-00722769

FUSE - 30 Ampere BS-00722669
