AC Generator DPG-1350 No. 61797

...
...
1
BOLT, Stator (120 Volt only units) BS-00744395E
...
BOLT, Stator (120/240 Volts units) BS-00744395H
...
2
HOUSING, Receptacle (White) BS-00722694
...
3
RECTIFIER ASSEMBLY, Bridge BS-00728293
...
4
SCREW - No. 4 x 3/8" BS-00759636
...
5
BOLT, Rotor (1350, 2250 Watt Units only) BS-00758885A
...
6
BRUSH ASSEMBLY (Red) - Positive BS-00759606
...
BRUSH ASSEMBLY - Neutral BS-00759606A
...
7
BEARING BS-00724049
...
8
WASHER (Special) BS-00758886
...
10
ROTOR AND FAN ASSEMBLY (1350 Watt Units) BS-00761798
...
11
STATOR ASSEMBLY (1350 Watt Units only) BS-00761780
...
12
BUSHING, Snap BS-00723484D
...
13
CAPSCREW, Hex Head - 5/16"-24 x 3/4" BS-00722336
...
14
WASHER, Lock - 5/16" BS-00722129
...
15
HOUSING, Engine Adapter (1350, 2250 Watt Units only) BS-00760220D
...
16
NUT, Lock - 1/4"-20 BS-00750993
...
17
TRIM, Vinyl - 3 1/2" long BS-00756326
...
18
SCREW (Crimptite) - No. 10-24 x 3/8" BS-00724489

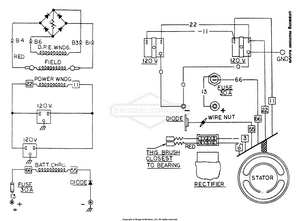

Electrical Schematic And Wiring Diagram DPG-1350

...

No Parts Available for this Schematic

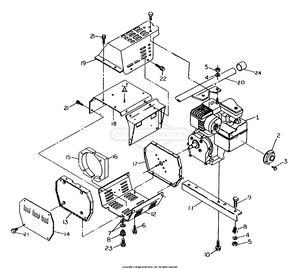

Engine Sheet Metal DPG-1350 No. 62005

...
...
1
ENGINE, Briggs & Stratton 3 Horsepower BS-00761742
...
2
SCREEN, Spark Arrestor BS-00761491
...
3
SCREW, Spark Arrestor Screen BS-00742496
...
4
WASHER, Lock - 5/16" BS-00722129
...
5
NUT, Hex - 5/16"-18 BS-00722245
...
6
SCREW - No. 10-24 x 3/8" BS-00756892
...
7
WASHER, Flat - 5/16" BS-00722145
...
8
SPRING BS-00723594
...
9
SCREW - 5/16"-18 x 3/4" BS-00722142
...
10
SCREW - 3/8"-16 x 3/4" BS-00759637
...
11
SUPPORT, Spring BS-00724509
...
12
WRAPPER, Lower Generator BS-00758876A
...
13
PANEL, End BS-00761762
...
14
COVER, End Panel BS-00761771
...
15
BAFFLE, Generator Air (Left) BS-00758887B
...
16
BAFFLE, Generator Air (Right) BS-00758887C
...
17
ADAPTER, Generator Sheet Metal BS-00760209
...
18
WRAPPER, Upper Generator BS-00761763A
...
19
COVER, Head BS-00761490
...
20
HANDLE, Carrying BS-00761769
...
21
SCREW - No. 8-32 x 3/8" BS-00759635
...
22
SCREW - No. 10-24 x 3/8" BS-00756892
...
23
SCREW - 1/4" x 1" BS-00759634
...
24
CAP, Plastic BS-00727794

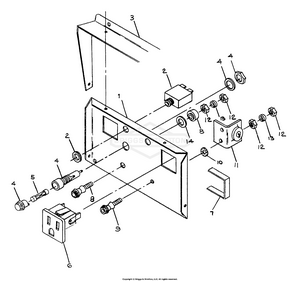

Panel No. 61795

...
...
1
PANEL, Control (without Circuit Breakers) BS-00761484A
...
PANEL, Control (with Circuit Breakers) BS-00761484C
...
2
BREAKER, Circuit BS-00756286
...
3
HOOD, Drip BS-00761485A
...
4
HOLDER, Fuse BS-00722669
...
5
FUSE - 30 Ampere BS-00722668
...
6
RECEPTACLE - 120 Volts BS-00722693
...
7
RETAINER, 120 Volts Receptacle BS-00727272
...
8
POST, Battery Charge Terminal (Red) BS-00725367
...
9
POST, Battery Charge Terminal (Black) BS-00725368
...
10
WASHER, Shakeproof BS-00726579
...
11
DIODE ASSEMBLY BS-00745992
...
12
NUT, Hex - No. 8-32 BS-00722471
...
13
WASHER, Lock - No. 8 BS-00722264
...
14
WASHER, Fiber BS-00730798
...
CABLE, Battery Charging BS-007A25383
...
...
...
