8713-0 Briggs and Stratton Portable Generator 1,100 Watt

Model: 8713-0

Save Part Not Listed?
product name

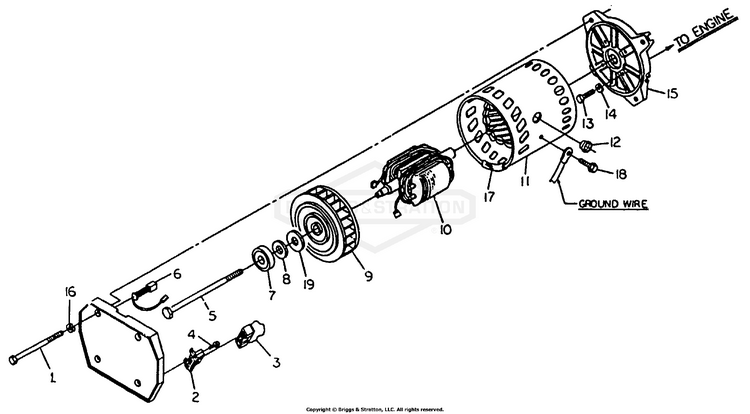

AC Generator No. 62018

...
...
1
BOLT, Stator (120/240 Volts units) BS-44395H
...
2
HOUSING, Receptacle BS-22694GS
...
3
RECTIFIER, Bridge BS-28293
...
4
SCREW - No. 4 x 3/8" BS-59636
...
5
BOLT, Rotor (1100, 2000 Watt Units) BS-58885A
...
6
BRUSH, Positive (Red) BS-59606
...
BRUSH, Neutral BS-59606A
...
7
BEARING BS-24049
...
8
FAN, LOADING WSHR BS-58886GS
...
9
Fan, Cooling BS-58868
...
10
(C) DIPSTICK WELD BS-7062021YP
...
11
BRKT CLUTCH STOP BS-7062022YP
...
12
BUSHING, Snap BS-23484D
...
13
CAPSCREW, Hex Head - 5/16"-18 x 3/4" BS-22336
...
14
WASHER, Lock BS-22129GS
...
15
HOUSING, Engine Adapter BS-60220D
...
16
NUT, Lock - 1/4"-20 BS-50993
...
17
TRIM (Vinyl) - 3-1/2" long BS-56326
...
18
SCREW (Crimptite) - No. 10-24 x 3/8" BS-24489

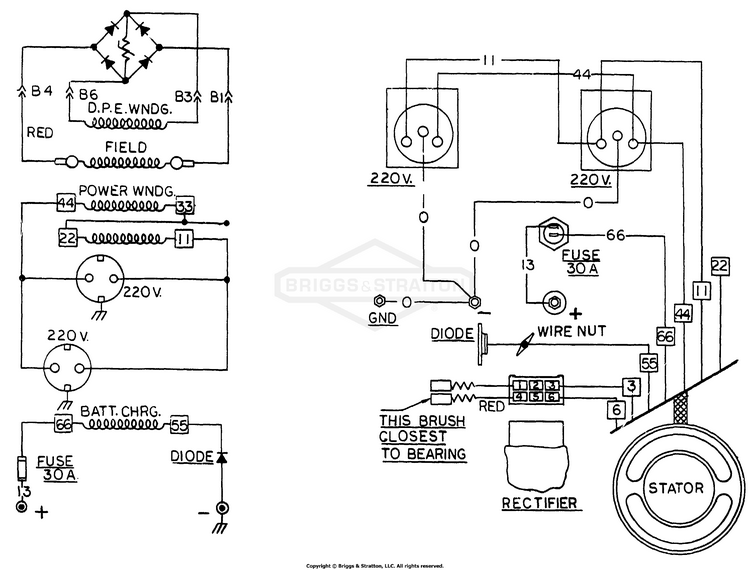

Electrical Schematic/Wiring Diagram No. 62020

...

No Parts Available for this Schematic

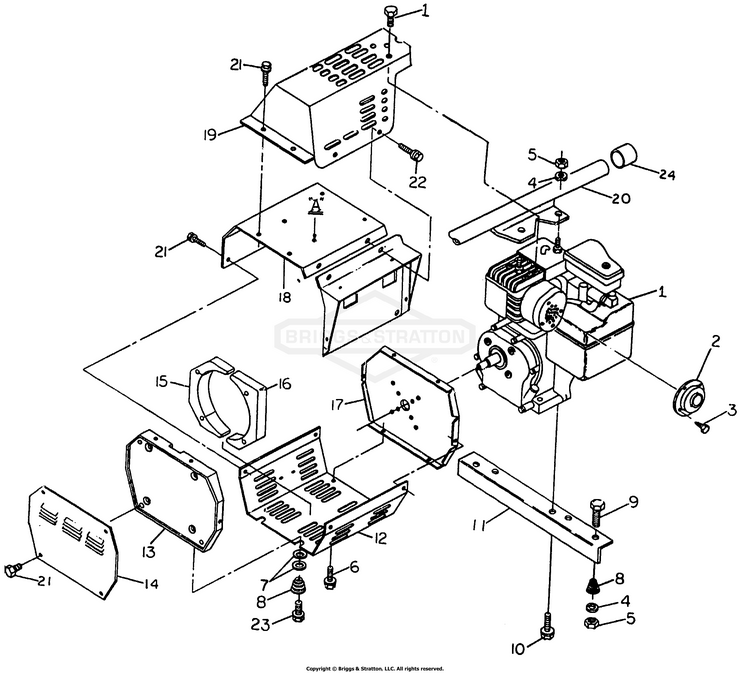

Engine Sheet Metal No. 62005 Issued 2/18/83

...
...
1
ENGINE, Briggs & Stratton 3 Horsepower BS-61742
...
2
HOSE ASSEMBLY, 42" BS-5061491
...
3
SCREW, Spark Arrestor Screen BS-42496
...
4
WASHER, Lock BS-22129GS
...
5
NUT, Hex - 5/16"-18 BS-22245
...
6
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
8
SPRING BS-23594
...
9
MODULE BS-84009650
...
10
SCREW - 3/8"-16 x 3/4" BS-59637
...
11
SUPPORT, Spring BS-24509
...
12
WRAPPER, Lower Generator BS-58876A
...
13
PANEL, End BS-61762
...
14
COVER, End Panel BS-61771
...
15
BAFFLE, Generator Air (Left) BS-58887B
...
16
BAFFLE, Generator Air (Right) BS-58887C
...
17
ADAPTER, Generator Sheet Metal BS-60209
...
18
WRAPPER, Upper Generator BS-61763A
...
19
HOSE ASSEMBLY, 49" BS-5061490
...
20
HANDLE, Carrying BS-61769
...
21
SCREW - No. 8-32 x 3/8" BS-59635
...
22
CRIMPTITE, 10-24 X 3/8 BS-56892GS
...
23
SCREW - 1/4" x 1" BS-59634
...
24
CAP, Plastic BS-27794

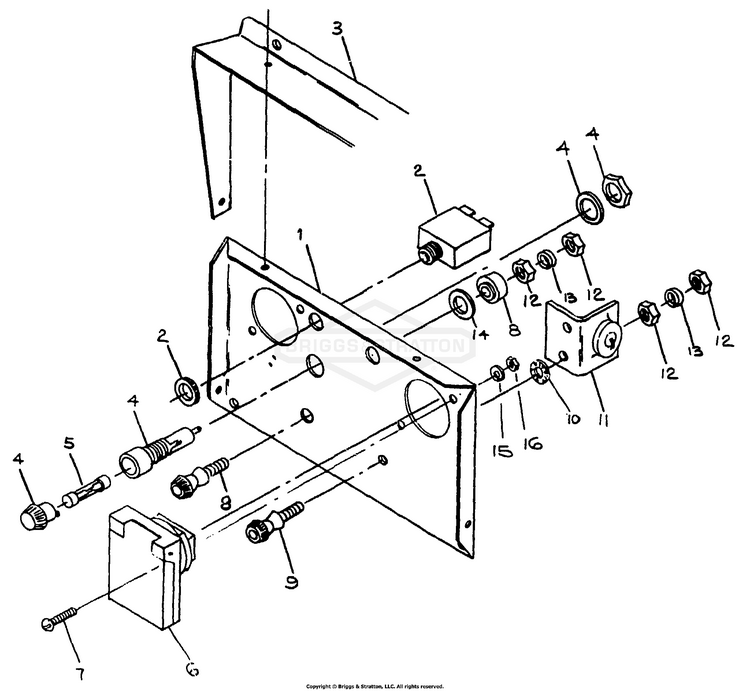

Panel No. 62019

...
...
1
PANEL (without Circuit Breakers) BS-61484A
...
PANEL (with Circuit Breakers) BS-61484C
...
2
BREAKER, Circuit BS-56286
...
3
HOOD, Drip BS-61485A
...
4
HOLDER, Fuse BS-22669
...
5
FUSE - 30 Ampere BS-22668
...
6
RECEPTACLE - 120 Volts AC BS-50726
...
7
SCREW, Round Head Machine - No. 4-40 x 3/8" BS-34028
...
8
TERMINAL, BTTRY CHG, RED BS-25367GS
...
9
POST, Battery Charge Terminal (Black) BS-25368
...
10
WASHER, Shakeproof BS-26579
...
11
WHEEL AXLE BS-5045992SM
...
12
NUT, #8-32 BS-22471GS
...
13
WASHER, Lock - No. 8 BS-22264
...
14
WASHER, Fiber BS-30798
...
15
PULLEY, Taper Lock BS-5022159SM
...
16
NUT, Hex - No. 4-40 BS-27771
...
CABLE, Battery Charging BS-A25383
