8712-0 Briggs and Stratton Portable Generator 7,000 Watt

Model: 8712-0

Save Part Not Listed?
product name

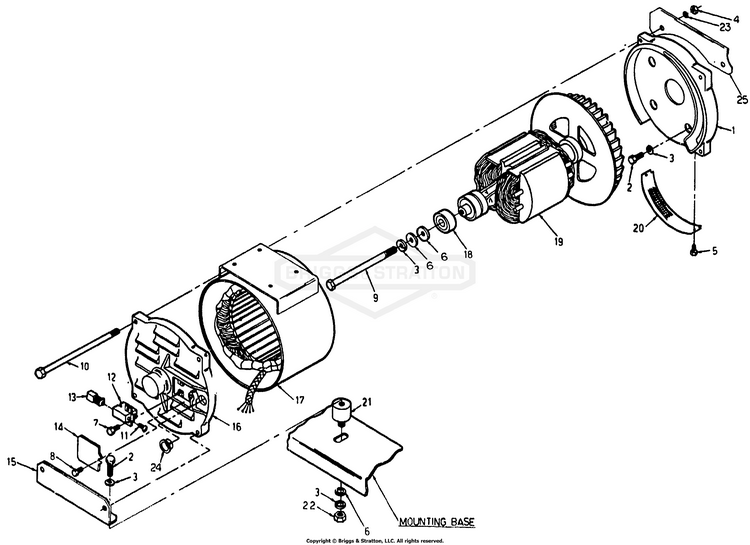

AC Generator No. 50985

...
...
1
HOUSING, Engine Adapter BS-42805A
...
2
WHEEL ASSEMBLY BS-84010756
...
3
LOCKWASHER, SPLIT 3/8 BS-703454
...
4
NUT, Hex - 5/16"-24 BS-24114
...
5
SCREW - No. 10-32 x 3/8" BS-24489
...
6
WASHER, FLAT .406X.81 BS-71072MA
...
7
SCREW - No. 8-32 x 5/8" BS-24488
...
8
SCREW - No. 8-32 x 1/4" BS-26902
...
9
BOLT, Rotor - 3/8" x 11-1/8" long BS-50924
...
10
BOLT, Stator - 5/16"-24 x 11-5/8" long BS-50398
...
11
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
12
HLDR, BRUSH, UNIV BS-23877DGS
...
13
ASSY, BRUSH BS-A24044AGS
...
14
BELT, 73.75 AA BS-7043844YP
...
15
SUPPORT, Rear Generator BS-42384
...
16
CARRIER-BEARING BS-49410AGS
...
17
STATOR ASSEMBLY BS-50976
...
18
BEARING BS-24049
...
19
ASSEMBLY, Rotor and Fan BS-50906
...
20
GUARD, Fan BS-42856
...
21
MOUNTS,Vibration BS-38353GS
...
22
DECAL, ProCut Z Text BS-5022241
...
23
WASHER, Lock BS-22129GS
...
24
BUSHING, Snap BS-23484D
...
25
DEFLECTOR, Engine Air BS-50972

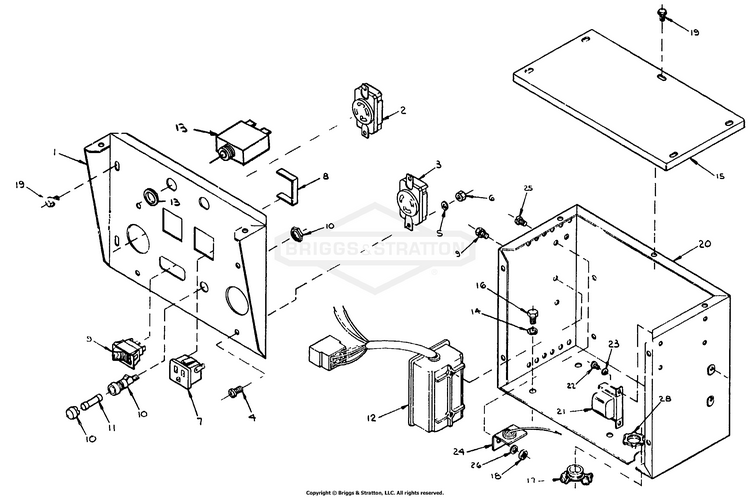

Control Panel No. 61733

...
...
1
PANEL, Control BS-50975A
...
2
RECEPTACLE - 240 Volts, 30 Ampere BS-43437
...
3
RECEPTACLE - 120 Volts, 30 Ampere BS-37807
...
4
SCREW, Phillips Pan Head Machine No. 10-32 x 1/2" long BS-36701
...
5
VALVE, FUEL SHUT OFF BS-84010414
...
6
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
7
SWITCH, PTO, DPDT BS-7022693YP
...
8
RETAINER, 120 Volts, 15 Ampere Receptacle BS-27272
...
9
SWITCH, ROCKER, SPST BS-33868GS
...
10
Holder, Fuse BS-191302GS
...
11
FUSE - 30 Ampere BS-22668
...
12
ASSY, RGLTR, VOLT, PORTABLE BS-53440GS
...
13
BREAKER, Circuit - 15 Ampere BS-56286
...
14
CAP BS-5022097SM
...
15
COVER, Panel BS-49059
...
16
Decal, UltraBelt, 36 BS-5022507
...
17
CONNECTOR, Straight - 3/8" BS-22206
...
18
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
19
SCREW - No. 10-32 x 3/8" long BS-38045
...
20
BOX, Panel BS-50550
...
21
TRANSFORMER, Isolation BS-47228
...
22
SCREW, Phillips Pan Head Machine No. 6-32 x 3/8" long BS-36901
...
23
PULLEY, PUMP DRIVE BS-5022155SM
...
24
WHEEL AXLE BS-5045992SM
...
25
SCREW, Phillips Pan Head Machine No. 10-32 x 3/8" long BS-36933
...
26
VALVE, FUEL SHUT OFF BS-84010414
...
PLUG, 125V 30A 3-Prong BS-100523GS
...
PLUG, 250V, 30A BS-43438GS

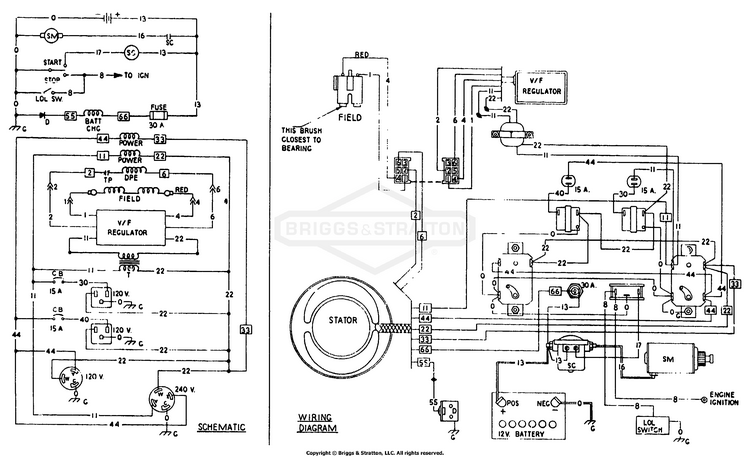

Electrical Schematic/Wiring Diagram No. 61732

...

No Parts Available for this Schematic

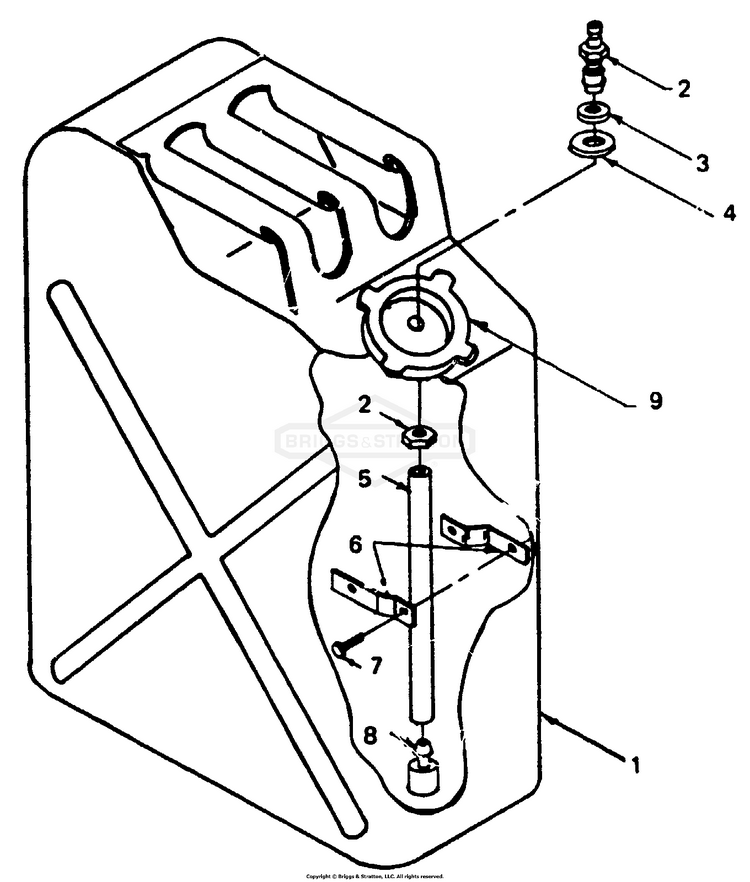

Fuel Tank No. 50544

...
...
1
TANK, Fuel - 5 Gallon BS-43413
...
TANK, Fuel - 5 Gallon BS-50543
...
2
FITTING, Male Quick Disconnect BS-50541
...
3
WASHER, Flat - 3/8" BS-43441
...
4
Stroke Arm BS-5043442B
...
5
HOSE, Fuel BS-47662Y
...
6
RETAINER, Fuel Hose BS-50540
...
7
SCREW (Taptite) - No. 10-32 BS-46852
...
8
SCREEN, Fuel Pickup BS-43434
...
9
CAP, Fuel Tank Filler BS-50542

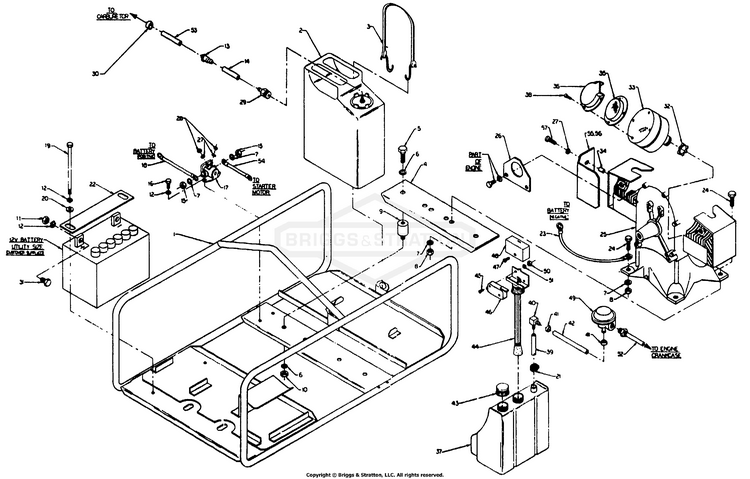

Mounting Base No. 50986

...
...
1
BASE, Mounting BS-50973
...
2
TANK, Fuel BS-50543
...
3
STRAP, Fuel Tank Retaining BS-43943
...
4
Brake Pivot BS-5042372
...
5
WHEEL ASSEMBLY BS-84010756
...
6
LOCKWASHER, SPLIT 3/8 BS-703454
...
7
WASHER, Lock BS-22129GS
...
8
NUT, 5/16-18 HEX BS-5025032SM
...
9
MOUNTS,Vibration BS-38353GS
...
10
DECAL, ProCut Z Text BS-5022241
...
11
NUT, Hex - 1/4"-20 BS-22127
...
12
CAP BS-5022097SM
...
13
FILTER, Fuel BS-47294
...
14
HOSE, Fuel - 1/4" ID x 4-1/2" long BS-47662T
...
15
NUT, Hex - 5/16"-24 BS-24114
...
16
Decal, UltraBelt, 36 BS-5022507
...
17
SOLENOID, Starter BS-24492
...
18
CABLE, Battery (Red) - Positive (+) BS-4411417
...
19
HHCS, 1/4-20 X 7 BS-45000GS
...
21
CLAMP, Hose BS-35472
...
22
CONTROL, Hydro, Right BS-5044951B
...
23
CABLE, Battery (Black) - Negative (-) BS-4411413
...
24
HHCS, 5/16-18 X 1-1/2 BS-22283GS
...
25
BAR, PUSHER BAR SUPPORT BS-5061474B
...
26
Brake Cable Weld. BS-5042393
...
27
VALVE, FUEL SHUT OFF BS-84010414
...
28
CAP, FUEL TANK, 3-1/2 NECK BS-5022158
...
29
FITTING, Quick-Disconnect (Female) BS-30288
...
30
CLAMP - 1/4" BS-48031C
...
31
BOLT, 1/4-20 X 3/4" G BS-5025010X6SM
...
32
NUT, Pipe Lock - 3/4" BS-26771
...
33
MUFFLER, Exhaust BS-56160
...
34
SPACER BS-33469
...
35
SCREEN, Spark Arrestor BS-50483
...
36
DEFLECTOR BS-50484
...
37
Safety handle - left BS-5048084
...
38
SCREW, Exhaust Muffler Deflector BS-42496
...
39
HOSE - 3/8" ID X 7-1/4" long BS-47662N
...
40
FITTING, Barbed - 3/8" x 3/8" BS-49099
...
41
CLAMP, Hose - 3/8" BS-48031E
...
42
HOSE - 3/8" ID x 15" long BS-47662AD
...
43
CAP, Oil Makeup Tank Filler BS-30449
...
44
SWITCH ASSEMBLY, Low Oil Level Shutdown BS-48714
...
45
SCREW, Round Head Machine- No. 4-40 x 5/8" BS-27770
...
46
MICRO-SWITCH, Low Oil Level Shutdown BS-30283
...
47
PRHMS, 6-32 x 1/4 SEMS BS-25105GS
...
48
ENGINE MOUNT-RH BS-5046908
...
49
PUMP, Oil Makeup BS-46509
...
50
NUT, Hex - No. 4-40 BS-27771
...
51
WASHER, Shakeproof - No. 4 BS-27772
...
52
PROBE, Oil Makeup BS-49468
...
53
HOSE, Fuel - 1/4" ID x 14" long BS-47662AA
...
54
CABLE, Starter Solenoid to Motor BS-3518379
...
55
BAFFLE, Cylinder Head - No. 1 BS-50907
...
56
BAFFLE, Cylinder Head - No. 2 BS-50908
...
57
SCREW, Phillips Pan Head Machine - No. 10-24 x 5/8" BS-50923
...
58
GASKET, Exhaust BS-49437
...
59
ADAPTER, Exhaust Muffler BS-56161
...
60
WASHER, Lock (Special) - 1/4" BS-55635
...
61
CAPSCREW, Socket Head - 1/4"-20 x 3/4" BS-36781
