866089-A Briggs and Stratton - 33cc Brush Cutter (2016)

Model: 866089-A

Back To Assemblies

Save Part Not Listed?

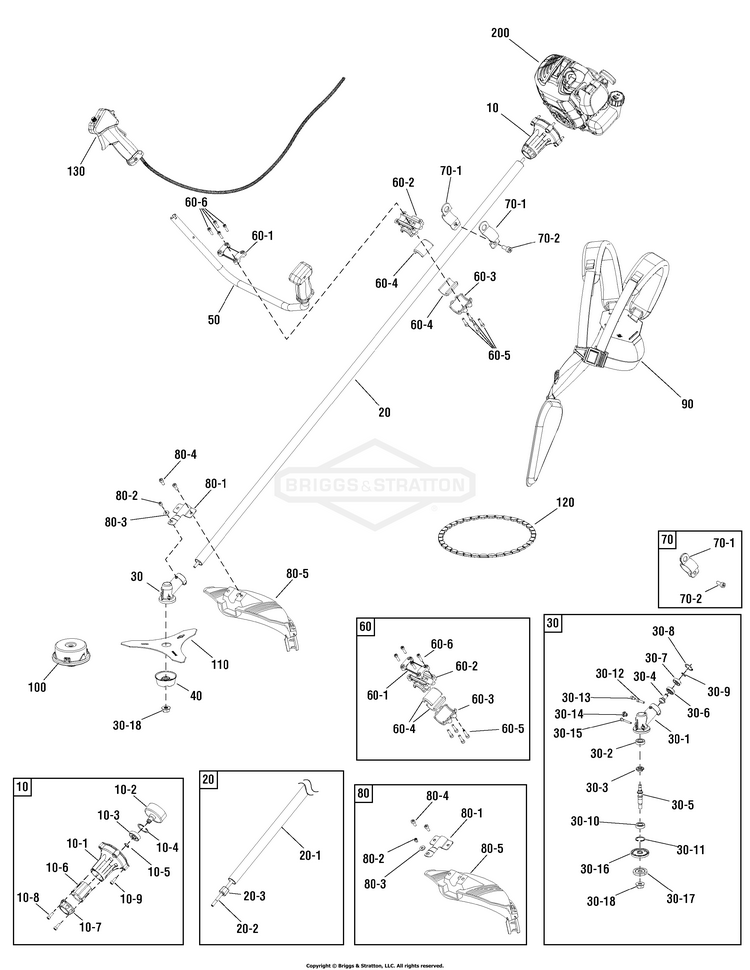

Shaft Group (866089_866090_866091)

CLUTCH HOUSING ASSEMBLY (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8 & 10-9) BS-709598

SHAFT ASSEMBLY (Includes Ref. Nos. 20-1, 20-2 & 20-3) BS-709599

GEARBOX ASSEMBLY (Includes Ref. Nos. 30-1, 30-2, 30-3, 30-4, 30-5, 30-6, 30-7, 30-8, 30-9, 30-10, 30-11, 30-12, 30-13, 30-14, 30-15, 30-16, 30-17 & 30-18) BS-709600

COVER BS-709601

HANDLE ASSEMBLY BS-709569

HANDLE BRACKET ASSEMBLY (Includes Ref. Nos. 60-1, 60-2, 30-3, 60-4, 60-5 & 60-6) BS-709602

HANGER ASSEMBLY (Includes Ref. Nos. 70-1 & 70-2) BS-709603

GUARD ASSEMBLY (Includes Ref. Nos. 80-1, 80-2, 80-3, 80-4 & 80-5) BS-709604

SHOULDER STRAP BS-709572

100

BUMP HEAD BS-709605

110

BLADE, 3T BS-709606

120

COVER, Blade BS-709576

130

LEVER ASSEMBLY, Throttle BS-709577
