product name

866044 Murray - MHD9222 - Murray Hedge Trimmer (2012)

Model: 866044

Save
 Part Not Listed?Part Not Listed?
product name

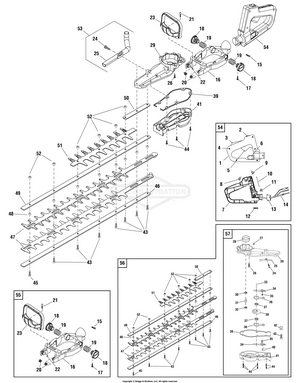

Blade Group (866044_866045)

...
...
1
HANDLE, Left BS-701005
...
2
STOP BUTTON, Complete BS-701003
...
3
LEVER, Interlock BS-701006
...
4
SCREW, Self Tapping, ST4.2 x 19 BS-702220
...
5
TRIGGER, Throttle BS-701004
...
6
HANDLE, Lock BS-701008
...
7
HANDLE, Right BS-701014
...
8
SPRING, Self Lock BS-701013
...
9
SPRING, Handle BS-701012
...
10
ROD, Lock BS-701011
...
11
FORK BS-701010
...
12
SPRING BS-701009
...
13
COUPLING BS-701016
...
14
CABLE, Complete BS-701007
...
15
HOLDER, Clip BS-701017
...
16
BASE BS-701020
...
17
BOLT, M5 x 16 BS-701862
...
18
COVER, Damping Spring BS-701018
...
19
DAMPING SPRING A BS-701019
...
20
DAMPING SPRING B BS-701021
...
21
BOLT, M5 x 45 BS-701885
...
22
NUT, Hex, M5 BS-702221
...
23
HANDLE, Front BS-701878
...
24
BOLT, M5 x 16 BS-701834
...
25
TUBE, Exhaust BS-701048
...
26
BOLT, M5 x 20 BS-701841
...
27
CUP, Fuel BS-701026
...
28
CLUTCH DRUM, Complete BS-701025
...
29
GEAR BOX CASE BS-701027
...
30
BEARING, GB276 6001-2RS BS-701866
...
31
SHAFT BS-701029
...
32
BEARING, 628 BS-701030
...
33
SHAFT BS-701031
...
34
WASHER BS-701032
...
35
BOLT, M4 x 6 BS-701033
...
36
ROD, Connect BS-701034
...
37
BEARING, 61805-2RZ BS-701035
...
38
GEAR, Crank BS-701036
...
39
Selector Knob BS-709411
...
40
GASKET BS-701039
...
41
COVER, Gear Box BS-701038
...
42
GUIDE PAD BS-701040
...
43
BOLT, M5 x 25 BS-701850
...
44
BOLT, M5 x 16 BS-701834
...
45
BOLT, M5 x 20 BS-701841
...
46
PLATE, Blade Holder BS-701041
...
47
BLADE, Set of 2 BS-702139
...
48
SPACER BS-701078
...
49
BRACKET, Blade BS-701044
...
50
ENHANCE PLATE BS-701046
...
51
GUARD, Blade BS-701045
...
52
NUT, M5 BS-701047
...
53
KIT, Exhaust Tube (Includes Ref Nos. 24 & 25) BS-702066
...
54
HANDLE ASSEMBLY, Complete (Includes Ref Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 & 14) BS-702102
...
55
KIT, Base Assembly (Includes Ref Nos. 15, 16, 17, 18, 19, 20, 21, 22 & 23) BS-702097
...
56
KIT, Gearbox & Blade (Includes Ref Nos. 43, 45, 46, 47, 48, 49, 50, 51, 52 & 57) BS-702098
...
57
KIT, Gearbox (Includes Ref Nos. 26, 27, 28, 29, 30, 31, 32, 33, 34, 35, 36, 37, 38, 39, 40, 41, 42, 43, 44 & 53) BS-702099

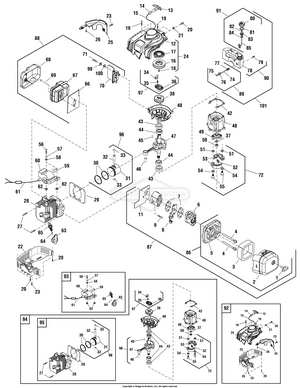

Engine Group (702189)

...
...
1
BOLT, Big Head BS-701882
...
2
COVER, Cleaner, Outer BS-701828
...
3
AIR CLEANER BS-701829
...
4
BOLT, M5 x 55 BS-701832
...
5
COVER, Cleaner, Inner BS-702081
...
6
CARBURETOR BS-700934
...
7
GASKET, Carburetor BS-700936
...
8
BRACKET, Cable BS-700937
...
9
BOLT, M5 x 16 BS-701834
...
10
ADMITTING PIPE BS-700938
...
11
GASKET, Admitting Pipe BS-702100
...
12
SHROUD, Top BS-702191
...
13
HANDLE, Starter BS-702222
...
14
GUARD, Cord BS-702223
...
15
CORD, Starter BS-702068
...
19
BOLT, M5 x 20 BS-701841
...
20
SCREW, Self Tapping, ST4.2 x 16-F BS-701839
...
21
WASHER, Flat, 0.4 BS-701840
...
22
SHROUD, Bottom BS-701836
...
23
BOLT, M5 x 12 BS-701842
...
24
KIT, Shroud, Upper (Includes Ref. Nos. 12, 13, 14, 15, 16, 17 & 18) BS-702186
...
25
Inner Air Flow Wall BS-702187
...
26
BOLT, M5 x 8 BS-701843
...
27
BOLT, M5 x 20 BS-701846
...
28
CYLINDER HEAD BS-701845
...
29
GASKET, Cylinder BS-700943
...
30
PISTON RING BS-700947
...
31
PISTON BS-700948
...
32
PIN, Piston BS-700946
...
33
RETAINING RING, Pin BS-700945
...
34
CLINCH, Starter BS-700972
...
35
SPRING, Starter BS-700973
...
36
START REEL BS-700974
...
37
WASHER, Flat, 8 BS-700380
...
38
FLYWHEEL BS-702115
...
39
BOLT, M5 x 25 BS-701850
...
40
CRANK CASE, Front BS-700955
...
41
PIN, Cylindrical, B3 x 10 BS-701001
...
42
GASKET, Crank Case BS-700954
...
43
SEAL, Oil, 11.7 x 22 x 7 BS-700345
...
45
KEY BS-700950
...
46
BEARING BS-700951
...
47
CRANK SHAFT BS-701848
...
48
CRANK CASE, Rear BS-701849
...
49
PLATE, Clutch BS-700975
...
50
NUT, Hex, M8 x 1 BS-701000
...
51
WASHER, Flat BS-700999
...
52
SRPING, Extension BS-700977
...
53
EXPANDER BS-700978
...
54
WASHER, Wave BS-700998
...
55
SCREW, Shaft BS-700997
...
56
BOLT, M4 x 20 BS-700991
...
57
WASHER, Spring, 4 BS-700987
...
58
WASHER, Flat, 4 BS-700988
...
59
CLAMP, Wire BS-700992
...
60
MAGNETO COIL BS-702114
...
61
CORD, Complete BS-700965
...
62
INSULATOR BS-700993
...
63
BOOT, Spark Plug BS-701858
...
64
CLIP, Spark Plug BS-700962
...
65
SPARK PLUG BS-700983
...
66
GASKET, Muffler BS-701852
...
67
MUFFLER BS-700959
...
68
GUARD, Muffler BS-701856
...
69
BOLT, M5 x 55-10.9 BS-701853
...
70
PROTECT PIECE, Muffler BS-701855
...
71
BOLT, M4 x 16 BS-701854
...
72
KIT, Expander (Includes Ref. Nos. 51, 52, 53, 54 & 55) BS-702101
...
74
LINE, Fuel BS-702093
...
75
PIPE, Fuel BS-701864
...
77
FILTER, Fuel BS-702224
...
78
TANK, Fuel BS-700980
...
79
BOLT, M5 x 16 BS-701862
...
86
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3, 4 & 5) BS-701827
...
87
AIR INTAKE ASSEMBLY BS-701826
...
88
KIT, Muffler (Includes Ref. Nos. 66, 67, 68, 69, 70, 71, 99 & 100) BS-701851
...
89
KIT, Fuel Line (Includes Ref. Nos. 74, 75, 76 & 77) BS-701863
...
90
KIT, Fuel Tank (Includes Ref. Nos. 78 & 79) BS-701861
...
91
KIT, Fuel Cap (Includes Ref. Nos. 80, 81, 82, 83, 84 & 85) BS-700369
...
92
KIT, Shroud, Upper & Lower (Includes Ref. Nos. 19, 20, 21, 22, 23, 24, 25 & 26) BS-702188
...
93
KIT, Magneto Coil (Includes Ref. Nos. 56, 57, 58, 59, 60, 61, 62, 63 & 64) BS-702113
...
94
KIT, Cylinder Assembly (Includes Ref. Nos. 37, 38, 39, 40, 41, 42, 43, 44, 48, 49, 50, 72, 95, 98 & 97) BS-701844
...
95
KIT, Cylinder Head (Includes Ref. Nos. 27, 28, 29 & 96) BS-702063
...
96
KIT, Piston (Includes Ref. Nos. 30, 31, 32 & 33) BS-700944
...
97
KIT, Start Reel (Includes Ref. Nos. 34, 35 & 36) BS-700971
...
98
KIT, Crank Shaft (Includes Ref. Nos. 45, 46 & 47) BS-702094
...
99
WASHER, Spring, 4 (Not a serviceable part. Order Ref. No. 88) BS-700987
...
100
WASHER, Flat, 4 (Not a serviceable part. Order Ref. No. 88) BS-700988
...
101
KIT, Fuel Tank (Includes Ref. Nos. 89, 90 & 91) BS-702228
...
...
...
