866034 Murray - SP33-W, Brush Cutter (2011)

Model: 866034

Save
Part Not Listed?Part Not Listed?

product name

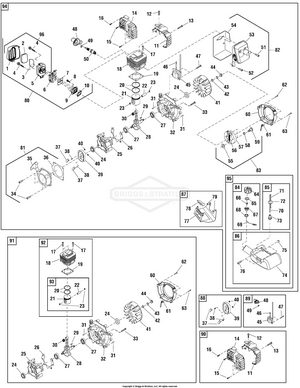

Engine Group - SP33-W (702023)

...
...
1
COVER, Cleaner, Outer BS-701903

...
2
FILTER BS-701895

...
3
BRACKET, Filter Net BS-701896

...
5
BRACKET, Air Cleaner BS-701904

...
6
CARBURETOR BS-700808

...
7
GASKET, Carburetor BS-700327

...
9
ADMITTING PIPE BS-701910

...
10
GASKET, Admitting Pipe BS-700325

...
11
SHROUD, Front BS-700762

...
14
SHROUD, Back BS-700812

...
15
SCREW, Self Tapping, 5 x 20 BS-700764

...
16
SCREW, Self Tapping, 4.2 x 30 BS-700765

...
17
BOLT, M5 x 18 BS-700391

...
18
CYLINDER BS-701886

...
19
GASKET, Cylinder BS-700334

...
20
RING, Piston BS-700338

...
21
PISTON BS-700339

...
22
PIN, Piston BS-700337

...
23
RING, Pin Retain BS-700314

...
24
SEAL, Oil, 11.7 x 22 x 7 BS-700345

...
25
CRANK CASE, Rear BS-701888

...
26
GASKET, Crank Case BS-700347

...
27
BEARING, 6201/P6 BS-700346

...
28
CRANKSHAFT BS-700817

...
29
KEY, 3 x 5 x 13 BS-700341

...
30
BEARING, Needle BS-700816

...
31
PIN, Cylindrical, B4 x 10 BS-700386

...
32
CRANK CASE, Front BS-701887

...
35
STARTER BS-700809

...
36
STARTER PAD BS-700329

...
41
FLY WHEEL BS-701893

...
42
WASHER, Flat, Dia. 8 BS-700380

...
43
WASHER, Spring, Dia. 8 BS-700379

...
44
NUT, M8 BS-700378

...
45
MAGNETO COIL BS-701902

...
46
CORD, Magneto BS-700827

...
48
BOOT, Spark Plug BS-700352

...
49
CLIP, Spark Plug BS-700351

...
50
SPARK PLUG BS-700360

...
53
MUFFLER BS-702123

...
54
GASKET, Muffler BS-700825

...
55
WASHER, B BS-700383

...
56
SPRING, Clutch BS-701897

...
57
EXPANDER, Complete BS-701968

...
58
WASHER, Wave BS-700382

...
59
SCREW, Shaft BS-700767

...
60
COVER, Fan BS-701889

...
61
FLASH PAN BS-700362

...
73
FILTER, Fuel BS-701666

...
74
FUEL TANK BS-701969

...
75
PLUG, Rubber BS-700388

...
77
BRACKET, Fuel Tank BS-700370

...
78
COVER, Rubber BS-700390

...
79
PAD, Bracket BS-700389

...
80
KIT, Air Cleaner & Carburetor (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9 & 10) BS-701911

...
81
KIT, Starter Assembly (Includes Ref. Nos. 34, 35 & 36) BS-701912

...
82
KIT, Muffler Assembly (Includes Ref. Nos. 51, 52, 53 & 54) BS-702124

...
83
KIT, Expander Assembly (Includes Ref. Nos. 55, 56, 57, 58 & 59) BS-701916

...
84
KIT, Fuel Cap Assembly (Includes Ref. Nos. 64, 65, 66, 67, 68 & 69) BS-701894

...
85
KIT, Fuel Line Assembly (Includes Ref. Nos. 70, 71, 72 & 73) BS-701915

...
86
KIT, Fuel Tank Assembly (Includes Ref. Nos. 74, 75 & 76) BS-701917

...
87
KIT, Tank Bracket Assembly (Includes Ref. Nos. 77, 78 & 79) BS-701918

...
88
KIT, Start Reel Assembly (Includes Ref. Nos. 37, 38, 39 & 40) BS-701892

...
89
KIT, Magneto Assembly (Includes Ref. Nos. 45, 46, 47, 48 & 49) BS-701919

...
90
KIT, Shroud Assembly (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16) BS-701920

...
91
KIT, Cylinder Assembly (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 33, 42, 43, 44, 60, 61, 62, 63, 72 & 73) BS-701921

...
92
KIT, Cylinder Head (Includes Ref. Nos. 17, 18, 19 & 93) BS-702024

...
93
KIT, Piston (Includes Ref. Nos. 20, 21, 22 & 23) BS-702025

...
94
ENGINE ASSEMBLY, Complete BS-702023

...
95
KIT, Fuel Tank & Cap (Includes Ref. Nos. 84, 85 & 86) BS-702360

...
96
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3, 4 & 5) BS-702361

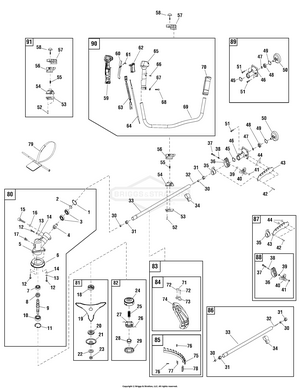

Shaft Group (866028_866034)

...
...
4
PINION BS-702423

...
6
COVER, Blade BS-700393

...
8
GEAR (Not a serviceable part. Order Kit Ref. No 80) BS-702424

...
9
SHAFT, Spline (Not a serviceable part. Order Kit Ref. No 80) BS-702425

...
12
BOLT, M5 x 12 BS-700399

...
13
WASHER, Spring, 5 BS-700400

...
14
WASHER, Flat, 5 BS-700401

...
15
* BOLT, M6 x 20 BS-700402

...
16
WASHER, Spring, 6 BS-700403

...
17

...
18
GASKET, Spline BS-700395

...
19

...
20
HOLDER BS-700841

...
21
PROTECTOR, Blade BS-701901

...
22
WASHER, Wave, Dia 10 BS-700773

...
23

...
26
ROPE, Bump Head BS-701922

...
30
BEARING, Oil BS-700407

...
31
RUBBER COVER, Bearing Oil BS-700406

...
32
DRIVE SHAFT BS-702429

...
33
SHAFT, Straight BS-702427

...
34
RETAINER, Wire BS-701906

...
35
RING, Hang BS-700420

...
36
RING FOR LIMIT BS-701909

...
40
HANDLE, Self Lock BS-701899

...
43
HANG HANDLE BS-701907

...
44
SPACER, Hang Handle BS-701908

...
50
CLUTCH DRUM, Complete BS-701471

...
53
BRACKET, Shaft, Lower BS-700798

...
54
BRACKET, Shaft, Upper BS-700799

...
55
SPRING BS-700839

...
56
BRACKET, Handle, Lower BS-700800

...
57
BRACKET, Handle, Upper BS-700801

...
58
BOLT, With Knob, Red BS-702441

...
59
COVER, Handle, Control Switch, LH BS-700779

...
60
HANDLE, Self Lock BS-700788

...
61
SPRING, Torsion BS-700787

...
62
LEVEL, Throttle BS-700786

...
63
STOP BUTTON, Complete BS-700780

...
64
CABLE, Comp. BS-700781

...
65
COVER, Handle, Control Switch, RH BS-700785

...
66
SCREW, Self Tapping, M3.5 x 13 BS-700784

...
67
WASHER, Flat, Dia 5 BS-700783

...
68
SCREW, M5 x 30 BS-700782

...
69
HANDLE BS-701898

...
70
COVER, Handle BS-700834

...
71
* BOLT, M5 x 10 BS-700792

...
72
* BOLT, M5 x 12 BS-700791

...
73
HOLDER, Saftey Guard BS-700793

...
74
SAFETY GUARD BS-700794

...
75
SECURING SADDLE BS-700796

...
76
SCREW, Self Tapping, ST4.2 x 16 BS-700795

...
77

...
78
COVER, Blade BS-700428

...
79

...
80
KIT, Gear Box Assembly (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 & 17) BS-702422

...
81
KIT, Blade Assembly (Includes Ref. Nos. 18, 19, 20, 21, 22 & 23) BS-702428

...
82
KIT, Bump Head Assembly (Includes Ref. Nos. 24, 25, 26, 27, 28 & 29) BS-701905

...
83
KIT, Guard Assembly (Includes Ref. Nos. 84 & 85) BS-701925

...
84
KIT, Blade Guard (Includes Ref. Nos. 71, 72, 73 & 74) BS-701926

...
85
KIT, Securing Saddle Assembly (Includes Ref. Nos. 75, 76, 77 & 78) BS-701927

...
86
KIT, Drive Shaft Assembly (Includes Ref. Nos. 30, 31, 32, 33 & 34) BS-702426

...
87
KIT, Hang Handle Assembly (Includes Ref. Nos. 35, 42, 43, 44 & 88) BS-701929

...
88
KIT, Limit Ring Assembly (Includes Ref. Nos. 36, 37, 38, 39, 40 & 41) BS-701930

...
89
KIT, Clutch Assembly (Includes Ref. Nos. 45, 46, 47, 48, 49, 50 & 51) BS-701931

...
90
KIT, Handle Assembly (Includes Ref. Nos. 59, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69 & 70) BS-701932

...
91
KIT, Handle Bracket Assembly (Includes Ref. Nos. 52, 53, 54, 55, 56, 57 & 58) BS-702439
...
...
...
