866027 Murray - BS436, Power Trowel (2011)

Model: 866027

Back To Assemblies

Save Part Not Listed?
product name

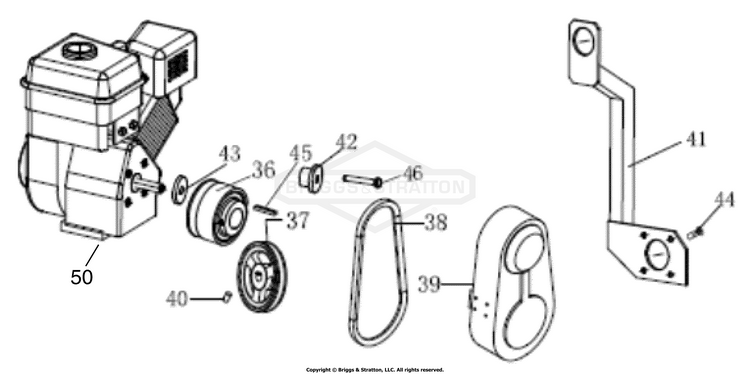

Engine Group (866027C)

...
...
36
CLUTCH ASSEMBLY BS-700702
...
37
PULLEY BS-700703
...
38
BELT BS-700704
...
39
BELT COVER ASSEMBLY BS-700705
...
40
SCREW, Set, M8 x 15 BS-700706
...
41
LIFTING HOOK BS-700707
...
42
LOCATING BUSH BS-700708
...
43
WASHER BS-700709
...
44
CAPSCREW, Hex Socket, Countersunk Head 5/16-24 x 5/8 BS-700710
...
45
KEY BS-700726
...
46
BOLT BS-700745
...
50
* ENGINE, Briggs & Stratton (Engine Model: 13H332-0137-B8) BS-700468
