866026 Murray - BS14, Concrete Cutter (2011)

Model: 866026

Save
 Part Not Listed?Part Not Listed?
product name

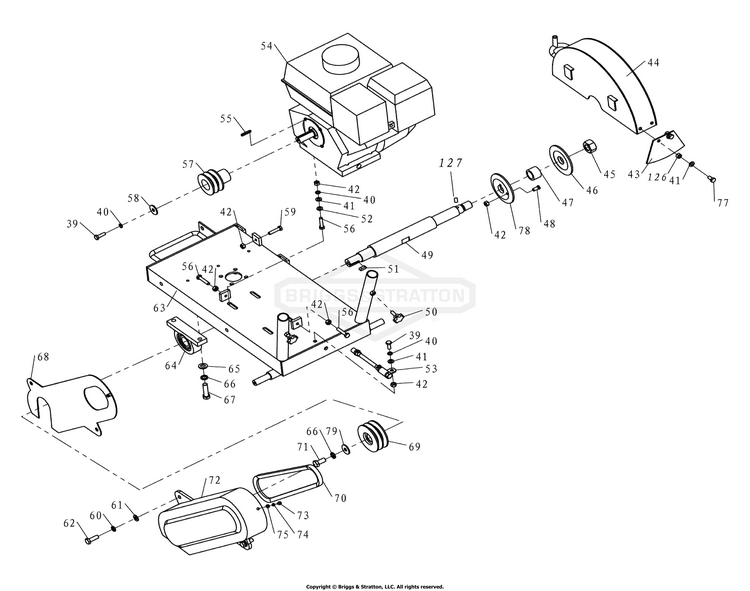

Base Assembly (866026)

...
...
39
BOLT, M8 x 25 BS-700634
...
40
WASHER, Spring, 8 BS-700635
...
41
WASHER, Flat, 8 BS-700636
...
42
NUT, M8 BS-700637
...
43
FENDER, Rubber BS-700638
...
44
COVER, Blade BS-700639
...
45
NUT BS-700640
...
46
BLADE FLANGE BS-700641
...
47
BUSHING, Blade BS-700642
...
48
BOLT, Blade Location BS-700643
...
49
SHAFT BS-700644
...
50
KNOB BOLT BS-700645
...
51
KEY BS-700646
...
52
WASHER BS-700647
...
53
DRAIN PIPE ASSEMBLY BS-702137
...
54
ENGINE, Briggs & Stratton BS-700468
...
55
KEY BS-700469
...
56
BOLT, M8 x 45 BS-700648
...
57
PULLEY, Engine BS-700649
...
58
KEY, Bushing BS-700650
...
59
NUT, M10 BS-700651
...
60
WASHER, Spring, 10 BS-700652
...
61
WASHER, Flat, 10 BS-700653
...
62
BOLT, M10 x 30 BS-700654
...
63
BASE PLATE BS-700655
...
64
BEARING, NSK206 BS-700656
...
65
WASHER, Flat, 12 BS-700657
...
66
WASHER, Spring, 12 BS-700658
...
67
BOLT, M12 x 45 BS-700659
...
68
COVER, Belt, Inner BS-700660
...
69
PULLY, Belt BS-700661
...
70
BELT BS-700662
...
71
BOLT, M12 x 25 BS-700663
...
72
COVER, Belt, Outer BS-700664
...
73
SCREW, Cross Recess Head BS-700665
...
74
WASHER, Spring, 6 BS-700666
...
75
WASHER, Flat, 6 BS-700667
...
78
BLADE FLANGE BS-701542
...
79
WASHER, Blade Shaft BS-702133
...
126
NUT, Nylon, M8 BS-702134
...
127
PIN, 6 x 12 BS-702135

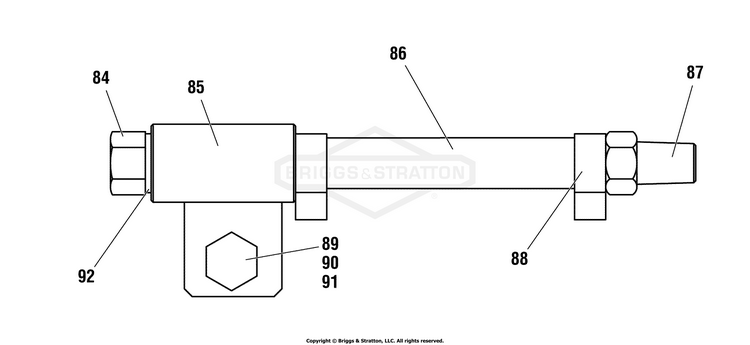

Drain Hose Assembly (702137)

...
...
84
PLUG, Hex Head BS-700516
...
85
NOZZLE BS-701490
...
86
HOSE BS-701525
...
87
TAPER JOINT BS-701557
...
88
SPRING CLAMP BS-701539
...
89
BOLT, M8 x 20, GB5783 BS-700524
...
90
WASHER, Spring, 8, GB93 BS-700509
...
91
NUT, M8 BS-700506
...
92
GASKET, Sealing, 14 BS-701480

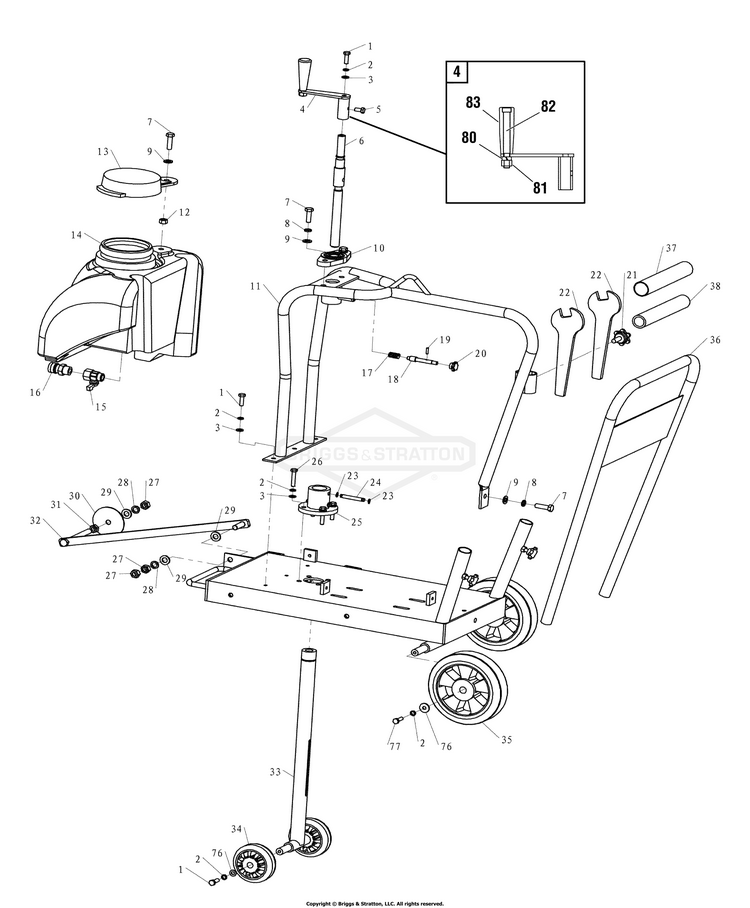

Tank Guard (866026)

...
...
1
BOLT, M8 x 25 BS-700597
...
2
WASHER, Spring, 8 BS-700598
...
3
WASHER, Flat, 8 BS-700599
...
4
HANDLE, Adjust, Blade Height BS-700600
...
5
BOLT, M8 x 12 BS-700601
...
6
ROD, Threaded BS-700602
...
7
BOLT, M10 x 35 BS-700603
...
8
WASHER, Spring, 10 BS-700604
...
9
WASHER, Flat, 10 BS-700605
...
10
BEARING BS-700606
...
11
GUARD, Tank BS-700607
...
12
BOLT, M10 BS-700608
...
13
COVER, Water Tank BS-700609
...
14
WATER TANK BS-700610
...
15
BALL VALVE, Brass,1/4" BS-700611
...
16
QUICK CONNECTOR BS-700459
...
17
SPRING BS-700612
...
18
PIN BS-700613
...
19
SPRING PIN BS-700614
...
20
NUT BS-700615
...
21
KNOB BOLT BS-700616
...
22
SPANNER BS-700617
...
23
RING, Retaining BS-700618
...
24
PIN BS-700619
...
25
PLATE, Guide BS-700620
...
26
BOLT, M8 x 30 BS-700621
...
27
NUT, M12 BS-700622
...
28
WASHER, Spring, 12 BS-700623
...
29
WASHER, Flat, 12 BS-700624
...
30
WHEEL, Guide BS-700625
...
31
NUT BS-700626
...
32
ROD, Guide BS-700627
...
33
CONNECTING ROD BS-700628
...
34
WHEEL, Front BS-700629
...
35
WHEEL, Rear BS-700630
...
36
HANDLE BS-700631
...
37
FOAM, Handle BS-700632
...
38
SHEATH, Handle BS-700633
...
76
WASHER BS-700647
...
77
BOLT, M8 x 20 BS-701541
...
80
WASHER, 10 BS-700652
...
81
NUT, M10 BS-701538
...
82
BOLT, Lock BS-701550
...
83
HANDLE BS-701549
...
--
SOCKET SPANNER, 6mm (Not Illustrated) BS-701564
...
--
WRENCH, Open End,13-16 (Not Illustrated) BS-701565
...
...
...
