866015 Murray - MX33X, Murray Brush Cutter (2010)

Model: 866015

Save
 Part Not Listed?Part Not Listed?
product name

Engine Group - MX33X (702082)

...
...
1
SCREW BS-700804
...
2
COVER, Cleaner, Outer BS-700805
...
3
FILTER BS-700317
...
5
COVER, Cleaner, Inner BS-702081
...
6
CARBURETOR BS-700808
...
7
GASKET, Carburetor BS-700327
...
9
ADMITTING PIPE BS-701910
...
10
GASKET, Admitting Pipe BS-700325
...
11
SHROUD, Front BS-700811
...
14
SHROUD, Rear BS-700812
...
15
SCREW, Self Tapping, 5×20 BS-700764
...
16
SCREW, Self Tapping, 4.2 × 30 BS-700765
...
17
BOLT, M5 x 18 BS-700391
...
18
CYLINDER BS-700814
...
19
GASKET, Cylinder BS-700334
...
20
RING, Piston BS-700338
...
21
PISTON BS-700339
...
22
PIN, Piston BS-700337
...
23
PIN RETAIN RING BS-700314
...
24
OIL SEAL, 11.7 × 22 × 7 BS-700345
...
25
CRANK CASE, Rear BS-700819
...
26
GASKET, Crank Case BS-700347
...
27
BEARING, 6201/P6 BS-700346
...
28
CRANK SHAFT ASSEMBLY BS-700817
...
29
KEY, 3 × 5 × 13 BS-700341
...
30
NEEDLE BEARING BS-700816
...
31
PIN, Cylindrical, B4 × 10 BS-700386
...
32
CRANK CASE, Front BS-700820
...
35
STARTER BS-700809
...
36
PAD, Starter BS-700329
...
41
FLY WHEEL BS-701893
...
42
WASHER, Flat, 8 BS-700380
...
43
WASHER, Spring, 8 BS-700379
...
44
NUT, M8 BS-700378
...
45
MAGNETO COIL BS-700353
...
46
CORD, Complete BS-700827
...
48
BOOT, Spark Plug BS-700352
...
49
CLIP, Spark Plug BS-700351
...
50
SPARK PLUG BS-700360
...
53
MUFFLER BS-700826
...
54
GASKET, Muffler BS-700825
...
55
WASHER, B BS-700383
...
56
SPRING, Clutch BS-701897
...
57
EXPANDER, Complete BS-700365
...
58
WASHER, Wave BS-700382
...
59
SCREW SHAFT BS-700767
...
60
COVER, Fan BS-700828
...
61
FLASH PAN BS-700362
...
73
FILTER, Fuel BS-701666
...
74
FUEL TANK BS-700831
...
75
PLUG, Rubber BS-700388
...
77
BRACKET, Tank BS-700370
...
78
COVER, Rubber BS-700390
...
79
PAD, Bracket BS-700389
...
80
KIT, Air Cleaner & Carburetor (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8 ,9 & 10) BS-702080
...
81
KIT, Starter Assembly (Includes Ref. Nos. 34, 35 & 36) BS-701912
...
82
KIT, Muffler Assembly (Includes Ref. Nos. 51, 52, 53 & 54) BS-701913
...
83
KIT, Expander Assembly (Includes Ref. Nos. 55, 56, 57, 58 & 59) BS-701916
...
84
LID, Fuel Tank, Complete (Includes Ref. Nos. 64, 65, 66, 67, 68 & 69) BS-701467
...
85
KIT, Fuel Line Assembly (Includes Ref. Nos. 70, 71, 72 & 73) BS-701915
...
86
KIT, Fuel Tank (Includes Ref. Nos. 74, 75 & 76) BS-701917
...
87
KIT, Tank Bracket Assembly (Includes Ref. Nos. 77, 78 & 79) BS-701918
...
88
START REEL, Complete (Includes Ref. Nos. 37, 38, 39 & 40) BS-700330
...
89
KIT, Magneto Assembly (Includes Ref. Nos. 45, 46, 47, 48 & 49) BS-701919
...
90
KIT, Shroud Assembly (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16) BS-702104
...
91
KIT, Cylinder Assembly (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 41, 42, 43, 44 & 92) BS-701921
...
92
KIT, Cylinder Head Group (Includes Ref. Nos. 17, 18, 19 & 93) BS-702024
...
93
KIT, Piston (Includes Ref. Nos. 20, 21, 22 & 23) BS-702025
...
94
ENGINE, Complete BS-702082
...
95
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3, 4 & 5) BS-702309
...
96
KIT, Fuel Tank & Cap (Includes Ref. Nos. 84, 85 & 86) BS-702310

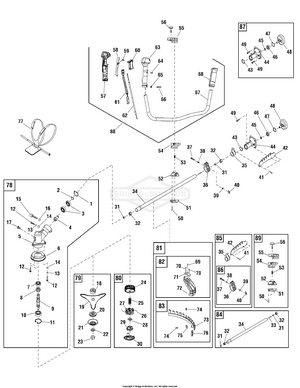

Shaft Group (866015_866019)

...
...
4
PINION BS-702423
...
6
COVER, Blade BS-700393
...
8
GEAR BS-702424
...
9
SHAFT, Spline BS-702425
...
12
BOLT, M5 x 12 (Not a serviceable part. Order Kit Ref. No 78) BS-700399
...
13
WASHER, Spring, 5 BS-700400
...
14
WASHER, Flat, 5 BS-700401
...
15
BOLT, M6 x 20 (Not a serviceable part. Order Kit Ref. No 78) BS-700402
...
16
WASHER, Spring, 6 (Not a serviceable part. Order Kit Ref. No 78) BS-700403
...
17
BOLT BS-700404
...
18
GASKET, Spline BS-700395
...
19
BLADE BS-701891
...
20
HOLDER BS-700841
...
21
PROTECTOR, Blade BS-701901
...
22
WASHER, Wave, 10 BS-700773
...
23
NUT BS-700397
...
31
BEARING, Oil BS-700407
...
32
RUBBER COVER, Bearing Oil BS-700406
...
33
DRIVE SHAFT BS-702429
...
34
SHAFT, Straight BS-702427
...
35
RING, Hang BS-700420
...
41
BOLT, M6 x 16 BS-702108
...
42
HANDLE, Hang BS-700421
...
48
CLUTCH DRUM, Complete BS-701471
...
51
BRACKET, Shaft, Lower BS-700798
...
52
BRACKET, Shaft, Upper BS-700799
...
53
SPRING BS-700839
...
54
BRACKET, Handle, Lower BS-700800
...
55
BRACKET, Handle, Upper BS-700801
...
56
BOLT, With Knob, Red BS-702441
...
57
COVER, Handle, Control Switch, LH BS-700779
...
58
HANDLE, Self Lock BS-700788
...
59
SPRING, Torsion BS-700787
...
60
LEVEL, Throttle BS-700786
...
61
STOP BUTTON, Complete BS-700780
...
62
CABLE, Complete BS-700781
...
63
COVER, Handle, Control Switch, RH BS-700785
...
64
SCREW, Self Tapping, M3.5 x 13 BS-700784
...
65
WASHER, Flat, 5 BS-700783
...
66
SCREW, M5 x 30 BS-700782
...
67
HANDLE BS-700833
...
68
COVER, Handle BS-700834
...
69
BOLT, M5 x 10 BS-700792
...
70
BOLT, M5 x 12 BS-700791
...
71
HOLDER, Safety Guard BS-700793
...
72
SAFTEY GUARD BS-700794
...
73
SECURING SADDLE BS-700837
...
74
SCREW, Self Tapping, ST4.2 x 16 BS-700795
...
75
BLADE BS-700427
...
76
COVER, Blade BS-700428
...
77
SHOULDER BELT BS-700797
...
78
KIT, Gear Box (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15, 16 & 17) BS-702422
...
79
KIT, Blade (Includes Ref. Nos. 18, 19, 20, 21, 22 & 23) BS-702428
...
80
KIT, Bump Head (Includes Ref. Nos. 24, 25, 26, 27, 28, 29 & 30) BS-700437
...
81
KIT, Guard Assembly (Includes Ref. Nos. 82 & 83) BS-702106
...
82
KIT, Blade Guard (Includes Ref. Nos. 69, 70, 71 & 72) BS-701926
...
83
KIT, Securing Saddle (Includes Ref. Nos. 73, 74, 75 & 76) BS-702107
...
84
KIT, Drive Shaft (Includes Ref. Nos. 31, 32, 33 & 34) BS-702426
...
85
KIT, Hang Handle (Includes Ref. Nos. 36, 41, 42 & 86) BS-702075
...
86
KIT, Limit Ring Assembly (Includes Ref. Nos. 36, 37, 38, 39 & 40) BS-702076
...
87
KIT, Clutch Assembly (Includes Ref. Nos. 43, 44, 45, 46, 47, 48 & 49) BS-701931
...
88
KIT, Handle Assembly (Includes Ref. Nos. 57, 58, 59, 60, 61, 62, 63, 64, 65, 66, 67 & 68) BS-702077
...
89
KIT, Handle Bracket Assembly (Includes Ref. Nos. 50, 51, 52, 53, 54, 55 & 56) BS-702439
...
...
...
