866014 Briggs and Stratton - SP33W, Brush Cutter (2010)

Model: 866014

Back To Assemblies

Save Part Not Listed?
product name

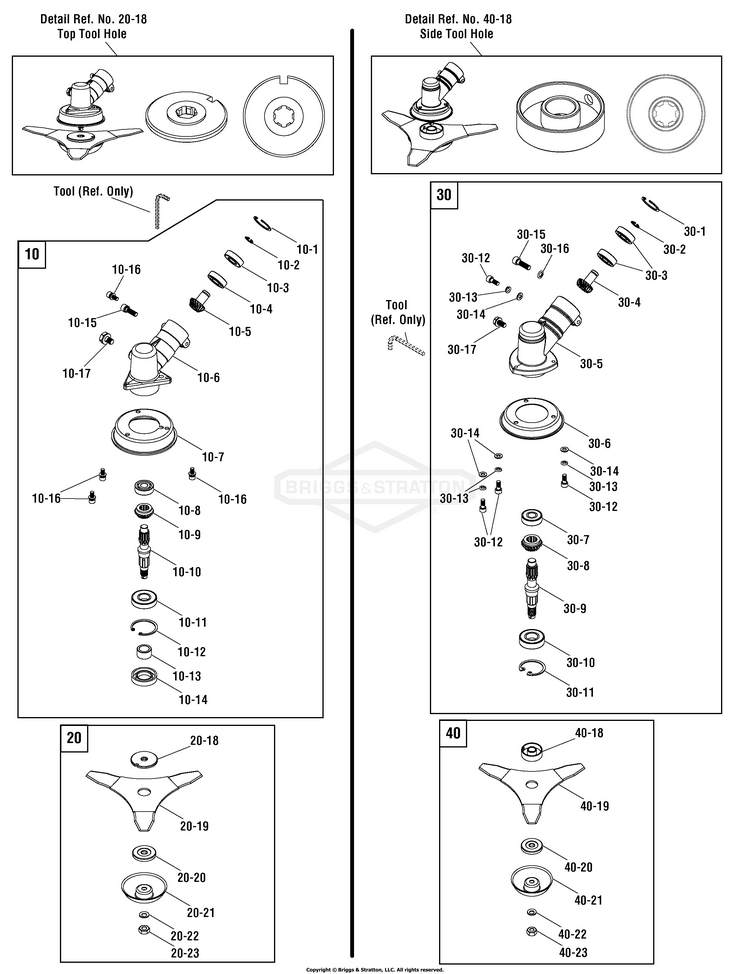

Gearbox & Blade Service Parts

...
...
10
KIT, GEARBOX (Top lock hole) (Includes Ref. Nos. 10-1, 10-2, 10-3, 10-4, 10-5, 10-6, 10-7, 10-8, 10-9, 10-10, 10-11, 10-12, 10-13, 10-14, 10-15, 10-16 & 10-17) BS-702079
...
10-5
PINION BS-702071
...
10-7
COVER, Blade BS-700769
...
10-9
GEAR BS-702072
...
10-10
SHAFT, Spline BS-702073
...
10-13
SEAL, Oil BS-700770
...
10-14
SLEEVE, Spline BS-700771
...
10-17
BOLT, M8 x 12 BS-701971
...
20
KIT, BLADE (Includes Ref. Nos. 20-18, 20-19, 20-20, 20-21, 20-22 & 20-23) BS-702105
...
20-18
GASKET, Spline BS-700772
...
20-19
BLADE BS-701891
...
20-20
HOLDER BS-700841
...
20-21
PROTECTOR, Blade BS-701901
...
20-22
WASHER, Wave, 10 BS-700773
...
20-23
NUT BS-700397
...
30
KIT, GEARBOX (Side lock hole) (Includes Ref. Nos. 30-1, 30-2, 30-3, 30-4, 30-5, 30-6, 30-7, 30-8, 30-9, 30-10, 30-11, 30-12, 30-13, 30-14, 30-15, 30-16 & 30-17) BS-702422
...
30-4
PINION BS-702423
...
30-6
COVER, Blade BS-700393
...
30-8
GEAR BS-702424
...
30-9
SHAFT, Spline BS-702425
...
30-12
BOLT, M5 x 12 BS-700399
...
30-13
WASHER, Spring, 5 BS-700400
...
30-14
WASHER, Flat, 5 BS-700401
...
30-15
BOLT, M6 x 20 (Not a serviceable part. Order Kit Ref. No 30) BS-700402
...
30-16
WASHER, Spring, 6 (Not a serviceable part. Order Kit Ref. No 30) BS-700403
...
30-17
BOLT BS-700404
...
40
KIT, BLADE (Includes Ref. Nos. 40-18, 40-19, 40-20, 40-21, 40-22 & 40-23) BS-702428
...
40-18
GASKET, Spline BS-700395
...
40-19
BLADE BS-701891
...
40-20
HOLDER BS-700841
...
40-21
PROTECTOR, Blade BS-701901
...
40-22
WASHER, Wave, 10 BS-700773
...
40-23
NUT BS-700397
