866014 Briggs and Stratton - SP33W, Brush Cutter (2010)

Model: 866014

Back To Assemblies

Save Part Not Listed?
product name

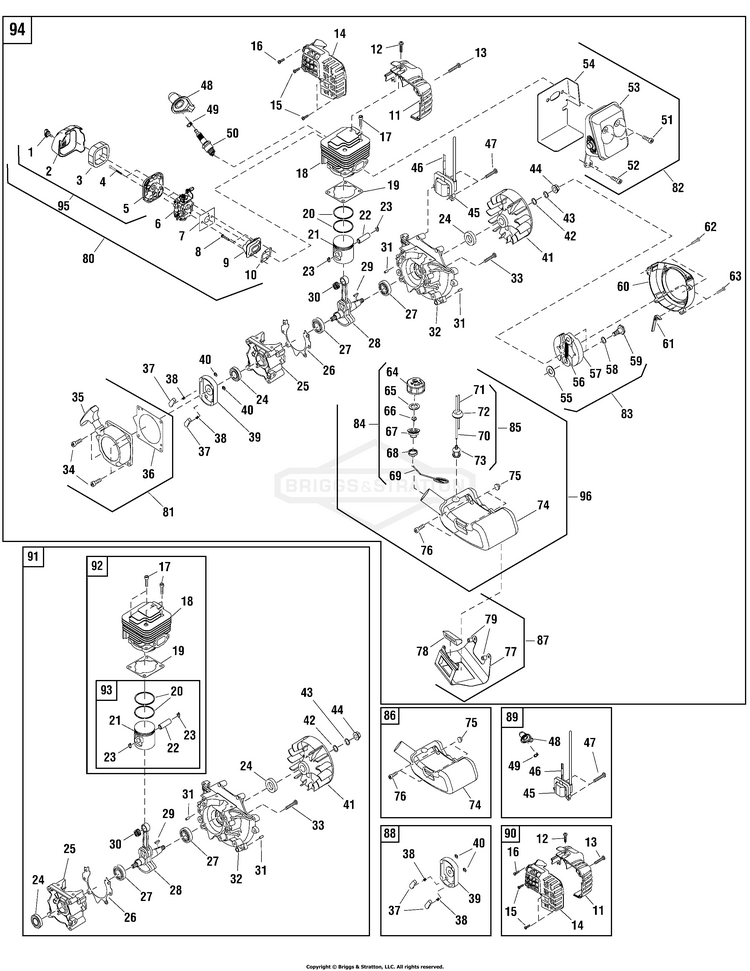

Engine Group - SP33W (702078)

...
...
1
SCREW BS-700804
...
2
COVER, Cleaner, Outer BS-700805
...
3
FILTER BS-700317
...
5
COVER, Cleaner, Inner BS-702081
...
6
CARBURETOR BS-700808
...
7
GASKET, Carburetor BS-700327
...
9
ADMITTING PIPE BS-701910
...
10
GASKET, Admitting Pipe BS-700325
...
11
SHROUD, Front BS-700762
...
14
SHROUD, Rear BS-700812
...
15
SCREW, Self Tapping, 5×20 BS-700764
...
16
SCREW, Self Tapping, 4.2 × 30 BS-700765
...
17
BOLT, M5 x 18 BS-700391
...
18
CYLINDER BS-700814
...
19
GASKET, Cylinder BS-700334
...
20
RING, Piston BS-700338
...
21
PISTON BS-700339
...
22
PIN, Piston BS-700337
...
23
PIN RETAIN RING BS-700314
...
24
OIL SEAL, 11.7 × 22 × 7 BS-700345
...
25
CRANK CASE, Rear BS-700819
...
26
GASKET, Crank Case BS-700347
...
27
BEARING, 6201/P6 BS-700346
...
28
CRANK SHAFT ASSEMBLY BS-700817
...
29
KEY, 3 × 5 × 13 BS-700341
...
30
NEEDLE BEARING BS-700816
...
31
PIN, Cylindrical, B4 × 10 BS-700386
...
32
CRANK CASE, Front BS-700820
...
35
STARTER BS-700809
...
36
PAD, Starter BS-700329
...
41
FLY WHEEL BS-701893
...
42
WASHER, Flat, 8 BS-700380
...
43
WASHER, Spring, 8 BS-700379
...
44
NUT, M8 BS-700378
...
45
MAGNETO COIL BS-700353
...
46
CORD, Complete BS-700827
...
48
BOOT, Spark Plug BS-700352
...
49
CLIP, Spark Plug BS-700351
...
50
SPARK PLUG BS-700360
...
53
MUFFLER BS-700826
...
54
GASKET, Muffler BS-700825
...
55
WASHER, B BS-700383
...
56
SPRING, Clutch BS-701897
...
57
EXPANDER, Complete BS-700365
...
58
WASHER, Wave BS-700382
...
59
SCREW SHAFT BS-700767
...
60
COVER, Fan BS-700828
...
61
FLASH PAN BS-700362
...
73
FILTER, Fuel BS-701666
...
74
FUEL TANK BS-700831
...
75
PLUG, Rubber BS-700388
...
77
BRACKET, Tank BS-700370
...
78
COVER, Rubber BS-700390
...
79
PAD, Bracket BS-700389
...
80
KIT, Air Cleaner & Carburetor (Includes Ref. Nos. 1, 2, 3, 4, 5, 6, 7, 8 ,9 & 10) BS-702080
...
81
KIT, Starter Assembly (Includes Ref. Nos. 34, 35 & 36) BS-701912
...
82
KIT, Muffler Assembly (Includes Ref. Nos. 51, 52, 53 & 54) BS-701913
...
83
KIT, Expander Assembly (Includes Ref. Nos. 55, 56, 57, 58 & 59) BS-701916
...
84
LID, Fuel Tank, Complete (Includes Ref. Nos. 64, 65, 66, 67, 68 & 69) BS-701467
...
85
KIT, Fuel Line Assembly (Includes Ref. Nos. 70, 71, 72 & 73) BS-701915
...
86
KIT, Fuel Tank Assembly (Includes Ref. Nos. 74, 75 & 76) BS-701917
...
87
KIT, Tank Bracket Assembly (Includes Ref. Nos. 77, 78 & 79) BS-701918
...
88
START REEL, Complete (Includes Ref. Nos. 37, 38, 39 & 40) BS-700330
...
89
KIT, Magneto Assembly (Includes Ref. Nos. 45, 46, 47, 48 & 49) BS-701919
...
90
KIT, Shroud Assembly (Includes Ref. Nos. 11, 12, 13, 14, 15 & 16) BS-701920
...
91
KIT, Cylinder Assembly (Includes Ref. Nos. 24, 25, 26, 27, 28, 29, 30, 31, 32, 33, 41, 42, 43, 44 & 92) BS-701921
...
92
KIT, Cylinder Head Group (Includes Ref. Nos. 17, 18, 19 & 93) BS-702024
...
93
KIT, Piston (Includes Ref. Nos. 20, 21, 22 & 23) BS-702025
...
94
ENGINE ASSEMBLY, Complete BS-702078
...
95
KIT, Air Cleaner (Includes Ref. Nos. 1, 2, 3, 4 & 5) BS-702309
...
96
KIT, Fuel Tank & Cap (Includes Ref. Nos. 84, 85 & 86) BS-702310
