866008 Briggs and Stratton - BC335, Brush Cutter (2010)

Model: 866008

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

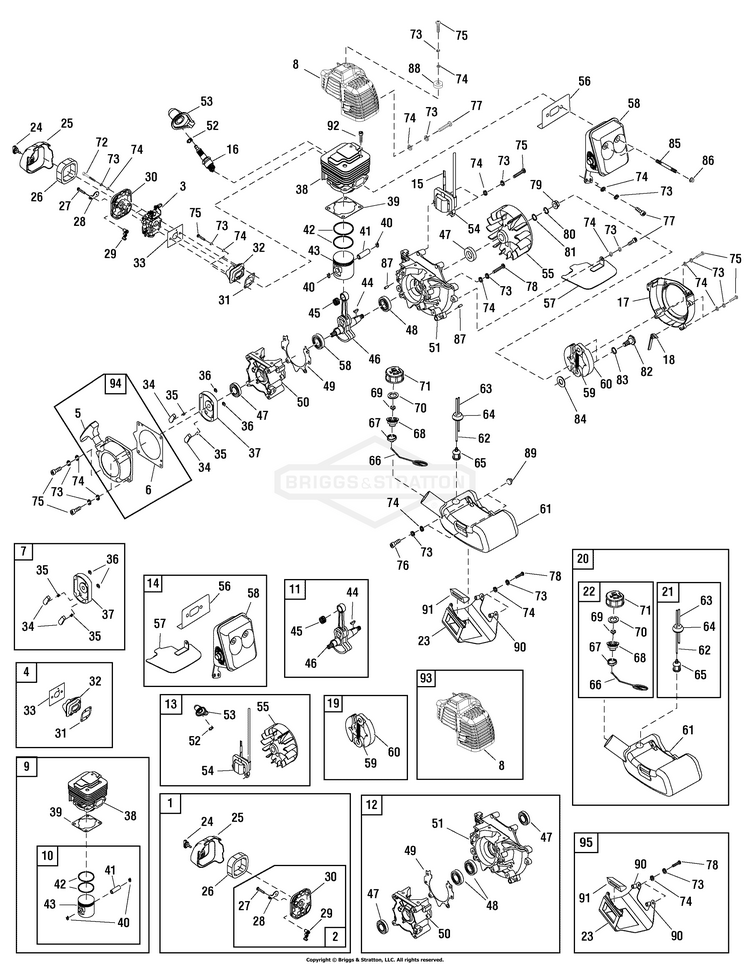

Engine Group - BC335 (866008e)

...
...
1
KIT, Air Cleaner Assembly, Complete (Includes Ref. Nos. 2, 24, 25 & 26) BS-700313
...
2
KIT, Air Cleaner Assembly, Inner (Includes Ref. Nos. 27, 28, 29 & 30) BS-700318
...
3
CARBURETOR BS-700323
...
4
KIT, Admitting Pipe Assembly (Includes Ref. Nos. 31, 32 & 33) BS-700324
...
5
STARTER, Rewind BS-700328
...
6
PAD, Starter BS-700329
...
7
KIT, Start Reel Assembly (Includes Ref. Nos. 34, 35, 36 & 37) BS-700330
...
8
SHROUD BS-700331
...
9
KIT, Cylinder Assembly (Includes Ref. Nos. 10, 38 & 39) BS-700332
...
10
KIT, Piston (Includes Ref. Nos. 40, 41, 42 & 43) BS-702025
...
11
KIT, Crank Shaft Assembly (Includes Ref. Nos. 44, 45 & 46) BS-700340
...
12
KIT, Cylinder Case Assembly (Includes Ref. Nos. 47, 48, 49, 50 & 51) BS-700344
...
13
KIT, Magneto Assembly (Includes Ref. Nos. 52, 53, 54 & 55) BS-700350
...
14
KIT, Muffler Assembly (Includes Ref. Nos. 56, 57 & 58) BS-700355
...
15
CORD BS-700359
...
16
SPARK PLUG BS-700360
...
17
COVER, Fan BS-700361
...
18
FLASH PAN BS-700362
...
19
KIT, Expander Assembly (Includes Ref. Nos. 59 & 60) BS-700363
...
20
KIT, Fuel Tank Assembly (Includes Ref. Nos. 21, 22 & 61) BS-700366
...
21
KIT, Fuel Line Assembly (Includes Ref. Nos. 62, 63, 64 & 65) BS-700368
...
22
KIT, Fuel Cap Assembly (Includes Ref. Nos. 66, 67, 68, 69, 70 & 71) BS-700369
...
23
BRACKET, Tank BS-700370
...
24
SCREW BS-700315
...
25
COVER, Cleaner, Outer BS-700316
...
26
FILTER BS-700317
...
27
SCREW, Self Tapping, ST4.2 x 12 BS-700319
...
28
CHOKE VALVE BS-700320
...
29
HANDLE, Choke Valve BS-700321
...
30
COVER, Cleaner, Inner BS-700322
...
31
GASKET, Admitting Pipe BS-700325
...
32
ADMITTING PIPE BS-700326
...
33
GASKET, Carburetor BS-700327
...
38
CYLINDER BS-700333
...
39
GASKET, Cylinder BS-700334
...
40
RING, Pin Retain BS-700314
...
41
PIN, Piston BS-700337
...
42
RING, Piston BS-700338
...
43
PISTON BS-700339
...
44
KEY, 3 x 5 x 13 BS-700341
...
45
BEARING, Needle BS-700342
...
46
CRANKSHAFT BS-700343
...
47
SEAL, Oil, 11.7 x 22 x 7 BS-700345
...
48
BEARING, 6201/P6 BS-700346
...
49
GASKET, Crank Case BS-700347
...
50
CRANK CASE, Rear BS-700348
...
51
CRANK CASE, Front BS-700349
...
52
CLIP, Spark Plug BS-700351
...
53
BOOT, Spark Pin BS-700352
...
54
MAGNETO COIL BS-700353
...
55
FLY WHEEL BS-700354
...
56
GASKET, Muffler BS-700356
...
57
CLAPBOARD BS-700357
...
58
MUFFLER BS-700358
...
59
SPRING, Extension BS-700364
...
60
EXPANDER, Complete BS-700365
...
61
TANK, Fuel BS-700367
...
65
FILTER, Fuel BS-701807
...
72
BOLT, M5 x 50 BS-700371
...
73
WASHER, Spring, 5 BS-700372
...
74
WASHER, Flat, 5 BS-700373
...
75
BOLT, M5 x 20 BS-700374
...
76
BOLT, M5 x 16 BS-700375
...
77
BOLT, M5 x 12 BS-700376
...
78
BOLT, M5 x 30 BS-700377
...
79
NUT, M8 BS-700378
...
80
WASHER, Spring, 8 BS-700379
...
81
WASHER, Flat, 8 BS-700380
...
82
SCREW, Shaft BS-700381
...
83
WASHER, Wave BS-700382
...
84
WASHER, B BS-700383
...
85
BOLT, Muffler BS-700384
...
86
NUT, M5 BS-700385
...
87
PIN, Cylindrical, B4 x 10 BS-700386
...
88
GASKET BS-700387
...
89
PLUG, Rubber BS-700388
...
90
PAD, Bracket BS-700389
...
91
COVER, Rubber BS-700390
...
92
BOLT, M5 x 18 BS-700391
...
93
KIT, Shroud Assembly (Includes Ref. No. 8) BS-701806
...
94
KIT, Starter Assembly (Includes Ref. Nos. 5 & 6) BS-701808
...
95
KIT, Tank Bracket (Includes Ref. No. 23, 73, 74, 78, 90 & 91) BS-701665
