866008 Briggs and Stratton - BC335, Brush Cutter (2010)

Model: 866008

Back To Assemblies

Save Part Not Listed?
product name

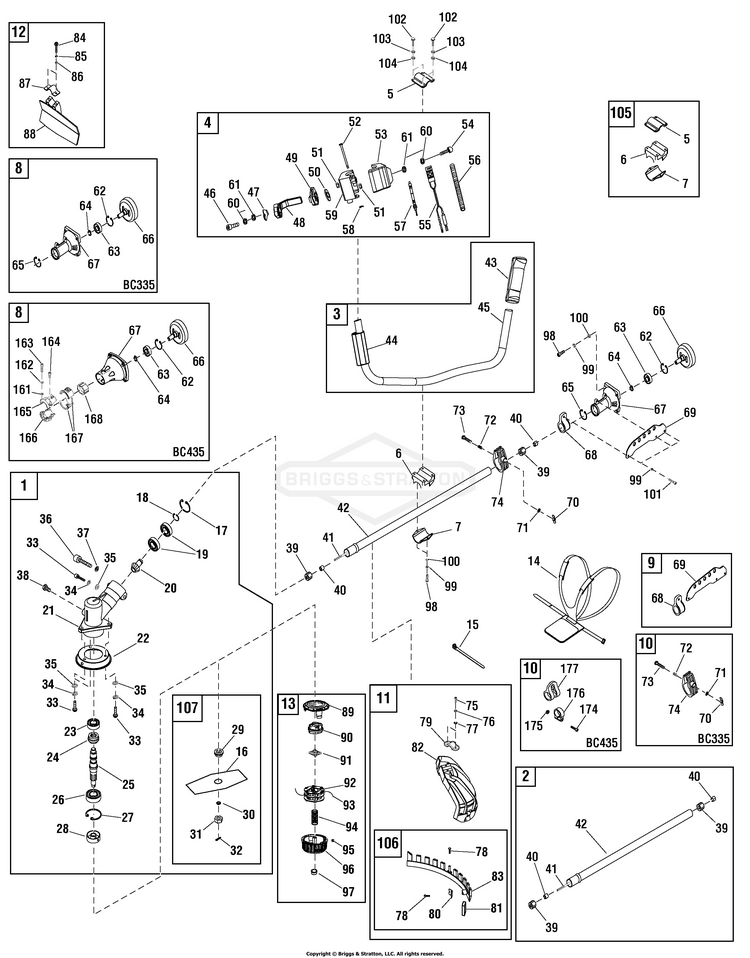

Main Unit (866008_866009)

...
...
1
KIT, Gear Box Assembly (Includes Ref. Nos. 17, 18, 19, 20, 21, 22, 23, 24, 25, 26, 27, 33, 34, 35, 36, 37, 38 & 107) BS-700392
...
2
KIT, Drive Shaft Assembly, BC335 (Includes Ref. Nos. 39, 40, 41 & 42) BS-700405
...
2
KIT, Drive Shaft Assembly, BC435 (Includes Ref. Nos. 39, 40, 41 & 42) BS-700887
...
3
KIT, Handle Assembly (Includes Ref. Nos. 43, 44 & 45) BS-700410
...
4
KIT, Throttle Control Switch (Includes Ref. Nos. 46, 47, 48, 49, 50, 51, 52, 53, 54, 55, 56, 57, 58, 59, 60 & 61) BS-700414
...
5
CAP, Upper BS-700415
...
6
BRACKET, Handle BS-700416
...
7
CAP, Lower BS-700417
...
8
KIT, Clutch Assembly, BC335 (Includes Ref. Nos. 62, 63, 64, 65, 66 & 67) BS-700418
...
8
KIT, Clutch Assembly, BC435 (Includes Ref. Nos. 61, 62, 63, 64, 66, 67, 161, 162, 163, 164, 165, 166, 167 &168) BS-700889
...
9
KIT, Hang Ring, BC335 (Includes Ref. Nos. 68 & 69) BS-700419
...
10
KIT, Ring for Limit, BC335 (Includes Ref. Nos. 70, 71, 72, 73 & 74) BS-700422
...
10
KIT, Ring for Limit, BC435 (Includes Ref. Nos. 174, 175, 176 & 177) BS-700897
...
11
KIT, Guard Assembly (Includes Ref. Nos. 75, 76, 77, 79, 82, & 106) BS-700423
...
12
KIT, Safety Guard Assembly (Includes Ref. Nos. 84, 85, 86, 87 & 88) BS-700432
...
13
KIT, Bump Head Assembly (Includes Ref. Nos. 89, 90, 91, 92, 93, 94, 95, 96 & 97) BS-700437
...
14
SHOULDER HARNESS BS-700438
...
15
BAND, Wire Clamp BS-700439
...
16
BLADE BS-700440
...
22
COVER, Blade BS-700393
...
28
GASKET, Spline BS-700394
...
29
HOLDER BS-700395
...
30
WASHER, 10 BS-700396
...
31
NUT BS-700397
...
32
SPLIT PIN BS-700398
...
33
BOLT, M5 x 12 BS-700399
...
34
WASHER, Spring, 5 BS-700400
...
35
WASHER, Flat, 5 BS-700401
...
36
BOLT, M6 x 20 BS-700402
...
37
WASHER, Spring, 6 BS-700403
...
38
BOLT BS-700404
...
39
COVER, Rubber BS-700406
...
40
BEARING, Oil BS-700407
...
41
SHAFT, Drive BS-700408
...
42
SHAFT, Straight, BC335 BS-700888
...
42
SHAFT, Straight, BC435 BS-700409
...
43
COVER, Handle, LH BS-700411
...
44
COVER, Handle, RH, Rubber BS-700412
...
45
HANDLE BS-700413
...
46
BOLT, M5 x 16 BS-700375
...
54
BOLT, M5 x 20 BS-700374
...
60
WASHER, Spring, 5 BS-700372
...
61
WASHER, Flat, 5 BS-700373
...
66
CLUTCH DRUM, Complete BS-701471
...
67
CASE, Clutch, BC435 BS-700896
...
68
RING, Hang (Used on BC335) BS-700420
...
69
HANDLE, Hang (Used on BC335) BS-700421
...
75
SCREW, M5 x16 BS-700424
...
76
WASHER, Spring, 5 BS-700400
...
77
WASHER, Flat, 5 BS-700401
...
78
SCREW, Self Tapping, ST4.2 x 16 BS-700425
...
79
BRACKET, Safety Guard BS-700426
...
80
BLADE BS-700427
...
81
COVER, Blade BS-700428
...
82
SAFETY GUARD BS-700429
...
83
SECURING SADDLE BS-700431
...
84
BOLT, M6 x 20 BS-700430
...
85
WASHER, Spring, 6 BS-700433
...
86
WASHER, Flat, 6 BS-700434
...
87
HOLDER BS-700435
...
88
SAFETY GUARD BS-700436
...
98
BOLT, M6 x 20 BS-700402
...
99
WASHER, Spring, 6 BS-700403
...
100
WASHER, Flat, 6 BS-700443
...
101
SCREW, M6 x 16 (Used on BC335) BS-700444
...
102
SCREW, M5 x 16 BS-700424
...
103
WASHER, Spring, 5 BS-700400
...
104
WASHER, Flat, 5 BS-700401
...
105
KIT, Handle Bracket Assembly (Includes Ref. Nos. 5, 6 & 7) BS-701811
...
106
KIT, Securing Saddle Assembly (Includes Ref. Nos. 78, 80, 81 & 83) BS-701812
...
107
KIT, Blade Assembly (Includes Ref. Nos. 29, 30, 31 & 32) BS-701813
...
161
WASHER, Flat, 5 (Used on BC435) BS-700401
...
162
WASHER, Spring, 5 (Used on BC435) BS-700400
...
163
BOLT, M5 x 20 (Used on BC435) BS-700890
...
164
BOLT, M5 x 10 (Used on BC435) BS-700891
...
165
SEMICIRCULAR BOARD A (Used on BC435) BS-700892
...
166
SEMICIRCULAR BOARD B (Used on BC435) BS-700893
...
167
BOOT, Rubber, A (Used on BC435) BS-700894
...
168
BOOT, Rubber, B (Used on BC435) BS-700895
...
174
BOLT, M5 x 20 (Used on BC435) BS-700890
...
175
NUT, M5 (Used on BC435) BS-700899
...
176
RING FOR LIMIT, 28 (Used on BC435) BS-700900
...
177
HANG RING, 28 (Used on BC435) BS-700901
