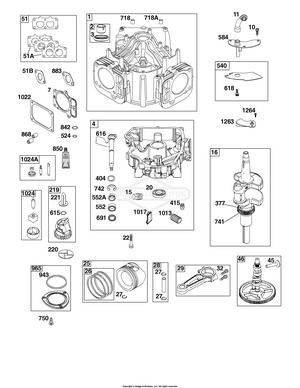

797091 Briggs and Stratton Short Block Assembly

Model: 797091

Save
Part Not Listed?Part Not Listed?

product name

SHORT BLOCK

...
...
1
CYLINDER ASSEMBLY BS-594970

...
2
KIT, Bushing/Seal (Magneto Side) BS-797673

...
3
SEAL, Oil (Magneto Side) BS-391086S

...
4
SUMP, Engine BS-594974

...
7
GASKET, Cylinder Head BS-693997

...
10
SCREW (Breather Assembly) BS-691108

...
11
TUBE, Breather BS-594163

...
15
PLUG, Oil Drain BS-690946

...
16
CRANKSHAFT BS-597790

...
20
SEAL, Oil (PTO Side) BS-795387

...
22
SCREW (Crankcase Cover/Sump) BS-694966

...
25
PISTON ASSEMBLY BS-792023

...
25
PISTON ASSEMBLY (.020" Oversize) BS-792072

...
26
SET, Ring BS-792026

...
26
SET, Ring (.020" Oversize) BS-792073

...
27
LOCK, Piston Pin BS-690975

...
28
PIN, Piston BS-593650

...
29
ROD, Connecting BS-84007297

...
32
SCREW (Connecting Rod) BS-690976

...
45
TAPPET, Valve BS-690977

...
46
CAMSHAFT BS-797242

...
51
GASKET, Intake BS-795123

...
51A
GASKET, Intake BS-690949

...
51B
GASKET, Intake BS-690949

...
219
GEAR, Governor BS-793338

...
220
WASHER (Governor Gear) BS-799772

...
221
CUP, Governor BS-841026

...
377
KEY, Woodruff BS-690979

...
404
WASHER (Governor Crank) BS-690442

...
415

...
524
SEAL, O-Ring (Dipstick Tube) BS-691032

...
540
PLATE, Baffle BS-594325

...
552
BUSHING, Governor Crank BS-796638

...
552A
BUSHING, Governor Crank BS-690553

...
584
COVER, Breather Passage BS-594164

...
615
RETAINER, Governor Shaft BS-698290

...
616
CRANK, Governor BS-691045

...
618

...
691
SEAL, Governor Shaft BS-790574

...
718
PIN, Locating BS-690959

...
718A
PIN, Locating BS-594988

...
741
GEAR, Timing BS-690980

...
742
RETAINER, E Ring BS-690328

...
750
SCREW (Oil Pump Cover) BS-796208

...
842
SEAL, O-Ring (Dipstick Cap) BS-691031

...
850
SEALANT, Liquid BS-100106

...
868
SEAL, Valve BS-690968

...
883
GASKET, Exhaust BS-690970

...
943
SEAL, O-Ring (Oil Pump Cover) BS-796222

...
965
COVER, Oil Pump BS-796221

...
1013
NIPPLE, Oil Filter BS-690954

...
1017
SCREEN, Oil Pump BS-796214

...
1022
GASKET, Rocker Cover BS-690971

...
1024
PUMP, Oil BS-796220

...
1024A
PUMP-OIL BS-794644

...
1263
REED, Breather BS-594166

...
1264
SCREW (Breather Reed) BS-594165
...
...
...
