7800890 Murray - M22550FC, 22" Walk Behind (2012)

Model: 7800890

Save Part Not Listed?
product name

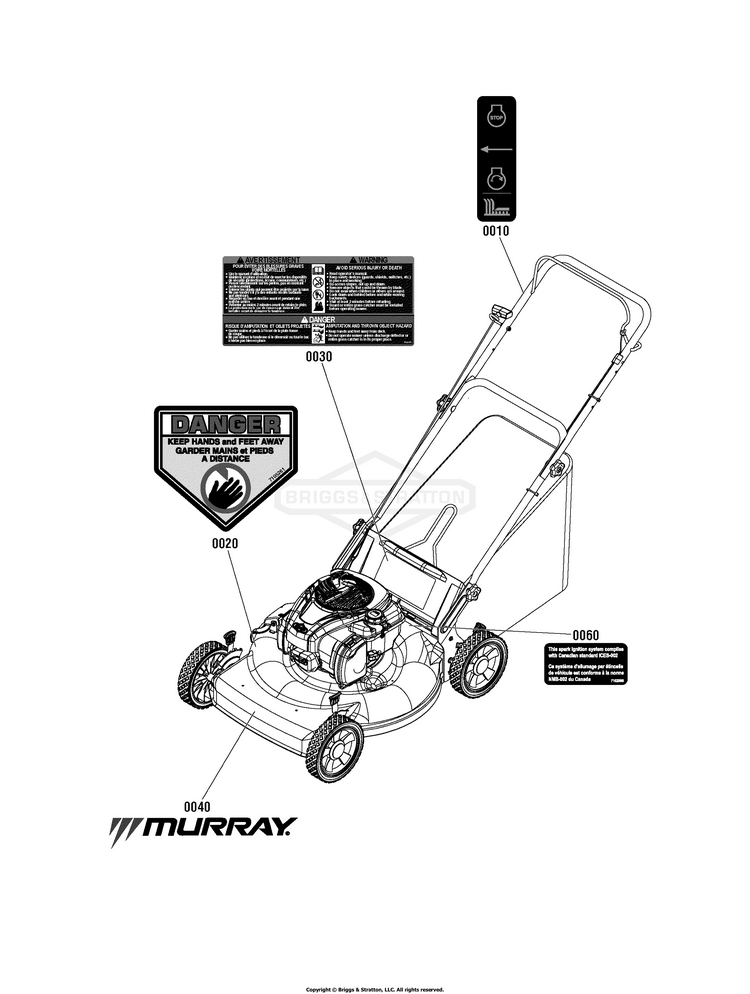

Decals Group (7501193)

...
...
0010
DECAL, OPC Bail International Symbol BS-7029782MA
...
0020
DECAL SHEET, WARNINGS BS-7106353YP
...
0030
DECAL, WB Safety, French/English BS-7101671YP
...
0040
DECAL, Murray Logo BS-1738309YP
...
0060
DECAL, ICES, Canadian Spark Compliance BS-7102996YP

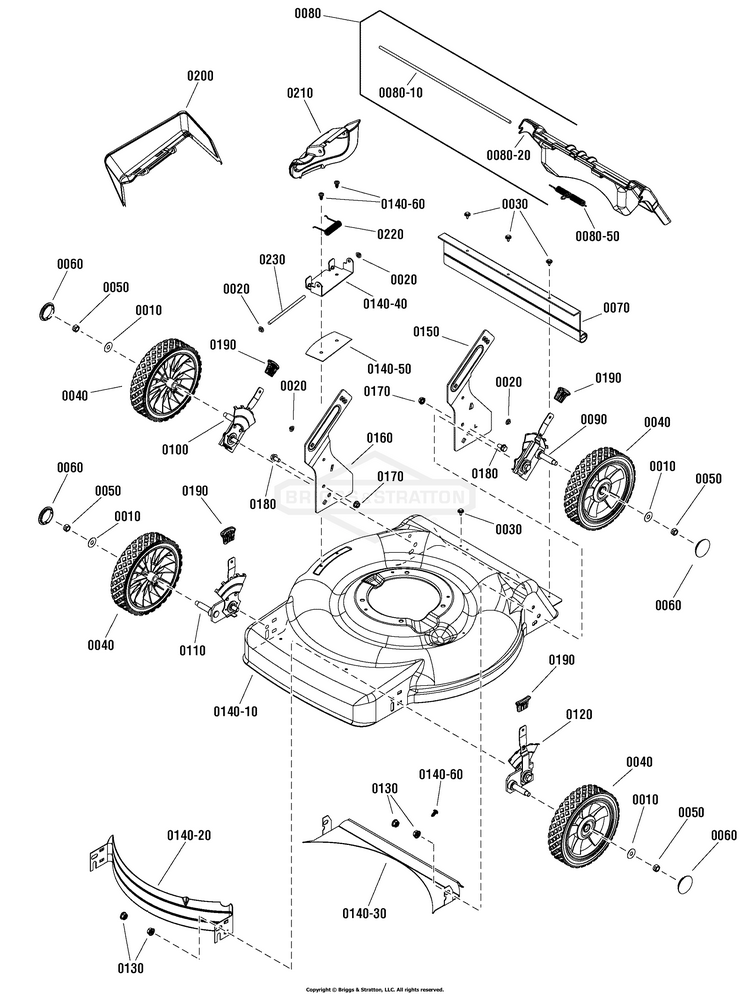

Deck Group (7503007)

...
...
0010
WASHER, FLAT, .377X1 BS-703966
...
0020
PUSHNUT, CAP, 1/4 BS-704005
...
0030
HWST, 10-24X.50 SEMS BS-7091286YP
...
0040
WHEEL, 8 x 2 Diamond-Pewter BS-7502378YP
...
0050
NUT, 3/8-16 BS-703347
...
0060
HUBCAP, P290-Black BS-1751539YP
...
0070
GUARD, Rear, 22" Deck Mower BS-7103347YP
...
0080
DOOR ASSEMBLY BS-7500416YP
...
0080-10
ROD, Pivot, Rear Door BS-7101070YP
...
0080-20
DOOR, Rear Discharge, 22" Walk Mower BS-7101243YP
...
0080-50
SPRING, Torsion, Rear Door, 22" Walk Mower BS-7101461YP
...
0090
ASSY,HOC,LT,22 WBM BS-7501055YP
...
0100
ASSY,HOC,RT,22 WBM BS-7501056YP
...
0110
HOC ASSY, RF, 22 WBM BS-7501293YP
...
0120
HOC ASSY, LF, 22 WBM BS-7501294YP
...
0130
NUT, 3/8-16 BS-703333
...
0140-10
DECK, 22" Walk, Push BS-7300401BIYP
...
0140-20
BAFFLE, Front, 22" WBM BS-7300440BIYP
...
0140-30
BAFFLE, Rear, 22" Deck BS-7300854BIYP
...
0140-40
BRACKET, Chute BS-7300855BIYP
...
0140-50
PLATE, Mulch BS-7300856BIYP
...
0140-60
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0150
BRACKET, Lower Handle, Left BS-7300668AYP
...
0160
BRACKET, Lower Handle, Right BS-7300669AYP
...
0170
NUT, 5/16-18, GR5 BS-703409
...
0180
BOLT, 5/16-18X0.625 BS-703823
...
0190
GRIP, HT LATCH, BLACK BS-7103793YP
...
0200
SIDE CHUTE, Plastic, Black BS-1101097MA
...
0210
COVER, Mulch, Plastic, Black BS-1101098MA
...
0220
SPRING, Torsion, Chute BS-166X38MA
...
0230
ROD, Pivot BS-7101067YP

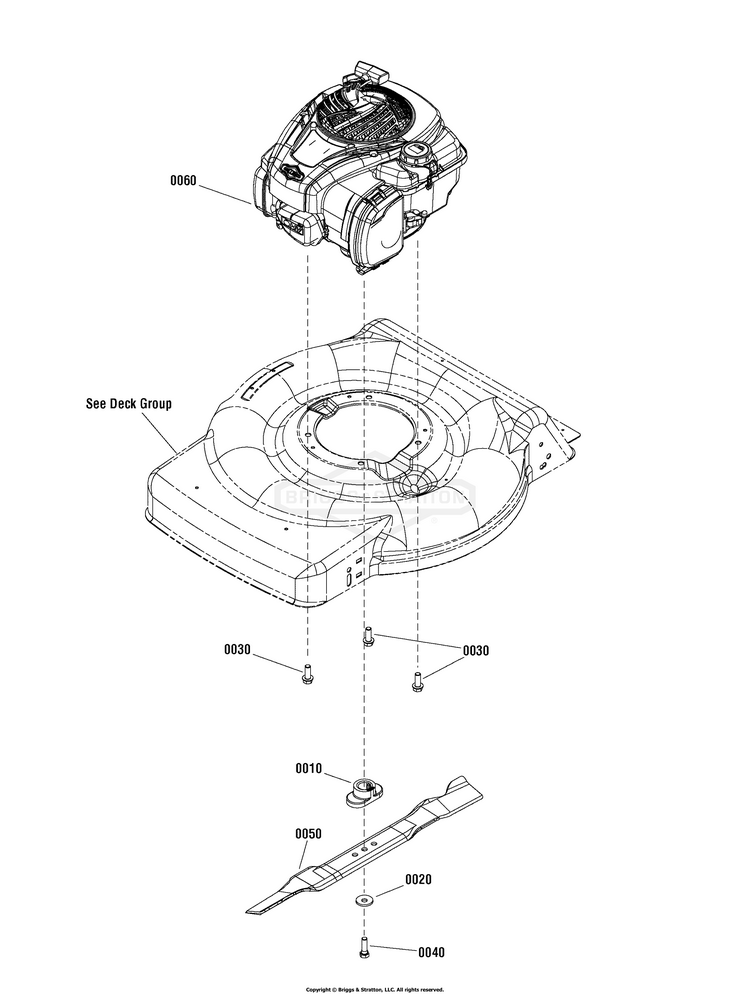

Engine Group (7502876)

...
...
0010
HUB, Blade, 22" Push BS-1101825MA
...
0020
WASHER, Bellville, .38" ID x 1.183 OD BS-1101989MA
...
0030
SCREW, Hex Washer Head, Self Tap, 3/8-16 x 1 BS-704000
...
0040
SCREW, 3/8-24 x 1-1/4" Hex Head Cap, GR 5 BS-7090824YP
...
0050
BLADE, 22", WALK MWR BS-7100851AYP
...
0060
* Engine, 5.5TP Briggs & Stratton (Engine Model: 09P702-0036-F1) BS-09P702-0036-F1

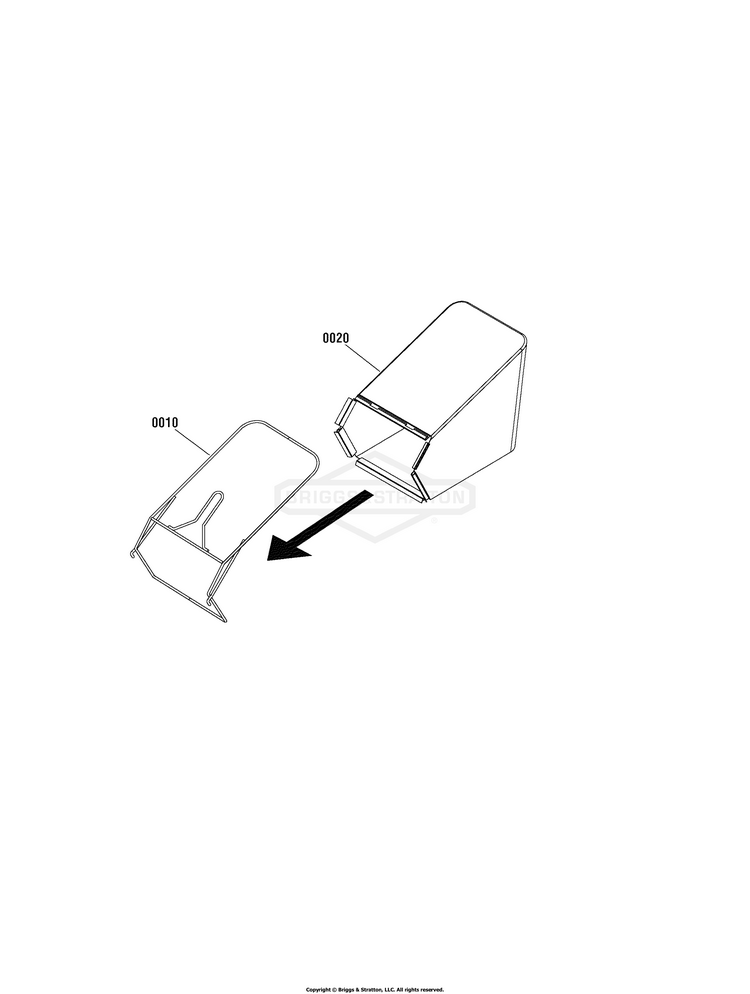

Grass Catcher (7101230)

...
...
0010
GRASS BAG, 22" Rear Discharge BS-7102573YP
...
0020
WELDMENT, Frame, Grass Bag, 22" Walk-Behind BS-7101230AYP

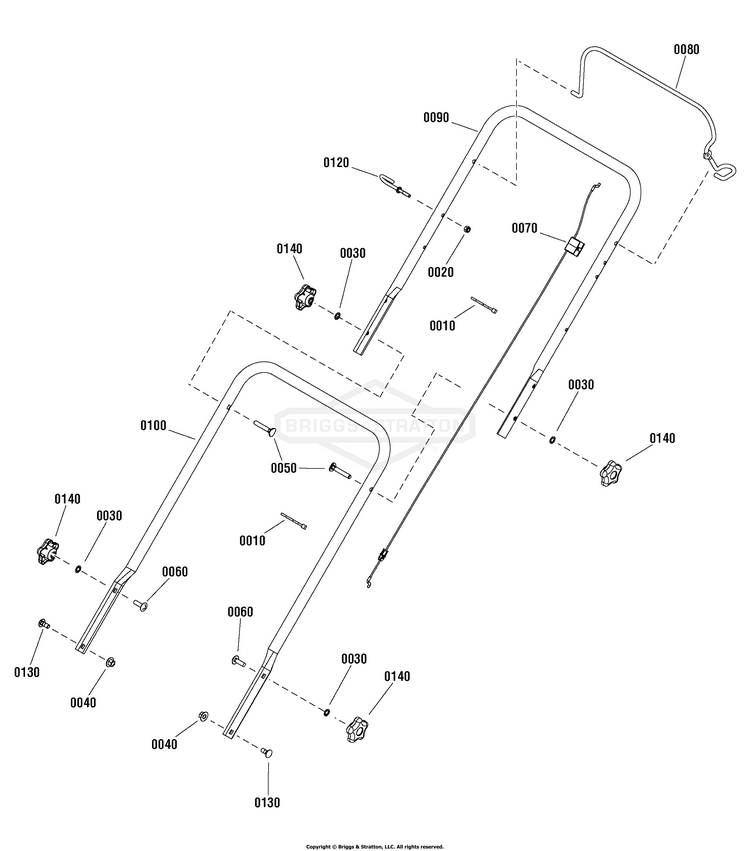

Handles Group (7502023)

...
...
0010
WIRE TIE, 11 Inch Std Blk Nylon BS-7024649YP
...
0020
NUT, 1/4-20, NYLOCK BS-703232
...
0030
WASHER, 5/16 BS-703587
...
0040
NUT, 5/16-18 BS-704001
...
0050
BOLT, 5/16-18X2 BS-703059
...
0060
BOLT, 5/16-18 X 1", C BS-5025145X8SM
...
0070
CABLE, Bail, 22" WBM, (41.50" overall length) BS-7101330YP
...
0080
BAIL, OPC Push BS-7101675AYP
...
0090
HANDLE, Upper BS-7300705AMA
...
0100
HANDLE, Lower BS-7301013AYP
...
0120
ROPE GUIDE-UPPER BS-071530MA
...
0130
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0140
KNOB,HANDLE,5 PRONG BS-7105085YP
