7800889 Murray - MD2250FC, 22" Walk Behind (2012)

Model: 7800889

Back To Assemblies

Save Part Not Listed?
product name

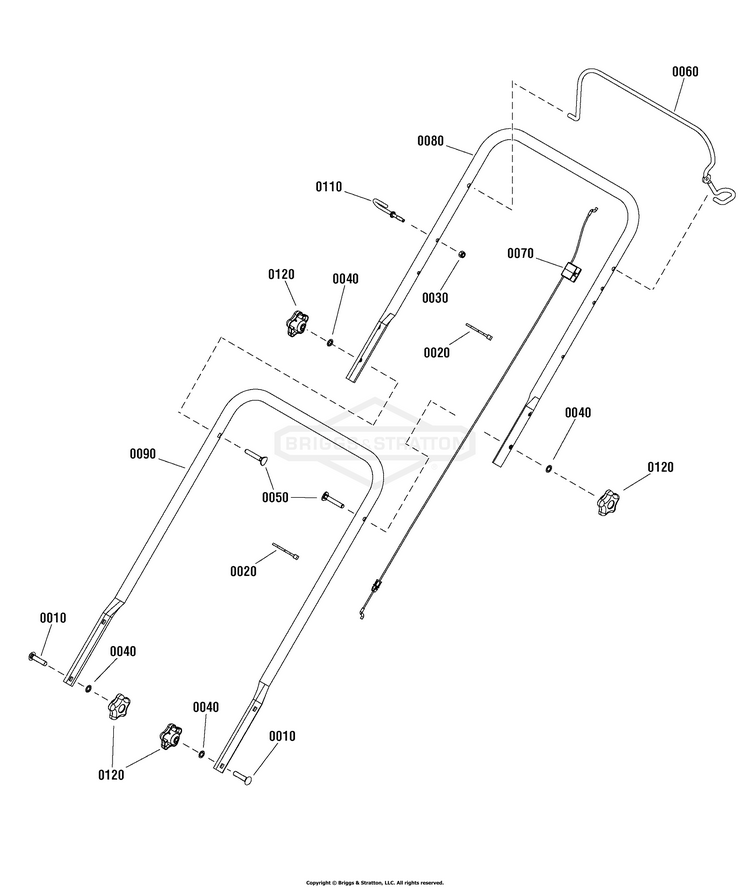

Handles Assembly (7502017)

...
...
0010
BOLT, 5/16-18X1.5 BS-703296
...
0020
WIRE TIE, 11 Inch Std Blk Nylon BS-7024649YP
...
0030
NUT, 1/4-20, NYLOCK BS-703232
...
0040
WASHER, 5/16 BS-703587
...
0050
BOLT, 5/16-18X2 BS-703059
...
0060
BAIL, OPC Push BS-7101675AYP
...
0070
CABLE, Bail, (45.00" overall length) BS-7101808YP
...
0080
HANDLE, Upper BS-7300705AMA
...
0090
HANDLE, Lower BS-7301013AYP
...
0110
ROPE GUIDE-UPPER BS-071530MA
...
0120
KNOB,HANDLE,5 PRONG BS-7105085YP
