7800879 Murray - EBTP22675HWEX, 22" 6.75GT Self-Propelled Walk Behind Mower (2012)

Model: 7800879

Save Part Not Listed?

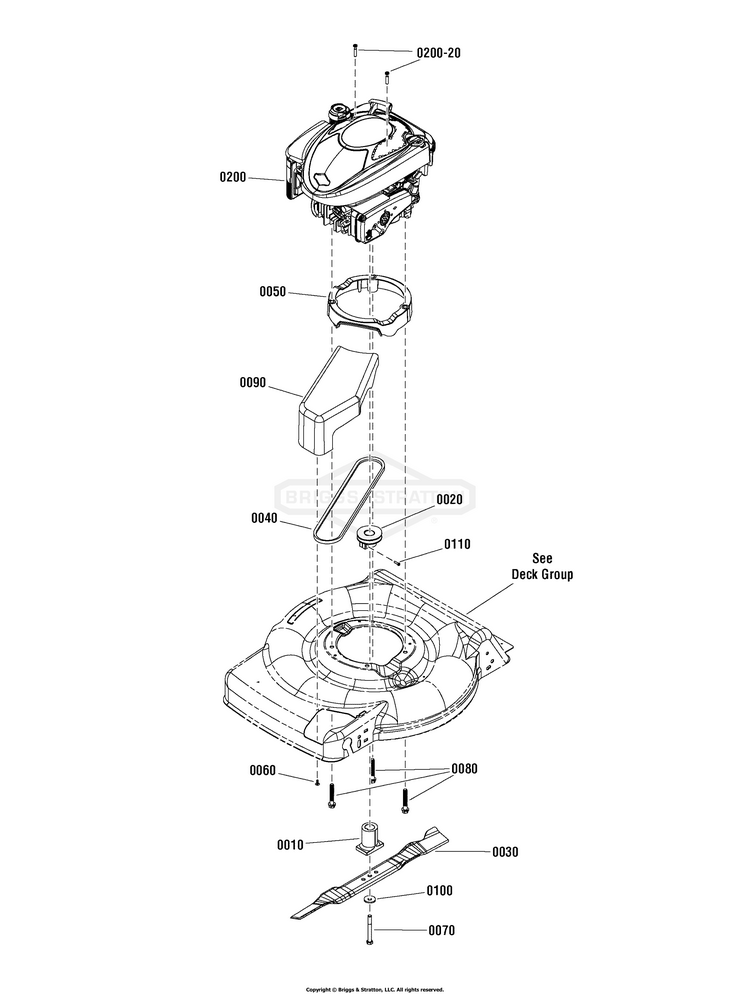

Engine Group (7501882_7502866)

0010

HUB, Blade, 22" Deck BS-7100740YP

0020

PULLEY, Engine, 22" Deck, Single Speed BS-7100763MA

0030

BLADE, 22", WALK MWR BS-7100851AYP

0040

BELT, Drive 22" WBM, SS (3L sect. 33.75 effective length) BS-7101193MA

0050

ASSEMBLY, Engine Spacer, 22 WBM, Propelled BS-7101449YP

0060

SCREW, 4.8X1.59X13 BS-703834

0070

BOLT, 3/8-24 x 3-1/4 Hex Head, GR 8 BS-01X144MA

0080

BOLT, 3/8-16 x 2-1/2" Hex Washer Face BS-025X11MA

0090

COVER, Belt, Plastic BS-1101596MA

0100

WASHER, .38" ID x 1.183 OD Bellville BS-1101989MA

0110

SCREW, #8-11 Poly Thread x .63, Pan Head Cross Recess BS-26X303MA

0200

* ENGINE, 6.75TP Briggs & Stratton (Engine Model: 126T02-7268-H1) BS-126T02-7268-H1

0200-20

SCREW, Pan HD Cross Recess, Tapping BS-691138
