7800878 Murray - EBTP22650E, 22" 6.50GT Self-Propelled Walk Behind Mower (2012)

Model: 7800878

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

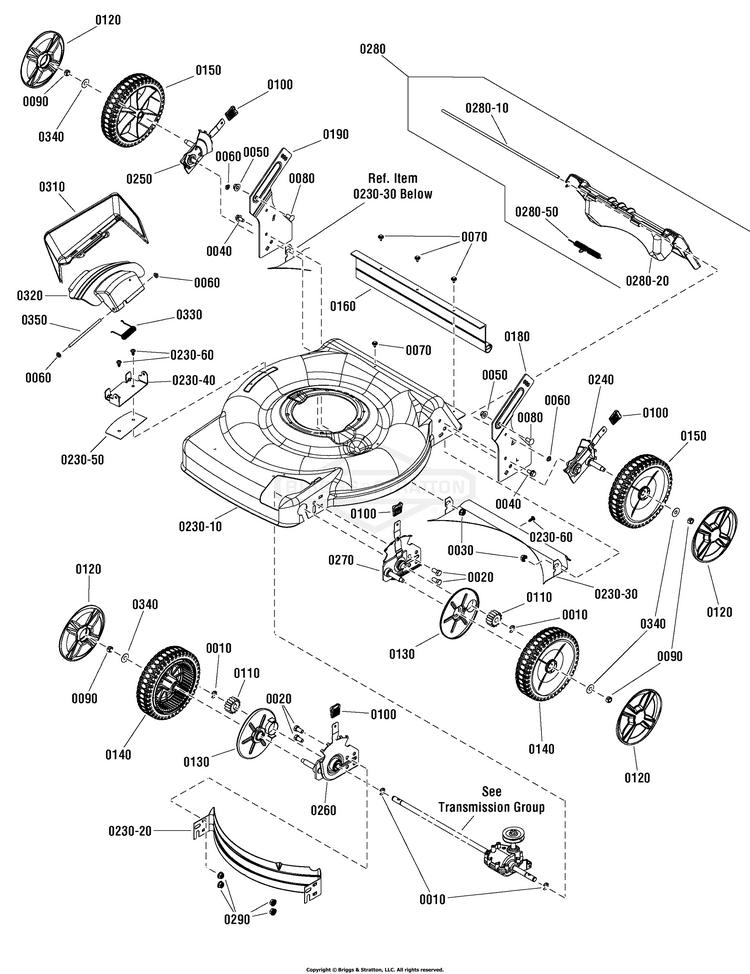

Deck Group (7501888)

...
...
0010
RETAINER, RING, 1/2 BS-703976
...
0020
BOLT, 3/8-16 X 3/4" G BS-5025013X6SM
...
0030
NUT, 5/16-18, GR5 BS-703409
...
0040
BOLT, 5/16-18X0.625 BS-703823
...
0050
NUT, 5/16-18 BS-704001
...
0060
PUSHNUT, CAP, 1/4 BS-704005
...
0070
HWST, 10-24X.50 SEMS BS-7091286YP
...
0080
BOLT, Round Head, Short Square Neck BS-703185
...
0090
NUT, 3/8-16 BS-703347
...
0100
GRIP, HT LATCH, BLACK BS-7103793YP
...
0110
GEAR, Pinion BS-7101207YP
...
0120
HUBCAP, 8"& 9" Wheel Spoked, P-391 St Yellow BS-7103539YP
...
0130
SHIELD, Dust BS-7101402YP
...
0140
WHEEL, Drive, 8 x 2 BS-7103500YP
...
0150
WHEEL, Idle, 8 x 2 BS-7103541YP
...
0160
GUARD, Rear, 22" Deck Mower BS-7103347YP
...
0180
BRACKET, Lower Handle, Left BS-7300668AYP
...
0190
BRACKET, Lower Handle, Right BS-7300669AYP
...
0230-10
DECK, 22" Walk, 3-N-1 BS-7300400ZMA
...
0230-20
BAFFLE, FRONT 22" BS-7300440BMYP
...
0230-30
BAFFLE, REAR, 22 DEC BS-7300854DYP
...
0230-40
BRACKET, Chute BS-7300855ZMA
...
0230-50
PLATE, Mulch BS-7300856ZMA
...
0230-60
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0240
ASSY,HOC,LT,22 WBM BS-7501055YP
...
0250
ASSY,HOC,RT,22 WBM BS-7501056YP
...
0260
ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Right Front BS-7501057YP
...
0270
ASSEMBLY, Height-Of-Cut, 22", Propelled, 7 Position, Left Front BS-7501058YP
...
0280
DOOR ASSEMBLY (Incl. Ref. Nos. 0280-10, 0280-20 & 0280-50) BS-7500416YP
...
0280-10
ROD, Pivot, Rear Door (Included with Ref. No. 0280) BS-7101070YP
...
0280-20
DOOR, Rear Discharge, 22" Walk Mower (Included with Ref. No. 0280) BS-7101243YP
...
0280-50
SPRING, Torsion, Rear Door, 22" Walk Mower (Included with Ref. No. 0280) BS-7101461YP
...
0290
NUT, 3/8-16 BS-703333
...
0310
SIDE CHUTE, Plastic, Black BS-1101097MA
...
0320
COVER, Mulch, Plastic, Black BS-1101098MA
...
0330
SPRING, Torsion, Chute BS-166X38MA
...
0340
WASHER, FLAT, .377X1 BS-703966
...
0350
ROD, Pivot BS-7101067YP
