7800825 Murray - JS38, 22" 7.25GT Self-Propelled FWD Walk Behind Mower (2012)

Model: 7800825

Save Part Not Listed?

Popular Parts

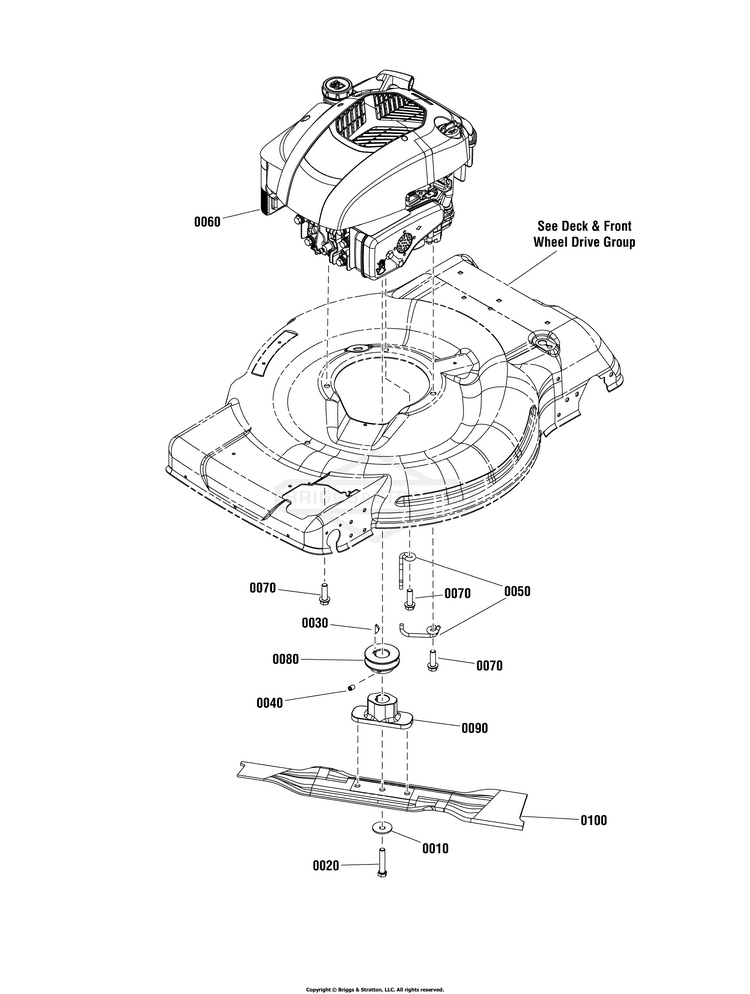

0010

WASHER, CONE BS-703963

0020

HHCS, 3/8F X2 GR5 BS-7090167SM

0030

KEY, Hi-Pro, HP-506 BS-7091214YP

0040

SET SCREW, 5/16-18 x 1/2", Hex Recess BS-7092086YP

0050

BELT GUIDE, Engine, Front Wheel Drive BS-7103517YP

0060

* ENGINE, B&S Quantum, 7.25 Gross Torque (Engine Model: 128M02-0423-F1) BS-128M02-0423-F1

0060

* ENGINE, B&S Quantum, 7.25 Gross Torque (Engine Model: 128M02-0130-F1) BS-128M02-0130-F1

0070

SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/4 BS-7900072YP

0080

** PULLEY, Engine BS-7105122YP

0090

** HUB, Blade, 22" Deere WBM BS-7104332YP

0100

BLADE, 22" WAVE BS-7104331AYP

Model: 1AHF08390

$16.00

In Stock

Replaced By :

Add To Cart Add To Cart

Save

View All Details
