7800809 Murray - JS46S, 22" 8.75GT Self Propelled Electric Start Walk Behind Mower (2011)

Model: 7800809

Save Part Not Listed?
product name

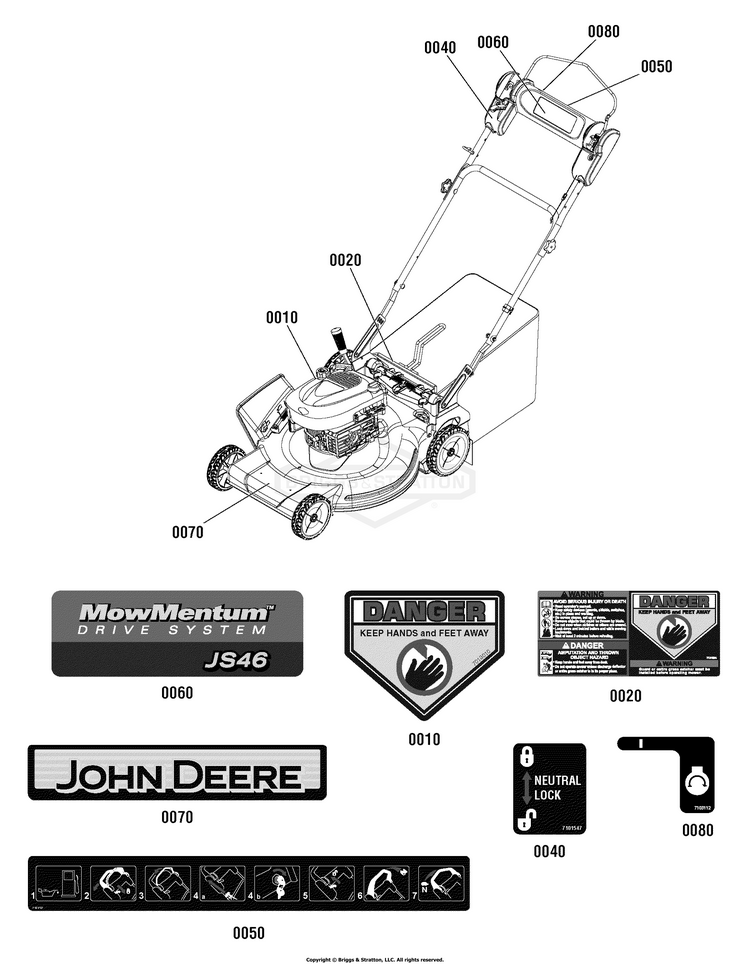

Decals Group (7502367)

...
...
0010
DECAL-DANGER, CUT FIN BS-7013010SM
...
0020
DECAL, Warning, Rear Discharge Door BS-7101394YP
...
0040
DECAL, Neutral Lock BS-7101547YP
...
0050
DECAL, Operation BS-7101737YP
...
0060
DECAL, JS46 MOWMENTUM BS-7103895YP
...
0070
DECAL, Front, John Deere JS36 / JS46 BS-7103961YP
...
0080
DECAL, Ignition Switch BS-7103112YP

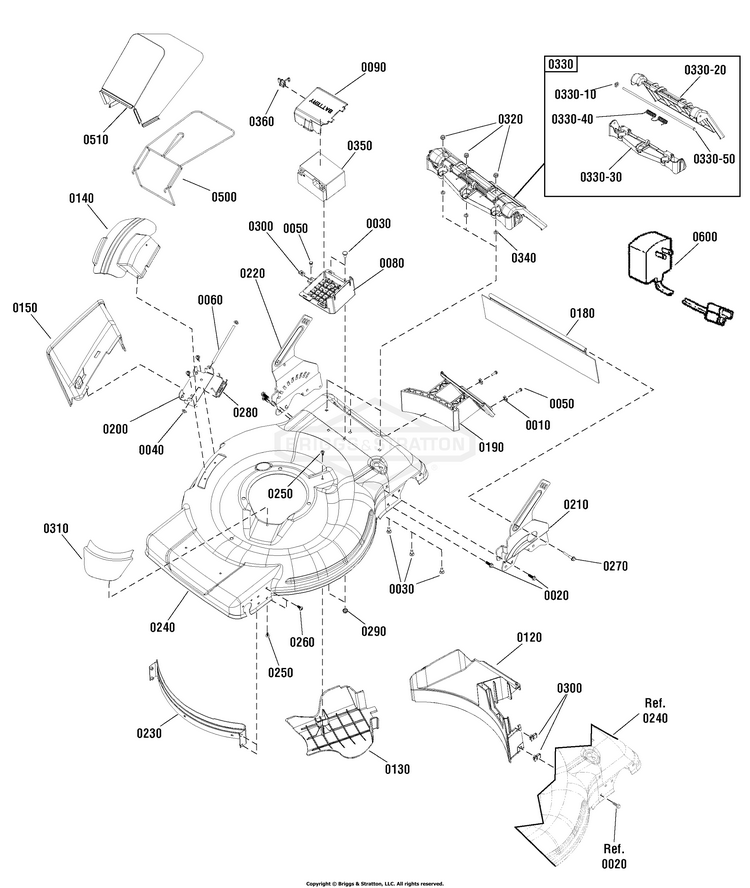

Deck Group (7501605)

...
...
0010
NUT, Retainer Speed, #10-24 BS-1960593SM
...
0020
CAPSCREW-HEX WSHR HD BS-1935450SM
...
0030
BOLT, 1/4-20X0.625 BS-703841
...
0040
PUSHNUT, CAP, 1/4 BS-704005
...
0050
SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5 BS-7091075SM
...
0060
ROD, Pivot BS-7101067YP
...
0080
BOTTOM, Battery Box BS-7102917YP
...
0090
TOP, Battery, With Charger BS-7104820YP
...
0120
BAFFLE, Rear, Rear Wheel Drive WBM BS-7103293YP
...
0130
COVER, Belt Drive, Rear BS-7104819YP
...
0140
COVER, Mulching BS-7103298YP
...
0150
CHUTE, Side Discharge BS-7103299YP
...
0180
GUARD, Rear BS-7103323YP
...
0190
PLUG, Mulching BS-7103453YP
...
0200
BRACKET, CHUTE BS-7300855BMYP
...
0210
BRACKET, Lower Handle, LH BS-7300885AYP
...
0220
BRACKET, Lower Handle, RH BS-7300915AYP
...
0230
BAFFLE, FRONT BS-7301020YP
...
0240
DECK, 22, RWD, ES BS-7301081FYP
...
0250
SCREW, 4.8X1.59X13 BS-703834
...
0260
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0270
BOLT, Drag Shield, 1/4 - 20 x 1-1/2 BS-7900073YP
...
0280
SPRING, Torsion BS-166X38MA
...
0290
NUT, 1/4-20, GR5 BS-703233
...
0300
NUT BS-705876
...
0310
SHIELD, Debris, Front BS-7103296YP
...
0320
NUT,25-20 HEX FLG CTR BS-15X143MA
...
0330
ASSEMBLY, Door, 22 WBM (Includes Ref. Nos. 0330-10, 0330-20, 0330-30, 0330-40 & 0330-50) BS-7501541YP
...
0330-10
PUSHNUT, CAP, 1/4 BS-704005
...
0330-30
HINGE, Door BS-7103292YP
...
0330-40
SPRING, Torsion, Rear Door BS-7103309YP
...
0330-50
ROD, Pivot, Rear Door BS-7103322YP
...
0340
BOLT, PUSHNUT 1/4 BS-703826
...
0350
BATTERY, UN2796 BS-7067012YP
...
0360
PLUG, Battery Charger BS-7104850YP
...
0500
BAG FRAME, RD BS-7103305AYP
...
0510
BAG, Grass BS-7103375YP
...
0600
CHARGER, Battery BS-7104765YP

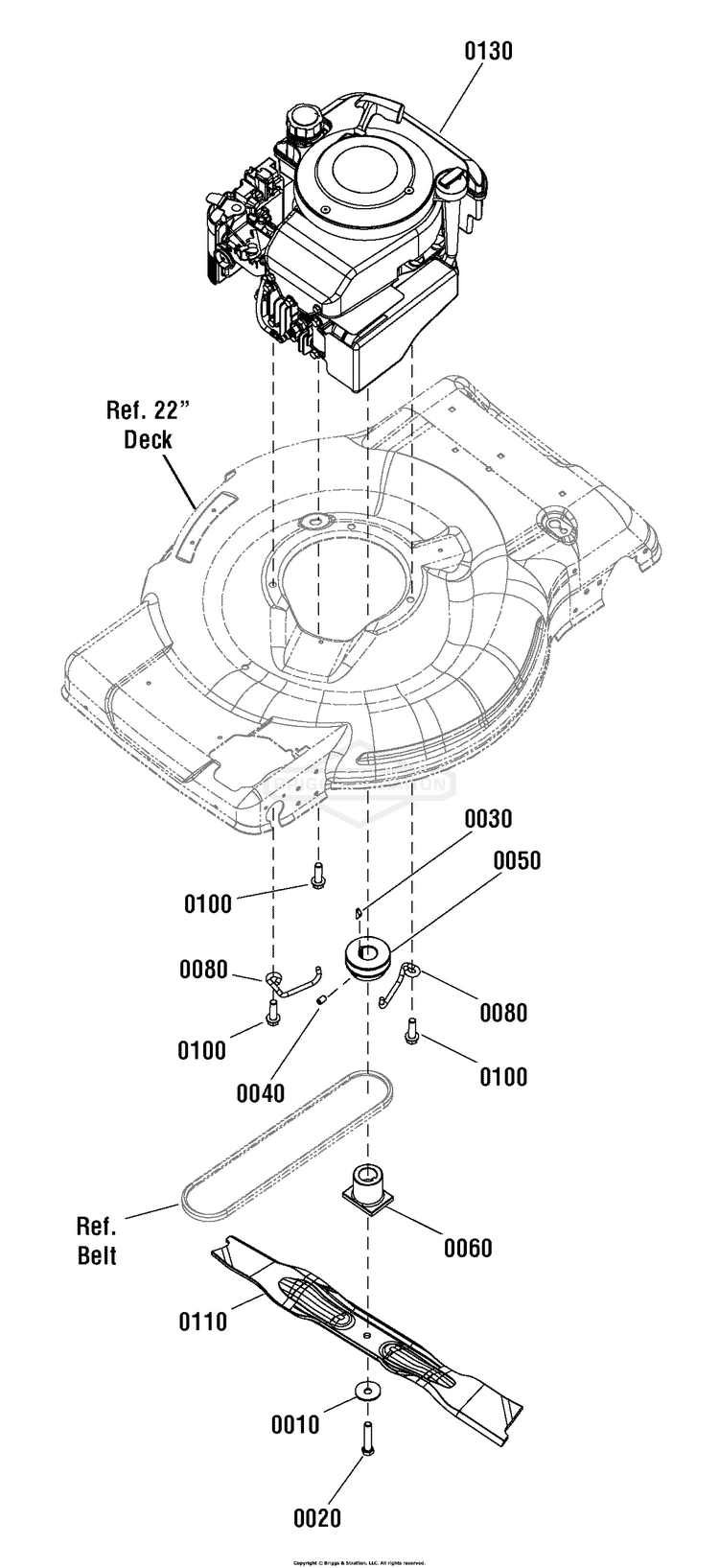

Engine Group (7501753)

...
...
0010
WASHER, CONE BS-703963
...
0020
HHCS, 3/8F X2 GR5 BS-7090167SM
...
0030
KEY, Hi-Pro, #605 BS-7091214YP
...
0040
SET SCREW, Hex Recess, 5/16-18 x 1/2 BS-7092086YP
...
0050
PULLEY, Engine BS-7100437YP
...
0060
HUB, Blade, 2 Position BS-7101414YP
...
0080
BELT GUIDE, Engine BS-7103517YP
...
0100
SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/4 BS-7900072YP
...
0110
BLADE, 22, Wave, Deere Steel Deck BS-7104179AYP
...
0130
* ENGINE, 875 Series (Engine Model: 12S975-0156-B1) BS-12S975-0156-B1

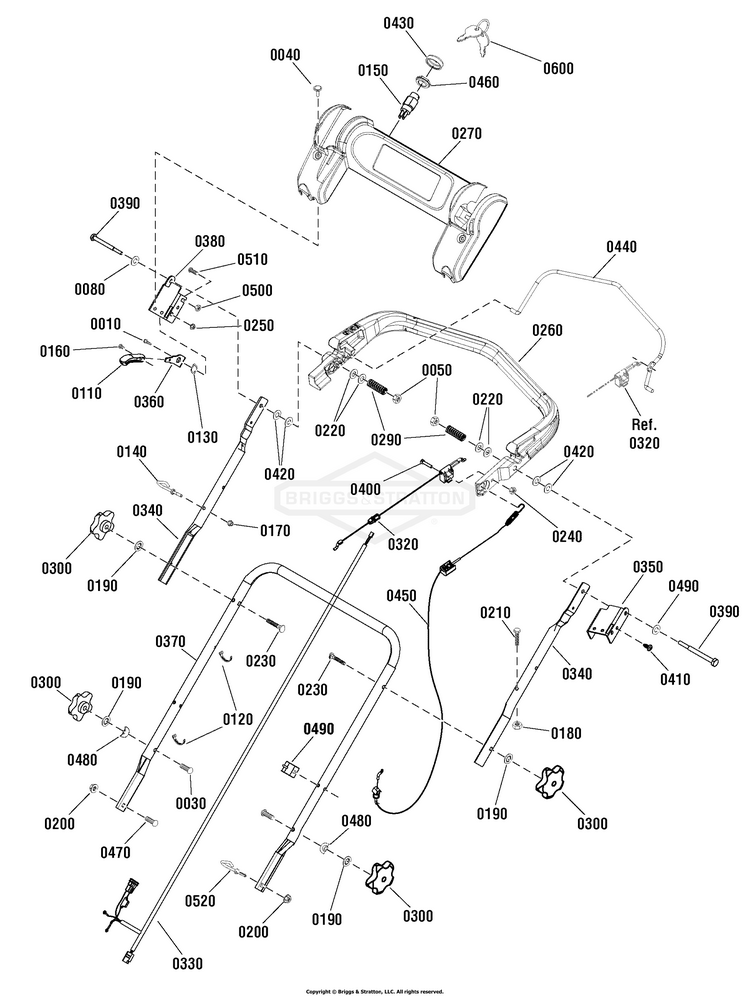

Handles Group (7501559)

...
...
0010
BOLT, Shoulder, 5/16-18 x 3/4, G5 BS-1716654SM
...
0030
BOLT, 5/16-18X1.5 BS-703296
...
0040
RIVET, Pop BS-1960382YP
...
0050
NUT BS-5025391FS
...
0080
WASHER, Shim BS-7015686SM
...
0110
LEVER, Throttle Control BS-7023655YP
...
0120
TIE, Wire BS-7024649YP
...
0130
WASHER, Wave BS-7026257MA
...
0140
GUIDE, Rope BS-7028488MA
...
0150
SWITCH, Key BS-690646
...
0160
RIVET, Plastic Snap BS-7071921YP
...
0170
NUT, 1/4-20, NYLOCK BS-703232
...
0180
NUT, 1/4-20 BS-703251
...
0190
WASHER, 5/16 BS-703587
...
0200
NUT, 5/16-18 BS-704001
...
0210
SCREW BS-703588
...
0220
FW, YZ BS-7900022YP
...
0230
BOLT, 5/16-18X2 BS-703059
...
0240
NUT, NYLOCK, 10-24 BS-703412
...
0250
NUT, 5/16-18, GR5 BS-703409
...
0260
HANDLE, Pivoting BS-7101239YP
...
0270
PANEL, Upper BS-7104759YP
...
0290
SPRING, Compression, .095 x .550 x 1.575 BS-7104703YP
...
0300
KNOB,HANDLE,5 PRONG BS-7105085YP
...
0320
CABLE, OPC BS-7105033YP
...
0330
HARNESS, Wiring BS-7104826YP
...
0340
HANDLE, Upper BS-7300435AYP
...
0350
BRACKET, Rotation Limit, LH BS-7301187AYP
...
0360
HANDLE, LOCK BS-7300526BMYP
...
0370
HANDLE, Lower BS-7301182AYP
...
0380
BRACKET, Rotation Limit, RH BS-7301186AYP
...
0390
BOLT, Shoulder, 5/16 x 2-1/2 BS-7900045YP
...
0400
SCREW, Hex Head Machine, #10-24 x 7/8 BS-7900080YP
...
0410
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0420
WASHER, FLAT, .377X1 BS-703966
...
0430
BEZEL BS-7023506SM
...
0440
BAIL, Pivoting Handle - 21 JD WBM BS-7101322AYP
...
0450
CABLE, Drive, VS, RWD BS-7103354YP
...
0460
NUT, Plastic, 5/8-32 BS-7104149YP
...
0470
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0480
WASHER BS-880615YP
...
0490
FITTING, Cable BS-7104614YP
...
0500
NUT,25-20 HEX FLG CTR BS-15X143MA
...
0510
BOLT, 1/4-20X0.625 BS-703841
...
0520
GUIDE, Cable BS-7104761YP
...
0600
KEYS, Set of 2 BS-7013338YP

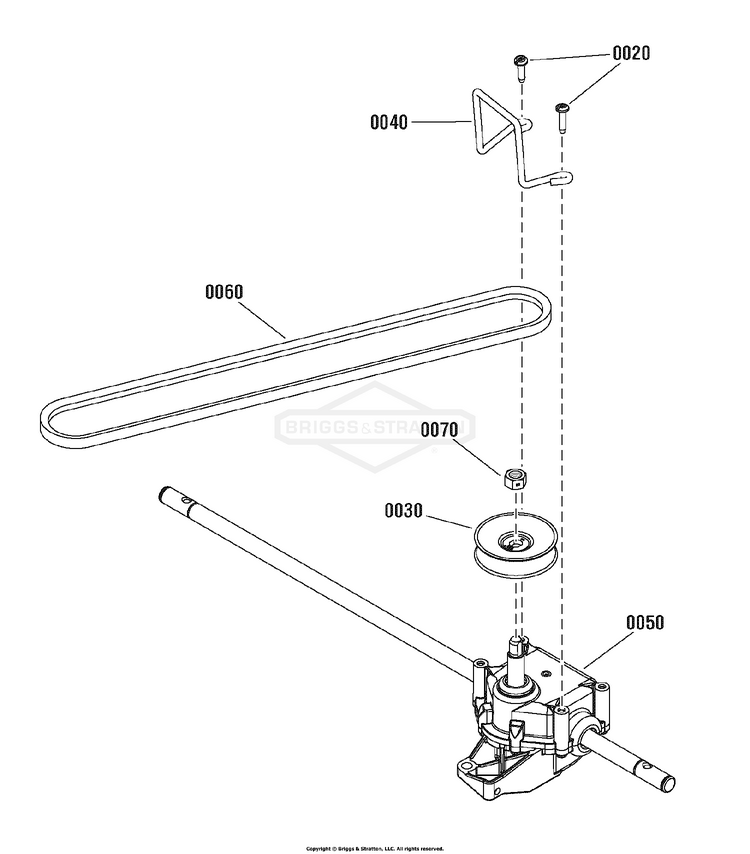

Transmission Group (7501602)

...
...
0020
SCREW, Pan Head Combo Taptite, #10-16 x 3/4 BS-7091195SM
...
0030
PULLEY, Transmission, Var Speed BS-7100240YP
...
0040
BELT GUIDE, Transmission BS-7100863YP
...
0050
TRANSMISSION, VS, RWD BS-7105127YP
...
0060
BELT, 3L, Traction Drive, 22 WBM, RWD BS-7103364YP
...
0070
NUT, 3/8-16 BS-703347

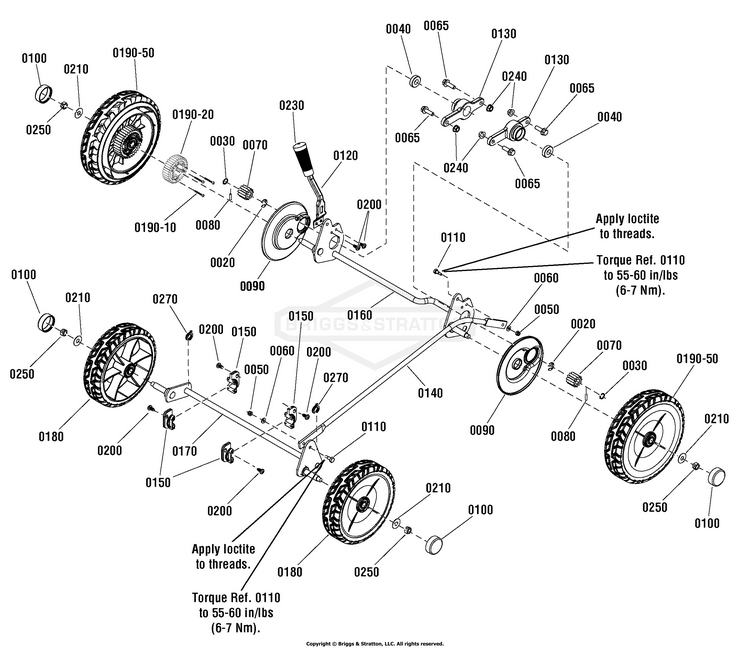

Wheels Group (7501609)

...
...
0020
RETAINER, RING, 1/2 BS-703976
...
0030
RING, Retaining BS-7027999YP
...
0040
BEARING, BALL, AXLE BS-7078243YP
...
0050
NUT, NYLOCK, 10-24 BS-703412
...
0060
WASHER, Flat, 1/4 BS-7091552SM
...
0065
HFLB, 5/16C X1 GR5 YZ BS-7091591SM
...
0070
GEAR, Pinion BS-7100820YP
...
0080
PIN, Axle BS-7100861YP
...
0090
SHIELD, Dust BS-7101367YP
...
0100
HUBCAP, 1.70 Dia BS-7101391YP
...
0110
BOLT, Shoulder, 1/4 x 3/8 BS-7101774YP
...
0120
LEVER, Spring, HOC BS-7103289YP
...
0130
HOLDER, Bearing BS-7103290YP
...
0140
ROD, Lifter Link BS-7103306FYP
...
0150
BUSHING, Bearing, RWD BS-7104518YP
...
0160
CROSSBAR, Rear BS-7400259YP
...
0170
AXLE, Front BS-7400306YP
...
0180
WHEEL ASSEMBLY, 8 x 2 Idle BS-7500544YP
...
0190-10
SCREW, Hex Washer Self-Tap, Hi-Lo, #8 x 1-1/4 (1 to 3 per wheel as required.) BS-7091196SM
...
0190-20
GEAR, External Wheel BS-7100914YP
...
0190-50
WHEEL ASSEMBLY, With Bearing, 9" BS-7500646YP
...
0200
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0210
WASHER, FLAT, .377X1 BS-703966
...
0230
GRIP, HOC BS-7103806YP
...
0240
NUT, 5/16-18, GR5 BS-703409
...
0250
NUT, 3/8-16 BS-703347
...
0270
SPACER, Shaft, 1/2 BS-7104525YP
