7800807 Murray - JS26, 22" 7.0GT Self Propelled FWD Walk Behind Mower (2011)

Model: 7800807

Save Part Not Listed?
product name

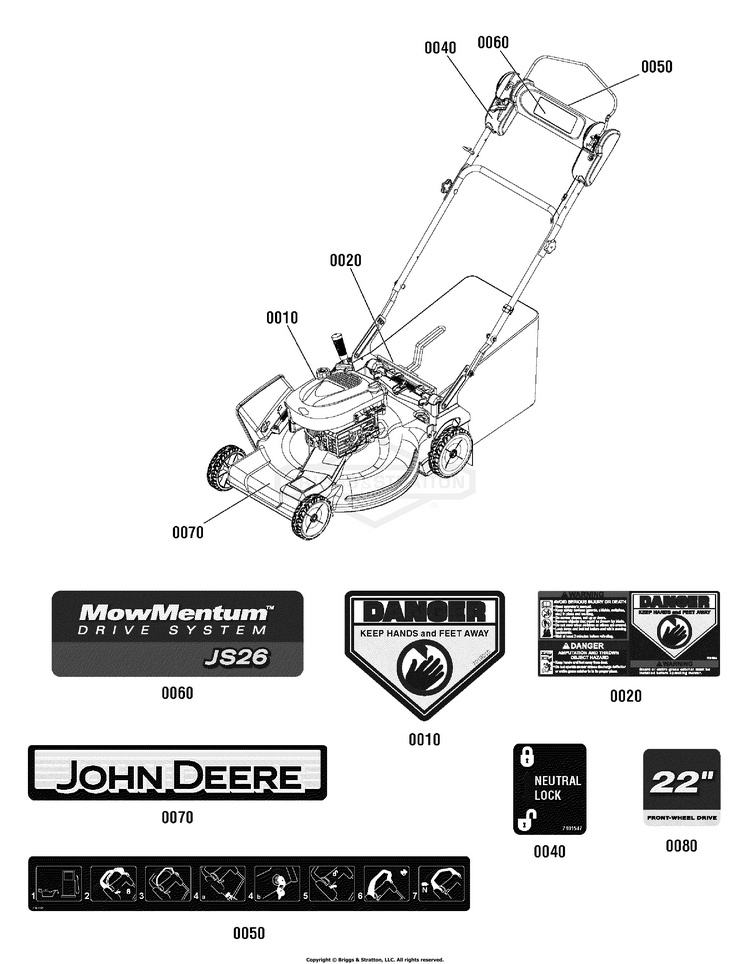

Decals Group (7502363)

...
...
0010
DECAL-DANGER, CUT FIN BS-7013010SM
...
0020
DECAL, Warning, Rear Discharge Door BS-7101394YP
...
0040
DECAL, Neutral Lock BS-7101547YP
...
0050
DECAL, Operation BS-7101737YP
...
0060
DECAL, JS26 MOWMENTUM BS-7103893YP
...
0070
DECAL, Front, John Deere JS26 BS-7103960YP
...
0080
DECAL,FRONT WHEEL BS-7103962YP

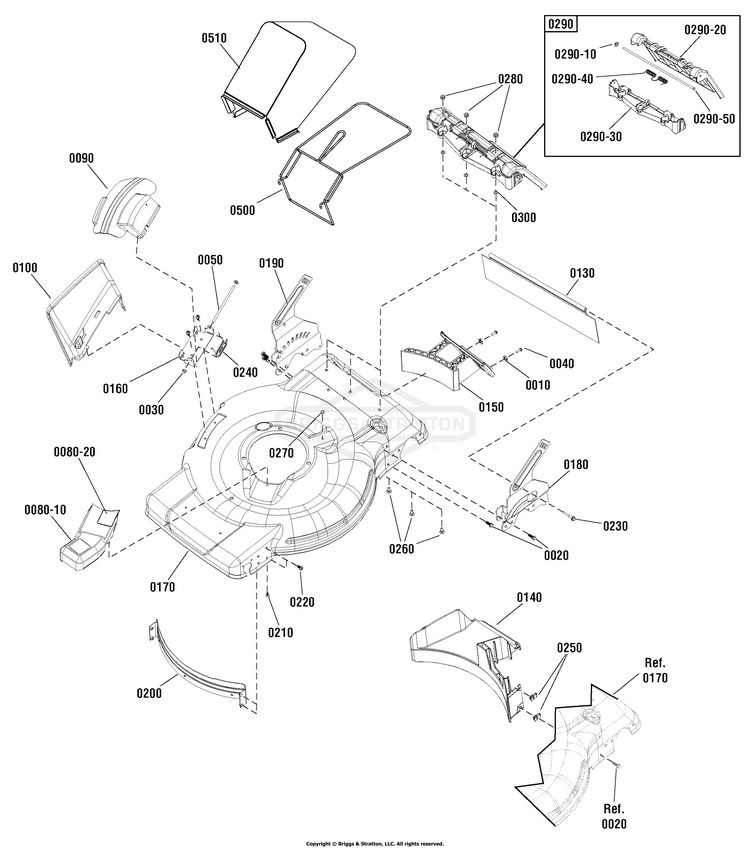

Deck Group (7501597)

...
...
0010
NUT, Retainer Speed, #10-24 BS-1960593SM
...
0020
CAPSCREW-HEX WSHR HD BS-1935450SM
...
0030
PUSHNUT, CAP, 1/4 BS-704005
...
0040
SCREW, Hex Washer Self Tap, #10C x 5/8, GR 5 BS-7091075SM
...
0050
ROD, Pivot BS-7101067YP
...
0080-10
COVER, Belt Drive, Front BS-7103297YP
...
0080-20
PATCH, Heat, Belt Cover BS-7104172YP
...
0090
COVER, Mulching BS-7103298YP
...
0100
CHUTE, Side Discharge BS-7103299YP
...
0130
GUARD, Rear BS-7103323YP
...
0140
BAFFLE, Rear, Front Wheel Drive WBM BS-7103452YP
...
0150
PLUG, Mulching BS-7103453YP
...
0160
BRACKET, CHUTE BS-7300855BMYP
...
0170
DECK, 22, FWD BS-7300882FYP
...
0180
BRACKET, Lower Handle, LH BS-7300885AYP
...
0190
BRACKET, Lower Handle, RH BS-7300915AYP
...
0200
BAFFLE, FRONT BS-7301020YP
...
0210
SCREW, 4.8X1.59X13 BS-703834
...
0220
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0230
BOLT, Drag Shield, 1/4 - 20 x 1-1/2 BS-7900073YP
...
0240
SPRING, Torsion BS-166X38MA
...
0250
NUT BS-705876
...
0260
BOLT, 1/4-20X0.625 BS-703841
...
0270
PLUG, Panel BS-0193X1MA
...
0280
NUT,25-20 HEX FLG CTR BS-15X143MA
...
0290
ASSEMBLY, Door, 22 WBM (Includes Ref. Nos. 0290-10, 0290-20, 0290-30, 0290-40 & 0290-50) BS-7501541YP
...
0290-10
PUSHNUT, CAP, 1/4 BS-704005
...
0290-30
HINGE, Door BS-7103292YP
...
0290-40
SPRING, Torsion, Rear Door BS-7103309YP
...
0290-50
ROD, Pivot, Rear Door BS-7103322YP
...
0300
BOLT, PUSHNUT 1/4 BS-703826
...
0500
BAG FRAME, RD BS-7103305AYP
...
0510
BAG, Grass, 22 Rear Discharge BS-7103375YP

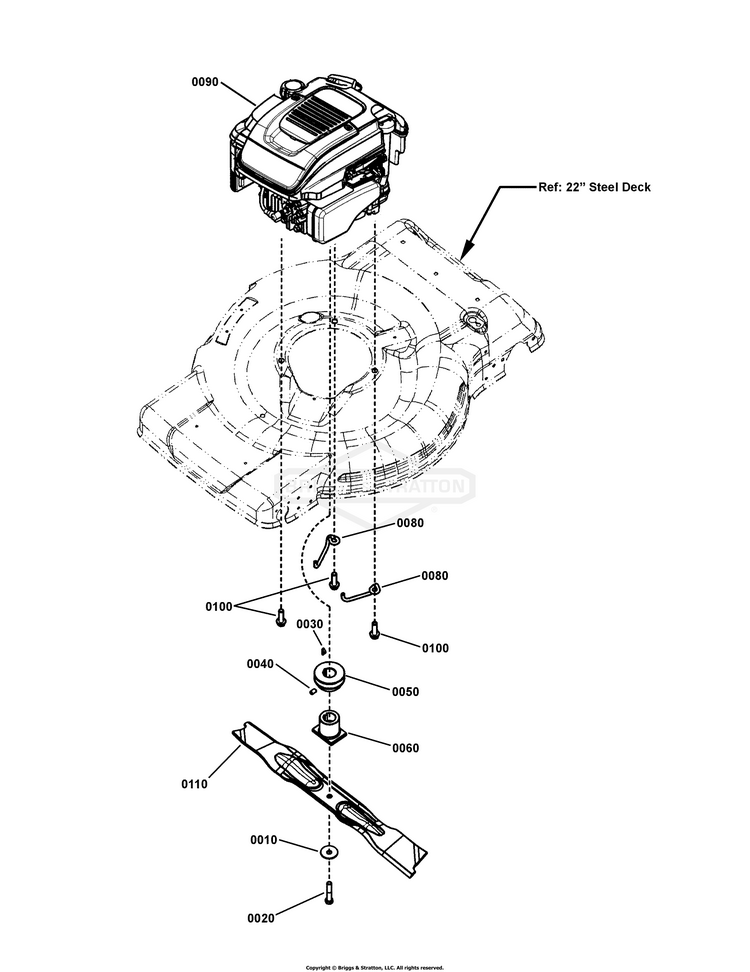

Engine Group (7501747)

...
...
0010
WASHER, CONE BS-703963
...
0020
HHCS, 3/8F X2 GR5 BS-7090167SM
...
0030
KEY, Hi-Pro, #605 BS-7091214YP
...
0040
SET SCREW, Hex Recess, 5/16-18 x 1/2 BS-7092086YP
...
0050
PULLEY, Engine BS-7100437YP
...
0060
HUB, Blade, 2 Position BS-7101414YP
...
0080
BELT GUIDE, Engine BS-7103517YP
...
0090
* ENGINE, 700 Series Quantum (Engine Model: 128T02-0119-B1) BS-128T02-0119-B1
...
0100
SCREW, Hex Washer Self Tap, 3/8-16 x 1-1/4 BS-7900072YP
...
0110
BLADE, 22, Wave, Deere Steel Deck BS-7104179AYP

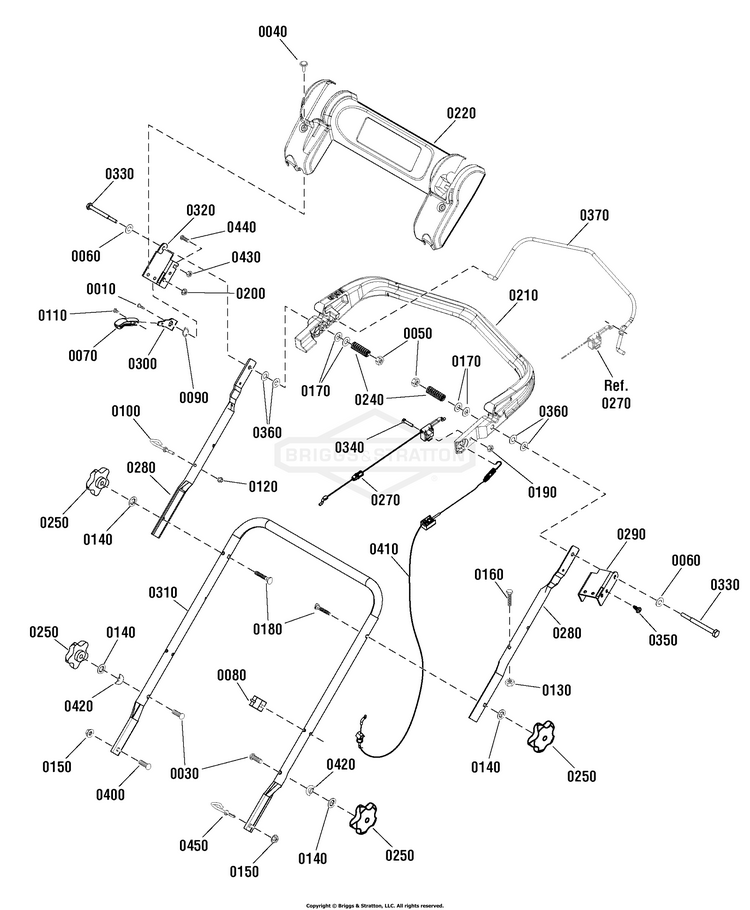

Handles Group (7501542)

...
...
0010
BOLT, Shoulder, 5/16-18 x 3/4, G5 BS-1716654SM
...
0030
BOLT, 5/16-18X1.5 BS-703296
...
0040
RIVET, Pop BS-1960382YP
...
0050
NUT BS-5025391FS
...
0060
WASHER, Shim BS-7015686SM
...
0070
LEVER, Throttle Control BS-7023655YP
...
0080
FITTING, Cable BS-7104614YP
...
0090
WASHER, Wave BS-7026257MA
...
0100
GUIDE, Rope BS-7028488MA
...
0110
RIVET, Plastic Snap BS-7071921YP
...
0120
NUT, 1/4-20, NYLOCK BS-703232
...
0130
NUT, 1/4-20 BS-703251
...
0140
WASHER, 5/16 BS-703587
...
0150
NUT, 5/16-18 BS-704001
...
0160
SCREW BS-703588
...
0170
FW, YZ BS-7900022YP
...
0180
BOLT, 5/16-18X2 BS-703059
...
0190
NUT, NYLOCK, 10-24 BS-703412
...
0200
NUT, 5/16-18, GR5 BS-703409
...
0210
HANDLE, Pivoting BS-7101239YP
...
0220
PANEL, Upper BS-7104759YP
...
0240
SPRING, Compression, .095 x .550 x 1.575 BS-7104703YP
...
0250
KNOB,HANDLE,5 PRONG BS-7105085YP
...
0270
CABLE, OPC BS-7105033YP
...
0280
HANDLE, Upper BS-7300435AYP
...
0290
BRACKET, Rotation Limit, LH BS-7301187AYP
...
0300
HANDLE, LOCK BS-7300526BMYP
...
0310
HANDLE, Lower BS-7301182AYP
...
0320
BRACKET, Rotation Limit, RH BS-7301186AYP
...
0330
BOLT, Shoulder, 5/16 x 2-1/2 BS-7900045YP
...
0340
SCREW, Hex Head Machine, #10-24 x 7/8 BS-7900080YP
...
0350
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0360
WASHER, FLAT, .377X1 BS-703966
...
0370
BAIL, Pivoting Handle - 21 JD WBM BS-7101322AYP
...
0400
BOLT, 5/16-18 X 3/4", BS-5025145X6SM
...
0410
CABLE, Drive, VS, FWD BS-7103990YP
...
0420
WASHER BS-880615YP
...
0430
NUT,25-20 HEX FLG CTR BS-15X143MA
...
0440
BOLT, 1/4-20X0.625 BS-703841
...
0450
GUIDE, Cable BS-7104761YP

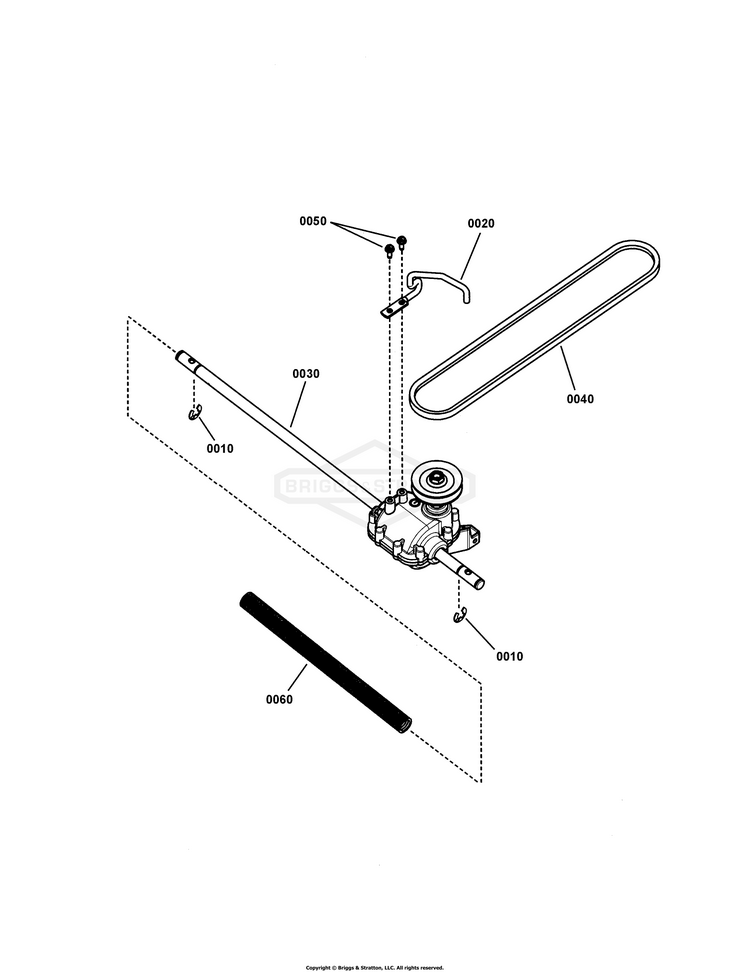

Transmission Group (7501596)

...
...
0010
RETAINER, RING, 1/2 BS-703976
...
0020
GUIDE, Belt, FWD BS-7103304YP
...
0030
TRANSMISSION, VS, FWD BS-7103311YP
...
0040
BELT, 3L, Traction Drive, 22" WBM, FWD BS-7103362YP
...
0050
SCREW, Plastite, #10-14 BS-7900055YP
...
0060
SHIELD, Axle BS-043649MA

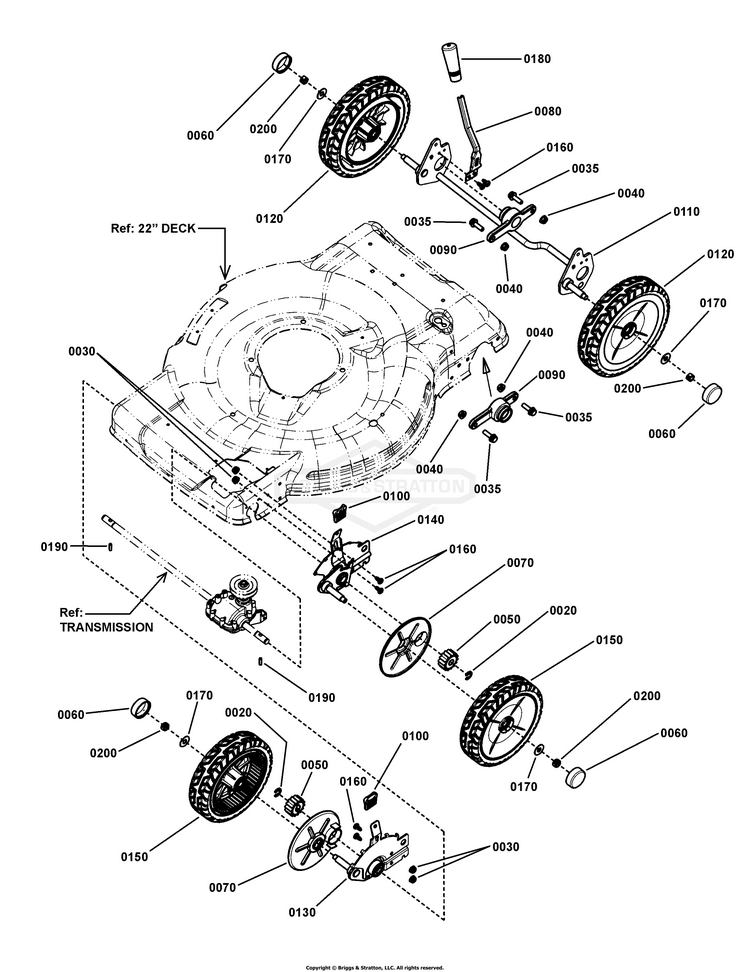

Wheels Group (7501592)

...
...
0020
RETAINER, RING, 1/2 BS-703976
...
0030
NUT, 1/4-20, GR5 BS-703233
...
0035
HFLB, 5/16C X1 GR5 YZ BS-7091591SM
...
0040
NUT, 5/16-18, GR5 BS-703409
...
0050
GEAR, Pinion, FWD BS-7101207YP
...
0060
HUBCAP, 1.70 Dia, Yellow BS-7101391YP
...
0070
SHIELD, Dust BS-7101402YP
...
0080
LEVER, Spring, HOC BS-7103289YP
...
0090
HOLDER, Bearing, RWD BS-7103290YP
...
0100
GRIP, HT LATCH, BLACK BS-7103793YP
...
0110
CROSSBAR, Rear, RWD BS-7400259YP
...
0120
WHEEL ASSEMBLY, With Bearing, 9" BS-7500646YP
...
0130
ASSEMBLY, HOC, RF BS-7600104YP
...
0140
ASSEMBLY, HOC, LF BS-7600105YP
...
0150
WHEEL ASSEMBLY, Drive, 8 x 2 (Includes Ref. 0150-10) BS-7501540YP
...
0150-10
BALL BEARING, .50 ID (Not Illustrated) BS-071579MA
...
0160
SCREW, 1/4-20 X .550, T-30 Pan Head Torx, Self-Tapping, Zinc/Clear BS-703961
...
0170
WASHER, FLAT, .377X1 BS-703966
...
0180
GRIP, Height Adjust BS-671297MA
...
0190
PIN, Drive BS-7101270YP
...
0200
NUT, 3/8-16 BS-703347
