7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

Popular Parts

Popular Parts

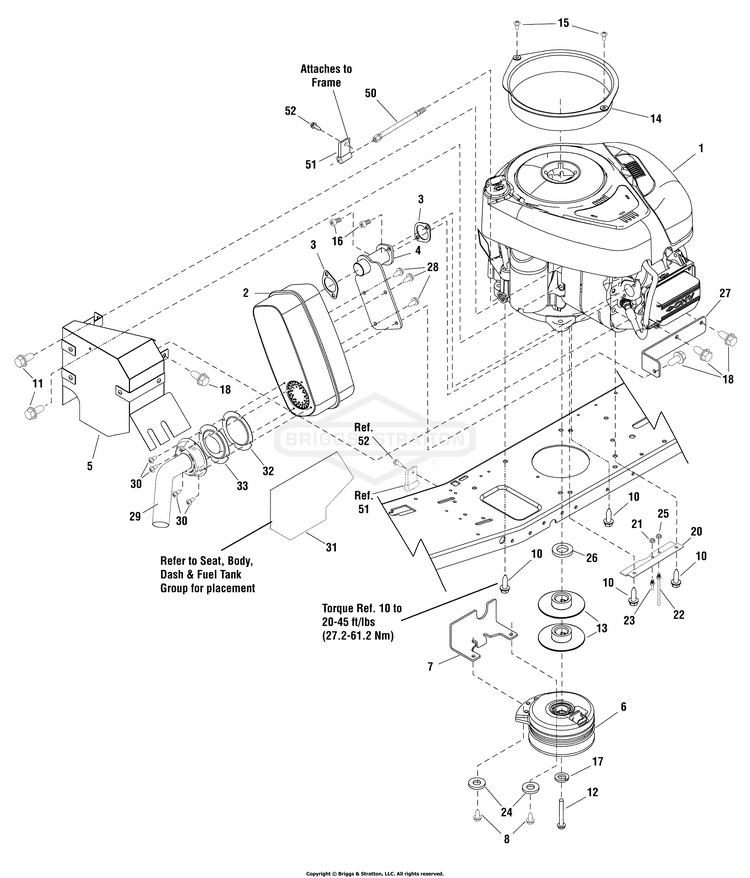

Engine Group - 17.5HP (885297)

...
...
1
* ENGINE, 17.5HP Briggs & Stratton BS-31G777-0155-B1
...
-
TIE, Strap, 5.38 Long BS-032618MA
...
2
MUFFLER BS-885271YP
...
3
GASKET, Exhaust BS-692236
...
4
ADAPTOR, Muffler BS-885265YP
...
5
HEAT SHIELD ASSEMBLY BS-885260YP
...
6
ELECTRIC CLUTCH BS-885107YP
...
7
TORQUE STRAP, Electric PTO BS-885056AYP
...
8
CAPSCREW, 5/16-18 x 3/4 BS-26X249MA
...
10
SCREW-HEX WSHR HD TAP BS-2828635SM
...
11
SCREW, Hex Head, 5/16-18 x 5/8 BS-06X104MA
...
12
CAPSCREW, Hex, 7/16-20 x 2-1/2 BS-1960370SM
...
13
STACK PULLEY BS-885161YP
...
14
BAFFLE, Engine BS-885063YP
...
15
SCREW, Shoulder, #10-24 BS-009X47MA
...
16
SCREW, Torx Head, 5/16-18 x 5/8 BS-06X103MA
...
17
LCKWSHR,7/16,SPLIT RE BS-704007
...
18
SCREW, Thread Forming, 1/4-20 x 1 BS-0025X3MA
...
20
PLATE, Belt Guide BS-885041AYP
...
21
NUT, 5/16-18, GR5 BS-703409
...
22
GUIDE, Belt Long BS-885078AYP
...
23
GUIDE, Belt Short BS-885077YP
...
24
WASHER, FLAT 5/16 BS-704015
...
25
NUT .25-20 FLANGELOCK BS-015X89MA
...
26
WASHER, 1.75 x 1.04 x 0.15 BS-885243YP
...
27
BRACKET, Muffler Support BS-885268YP
...
28
SCREW, HEX, 1/4-20X.5 BS-704130
...
29
WELD EXHAUST TUBE AS BS-885266BMYP
...
30
SCREW, 10-24 x 1/2 BS-26X270MA
...
31
HEAT SHIELD BS-885278YP
...
32
SCREEN, Spark Arrester, Flat BS-227477YP
...
33
SCREEN, Spark Arrester, Formed BS-227478YP
...
50
HOSE-OIL DRAIN .375ID BS-1726498SM
...
51
CLIP, Harness BS-7900020SM
...
52
SCREW.25-20 S-T BS-26X263MA
