7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

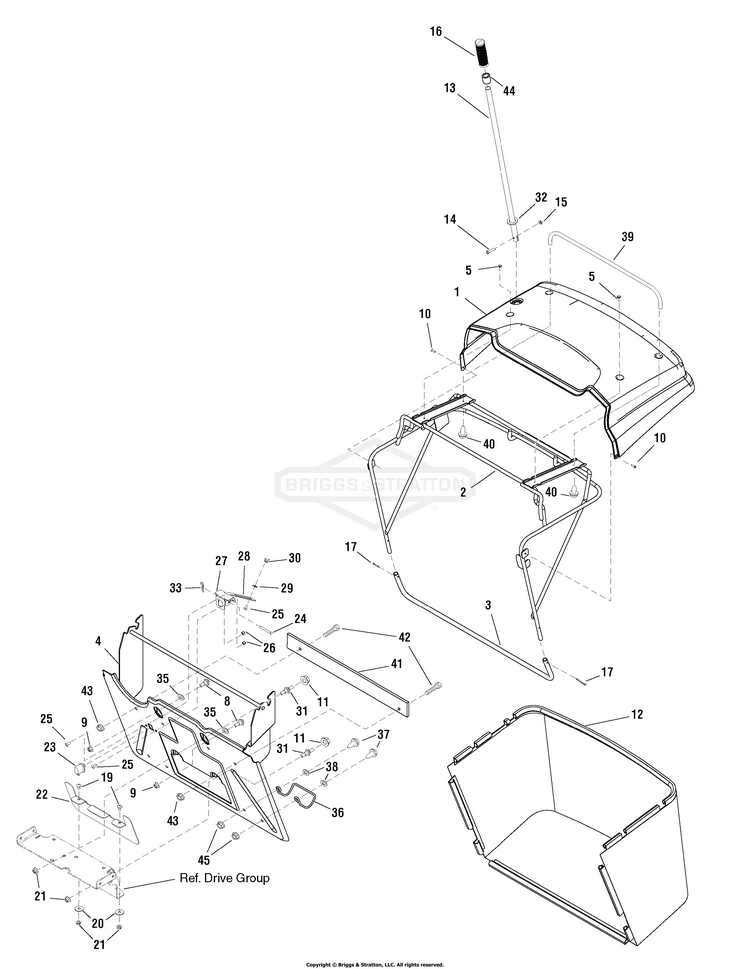

Bagger Group (885316)

...
...
1
BAGGER COVER BS-885008YP
...
2
BAG FRAME ASSY BS-885247AYP
...
3
BAG FRAME, Lower BS-885099AYP
...
4
REAR PLATE ASSY BS-885336BMYP
...
5
SCREW, Self Tap BS-885131YP
...
8
BOLT, 3/8-16 X 1-1/4" BS-5025013X10SM
...
9
NUT, 1/4-20, GR5 BS-703233
...
10
SCREW, Flat Head 10-3/4 BS-885129YP
...
11
NUT, 5/16-18, GR5 BS-703409
...
12
BAG BS-885357YP
...
13
HANDLE BAGGER BS-885244BMYP
...
14
BOLT, 1/4-20 X 1-1/4" BS-5025010X10SM
...
15
NUT .25-20 FLANGELOCK BS-015X89MA
...
16
GRIP BS-1401176MA
...
17
PIN, COTTER, 3/32X.75 BS-703312
...
19
BOLT BS-703159
...
20
WASHER, 0.406 x 1 1/4 BS-17X212MA
...
21
NUT, HEX FLNG,5/16-18 BS-704067
...
22
BAFFLE, Rubber BS-1401242MA
...
23
SWITCH, Bag Full BS-1720411SM
...
24
PIN BS-1960607SM
...
25
BOLT, 1/4-20X0.625 BS-703841
...
26
NUT, 1/4-20, NYLOCK BS-703232
...
27
SUPPORT ACTUATOR BS-885234BMYP
...
28
PIVOT ACTUATOR BS-885235BMYP
...
29
WASHER, .26 X.75 X 16GA BS-017X38MA
...
30
WINGNUT BS-014X79MA
...
31
SCREW, Self Tapping, 5/16-18 x 1.13 BS-885065YP
...
32
WASHER, Flat, 3/4 x 1-7/8 BS-17X195MA
...
33
PIN, COTTER,1/16X1.31 BS-704039
...
35
WASHER, FLAT BS-710083MA
...
36
LATCH, Spring BS-690402MA
...
37
SCREW, 5/16-18 BS-703354
...
38
WASHER BS-703326
...
39
HANDLE, BAGGER BS-885251BMYP
...
40
SCREW, 1/4-20X0.625 BS-703054
...
41
BRACE BS-885276YP
...
42
HHCS,3/8-16X1.250,GR8 BS-703969
...
43
NUT, 3/8-16 BS-703333
...
44
HEIGHT ADJUSTER BS-885355YP
...
45
NUT, 5/16-18, GR5 BS-703409
...
--
SERVICE KIT, Bag Frame Assembly (Includes Ref Nos. 2, 13, 39, 40) BS-885284YP
...
--
SERVICE KIT, Rear Plate Assembly (Includes Ref Nos. 4, 11, 35, 36, 37, 38) BS-885285YP
