7800783 Murray - EMR175330H, 17.5HP 33" Premium Rider (2011)

Model: 7800783

Back To Assemblies

Save Part Not Listed?
product name

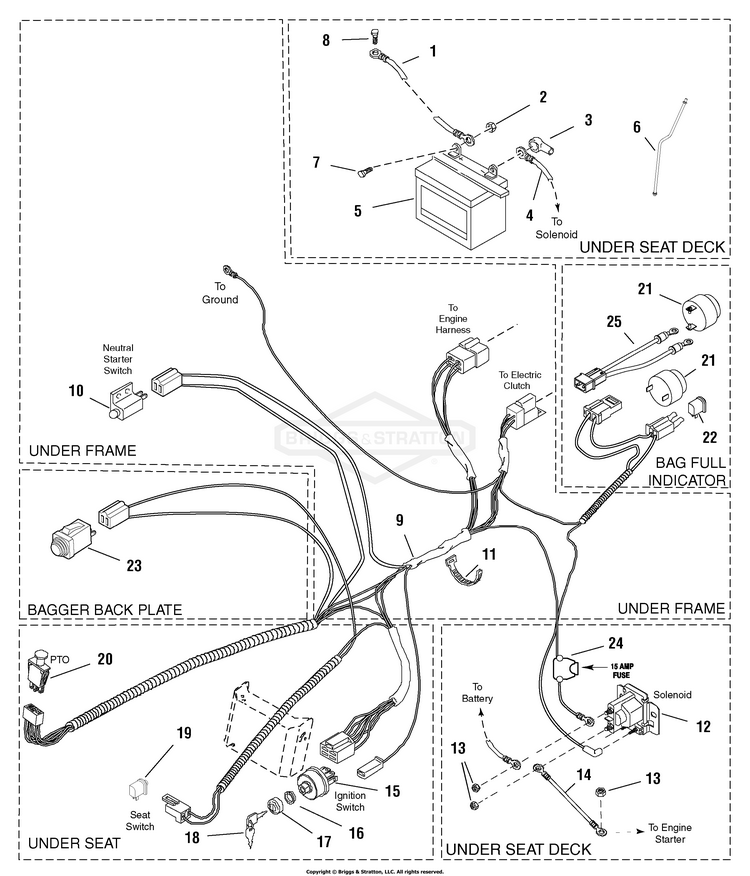

Electrical Group (885297b)

...
...
1
BATTERY CABLE, Negative BS-885279YP
...
2
WINGNUT, 1/4-20 BS-014X79MA
...
3
BOOT, POSITIVE TERMIN BS-690604MA
...
4
BATTERY CABLE, Positive BS-024X24MA
...
6
ROD, Battery BS-885095YP
...
7
BOLT, 1/4-20X0.625 BS-703841
...
8
SCREW, 1/4-14 x 3/8 BS-26X229MA
...
9
WIRE HARNESS BS-885113YP
...
10
SWITCH, Limit BS-1001575MA
...
11
TIE STRAP BS-032618MA
...
12
SOLENOID, 3 Pole BS-7769224MA
...
13
NUT, 1/4-20, NYLOCK BS-703232
...
14
CABLE, Battery 8GA 18.00L - Red BS-024X31MA
...
15
SWITCH, Ignition BS-092556MA
...
16
SET, Washer/Nut BS-847144
...
17
CAP, Switch BS-847150
...
18
KEY-IGNITION INDAK BS-1717163SM
...
19
SWITCH, BAG FULL BS-1720411SM
...
20
SWITCH-PTO PUSH BS-1722887SM
...
21
BUZZER, Bag Full Indicator BS-1720117SM
...
22
SWITCH, BAG FULL BS-1720411SM
...
23
BAGGER SWITCH BS-1001845MA
...
24
FUSE, 15 Amp BS-302031MA
...
25
HARNESS, Buzzer Connector BS-885248YP
...
26
SERVICE KIT, Buzzer and Harness (Includes Ref Nos. 21 and 25) BS-885283YP
